56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

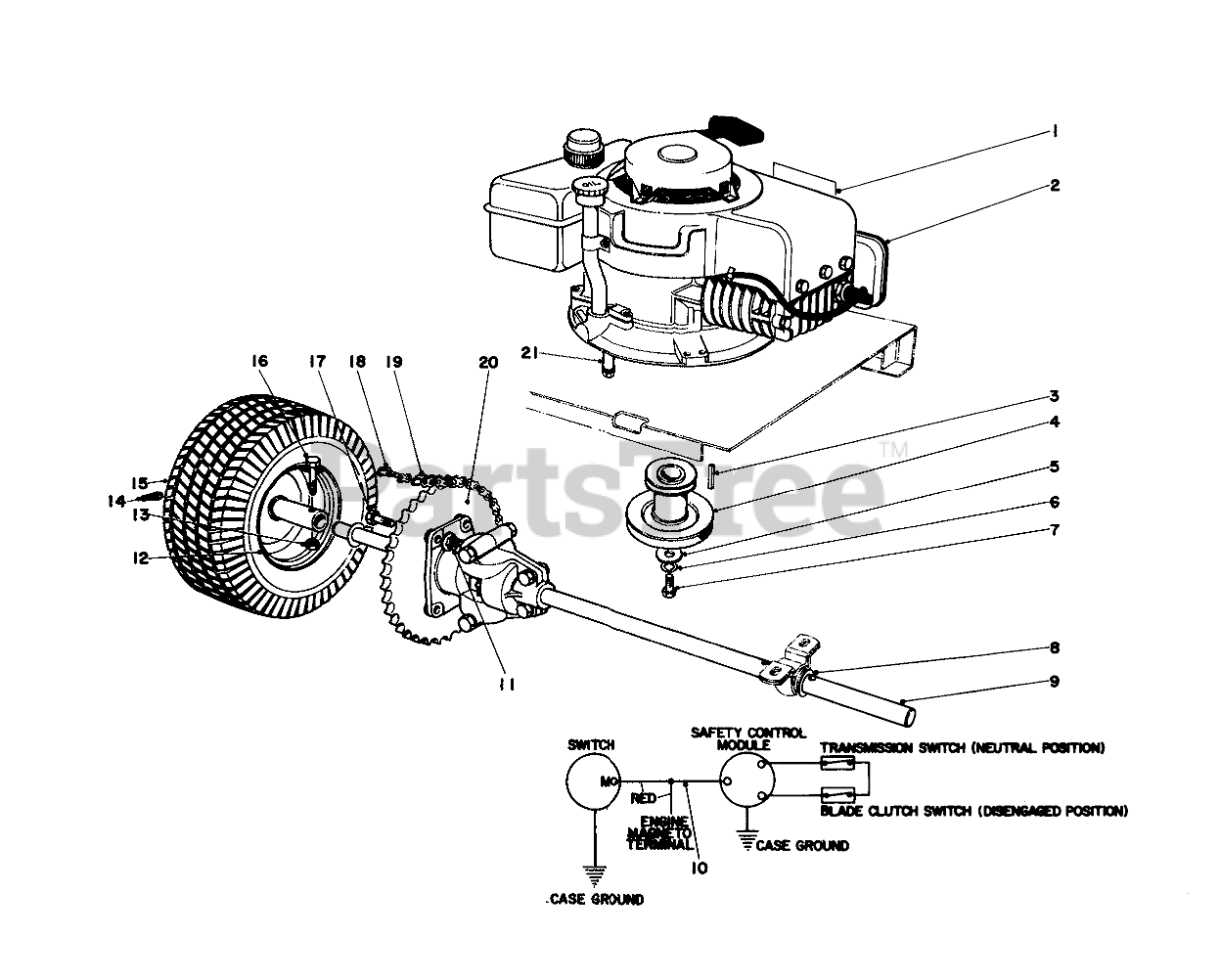

ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 19-5850

Decal

$

$

Not available

2

Toro 221-423

Engine

$

$

Currently unavailable

3

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

4

Toro 19-1730

ENGINE SHEAVE

$

$

Not available

5

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

7

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

8

Toro 11-4930

WASHER

$

$

Not available

9

Toro 11-1800

Differential

$

$

Not available

10

Toro 19-1920

Wiring Harness

$

$

Not available

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 241-110

Rim

$

$

Not available

13

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

14

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

15

Toro 23149

Terra Tire

$

$

Currently unavailable

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$96.99

$

Usually ships in 3-6 days

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

19

Toro 17-1700

Chain

$

$

Not available

20

Toro 12-1940

Sprocket

$

$

Not available

21

Toro 21-5780

Extension Oil Drain

$

$

Not available
