56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1974) 25" MOWER ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

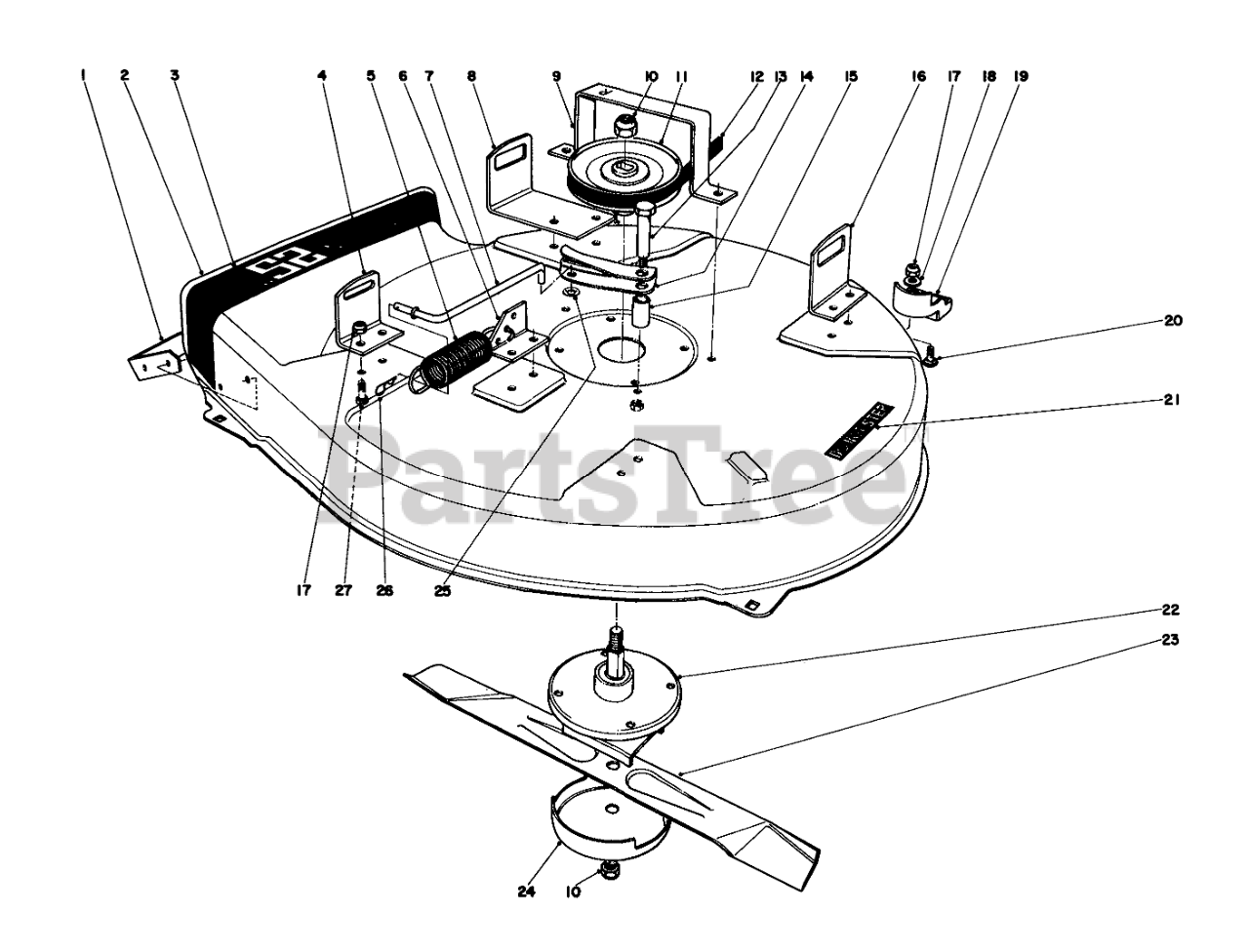

25" MOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 19-1880

Deflector Bar

$

$

Not available

2

Toro 19-1740

25" Deck

$

$

Currently unavailable

3

Toro 12-9190

Chute Deflector Decal

$

$

Not available

4

Toro 19-1840

Front Deck Bracket

$

$

Not available

5

Toro 11-1620

Spring

$

$

Not available

6

Toro 19-1870

Deck Spring Bracket

$

$

Currently unavailable

7

Toro 19-1800

Blade Brake Rod

$

$

Not available

8

Toro 19-1820

Mower Deck Bracket (R. Rear)

$

$

Not available

9

Toro 19-1980

Belt Guide

$

$

Not available

10

Toro 17-0980

Nut

$9.99

$

In Stock, only 4 left!

0

11

Toro 19-1720

Pulley
(Superseded to 26-4020)

$

$

Not available

12

Toro 19-2220

V-BELT, DECK DRIVE

$

$

Not available

13

Toro 12-8900

BOLT-SHOULDER, HH

$28.99

$

Usually ships in 3-6 days

0

14

Toro 19-1710

Blade Brake Arm

$

$

Currently unavailable

15

Toro 19-1780

Spacer

$

$

Currently unavailable

16

Toro 19-1830

Mower Deck Bracket (L. Rear)

$

$

Not available

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 19-2080

Skid

$

$

Currently unavailable

20

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

21

Toro 12-9260

Decal

$

$

Not available

22

Toro 19-2140

Mower Spindle

$

$

Not available

23

Toro 12-2930

Blade
(Superseded to 12-2930-03)

$

$

Not available

24

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

25

Toro 3290

216 Washer

$

$

Currently unavailable

26

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
