56015 - Toro 25" Standard Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) BODY AND SEAT ASSEMBLY Parts Diagram

25" Standard Rear-Engine Riding Mower

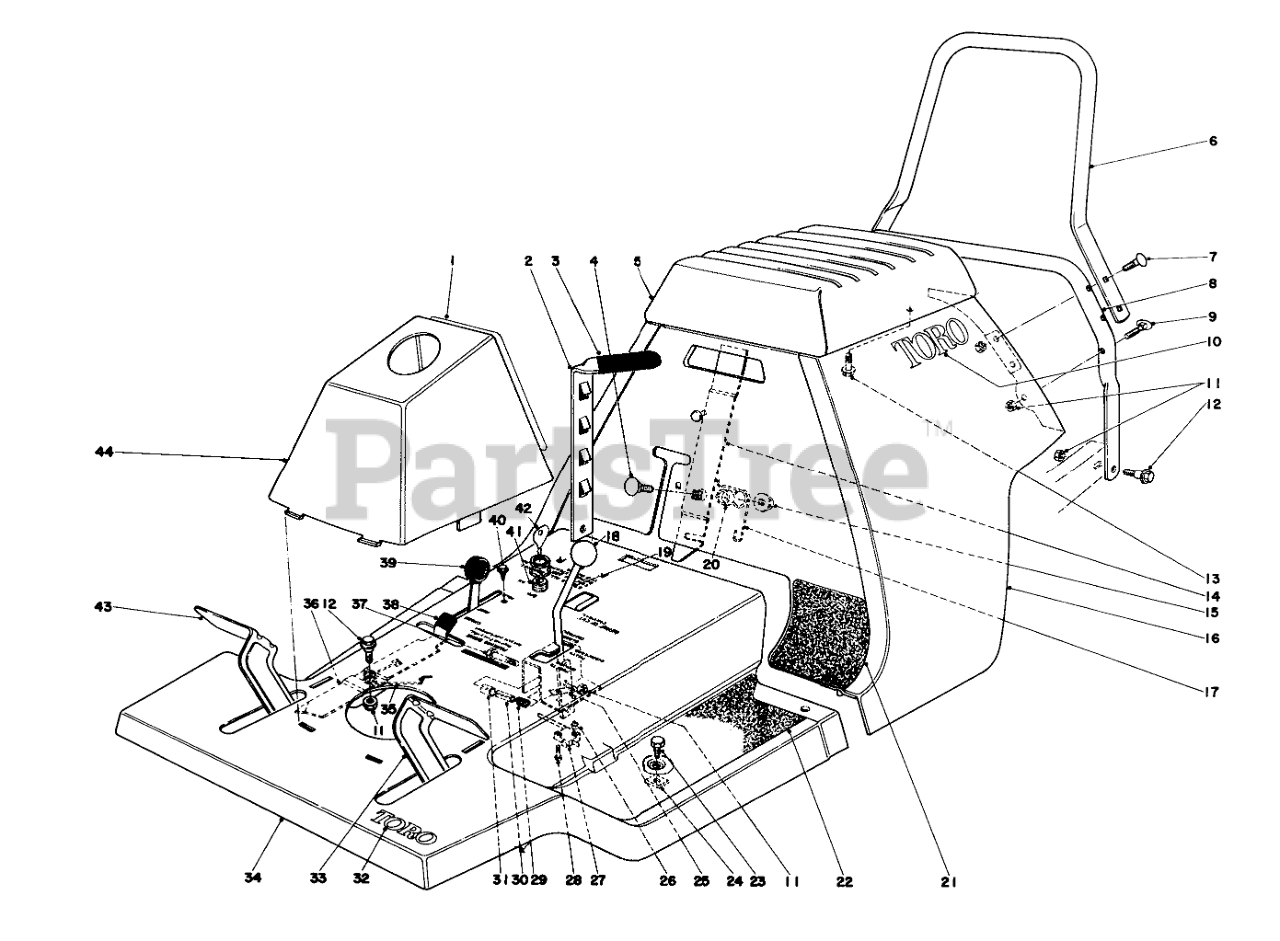

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 19-2020

Decal Tower

$

$

Not available

2

Toro 12-6160

Lift-Vertical

$

$

Currently unavailable

3

Toro 12-6920

Grip Handle

$

$

Currently unavailable

4

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

5

Toro 12-5760

Seat

$

$

Not available

6

Toro 18-8200

Handle Upper

$

$

Not available

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 17-9990

Handle Lower

$

$

Not available

9

Toro 6-6330

HANDLE SCREW

$

$

Not available

10

Toro 12-9100

Decal
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

13

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

14

Toro 19-2400

Handle Latch

$

$

Not available

15

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

16

Toro 19-1690

Rear Body

$

$

Currently unavailable

17

Toro 19-2390

Latch Return Spring

$

$

Not available

18

Toro 233-22

KNOB-CONTROL

$25.99

$

Usually ships in 3-6 days

0

19

Toro 12-9000

Deck Engagement Lever

$

$

Not available

20

Toro 19-2410

Spacer

$

$

Not available

21

Toro 21-6510

Heel Pad L.H.

$

$

Not available

Toro 21-6520

Heel Pad R.H.

Note: Not illustrated

$

$

Not available

22

Toro 21-6490

Foot Tread L.H.

$

$

Currently unavailable

Toro 21-6500

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

23

Toro 32104-110

SCREW-HH

$

$

Not available

24

Toro 3290-347

NUT-TINNERMAN

$

$

Not available

25

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

26

Toro 12-3330

Spacer

$

$

Currently unavailable

27

Toro 12-9080

MICRO SWITCH

$

$

Not available

28

Toro 3290-329

SCREW-PPH

$

$

Not available

29

Toro 17-6520

Spring

$

$

Currently unavailable

30

Toro 12-8950

Spacer Split

$

$

Currently unavailable

31

Toro 17-6530

Spacer

$

$

Not available

32

Toro 12-9140

DECAL

$

$

Currently unavailable

33

Toro 21-4960

Clutch Pedal
(Superseded to 19-1860)

$

$

Not available

34

Toro 21-4700

Front Body

$

$

Currently unavailable

35

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

36

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

37

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

38

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

39

Toro 21-4570

Throttle Control

$

$

Currently unavailable

40

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

41

Toro 19-2450

ON-OFF SWITCH 21-8-468

$

$

Not available

42

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

43

Toro 21-4950

Brake Pedal

$

$

Not available

44

Toro 12-6290

Tower
(Superseded to 55-7103)

$

$

Not available
