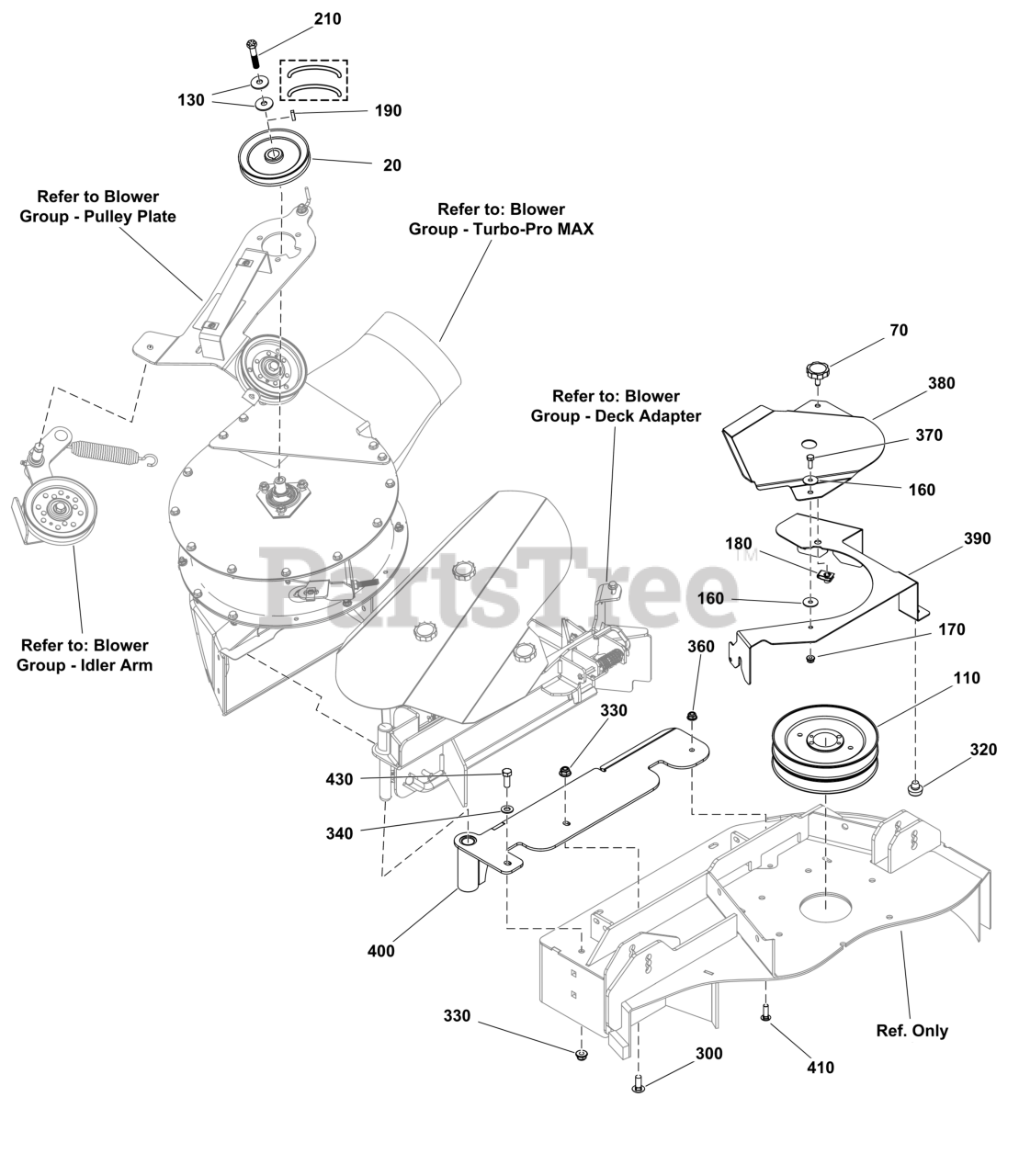

5601411 - Ferris 60" iCD Turbo-Pro Max 3-Bag Soft Top Grass Collection System for ISX3300 Blower Group - Guards, Pulleys, and Deck Mount Parts Diagram

60" iCD Turbo-Pro Max 3-Bag Soft Top Grass Collection System for ISX3300

Blower Group - Guards, Pulleys, and Deck Mount Parts Diagram

  • Title

20

Ferris 5103836FS

PULLEY

$50.99

$

Usually ships in 2-12 days

0

70

Ferris 5101731YP

KNOB, 5/616-18 X 1

$10.99

$

In Stock, only 4 left!

0

110

Ferris 84003250

PULLEY

$97.99

$

In Stock, only 2 left!

0

130

Ferris 5106588FS

WASHER, BEVELED

$5.99

$

Usually ships in 2-12 days

0

160

Ferris 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, only 4 left!

0

170

Ferris 5025391FS

NUT

$3.99

$

In Stock, Qty 20+

0

180

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, only 2 left!

0

190

Ferris 5050403X4YP

KEY, SQUARE

$2.99

$

Usually ships in 2-12 days

0

210

Ferris 84008037

BOLT

Note: (Torque to pulley mounting bolt to: 50 ft-lbs (68 Nm))

$

$

Currently unavailable

300

Ferris 703814

BOLT, RD HD, 3/8-16X1

$4.49

$

In Stock, only 4 left!

0

320

Ferris 197546GS

MOUNT-VIBRATION

$7.99

$

In Stock, only 2 left!

0

330

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

340

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

360

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

370

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 20+

0

380

Ferris 5413841AFS

SHIELD, BELT

$37.99

$

Usually ships in 2-12 days

0

390

Ferris 84008035

GUARD, Pulley

$52.99

$

Usually ships in 2-12 days

0

400

Ferris 84008036

MOUNT

$202.99

$

Usually ships in 2-12 days

0

410

Ferris 5025145X8SM

BOLT, 5/16-18 X 1", C

$3.99

$

In Stock, Qty 9

0

430

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0
