5601351 - Ferris 48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S Mower Deck Guards, Blades, And Spindle Pulley Parts Diagram

48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S

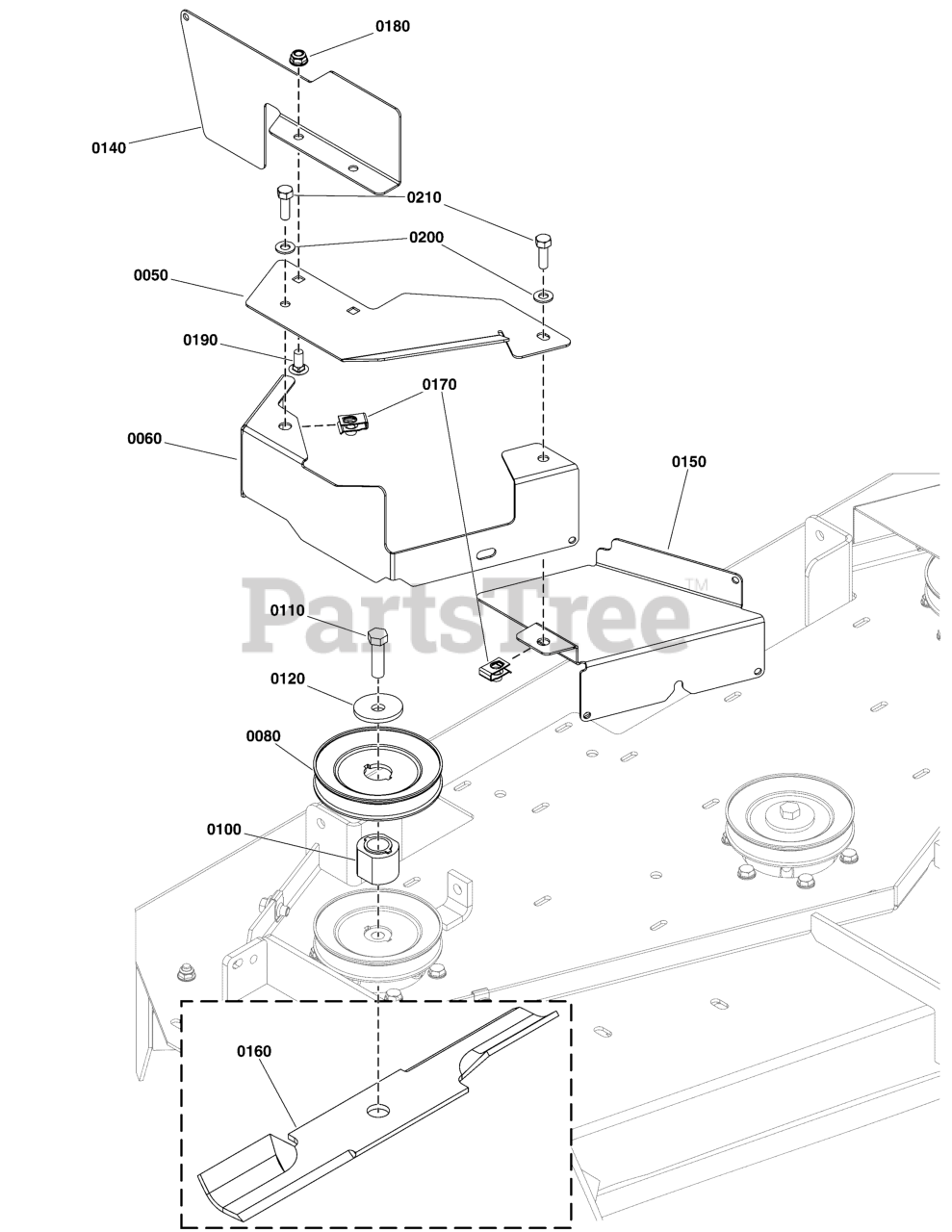

Mower Deck Guards, Blades, And Spindle Pulley Parts Diagram

  • Title

0050

Ferris 80090089AA

PLATE, TOP GUARD, TPRO-PULLEY - BLK

$

$

Currently unavailable

0060

Ferris 80089659AA

PLATE, TP PULLEY GUARD, 400S CE - BLK

$

$

Currently unavailable

0080

Ferris 1732951

PULLEY, .68" Deep-Groove OD 4.6"
(Superseded to 1732951SM)

$19.99

$

In Stock, Qty 20+

0

0100

Ferris 1713634

HUB, Double Pulley, 1.16" Long
(Superseded to 1713634SM)

$16.99

$

Usually ships in 2-12 days

0

0110

Ferris 80020799

CAPSCREW-HEX HD 7/16-14X2.750 G5 ZC/CL
(Superseded to 1926110SM)

$6.49

$

Usually ships in 2-12 days

0

0120

Ferris 1656916

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0140

Ferris 80089657AA

GUARD, DECK REAR, RH, 48 CE - BLK

$

$

Currently unavailable

0150

Ferris 80089660AA

GUARD, DECK-RH BELT, 400S-CE - BLK

$

$

Currently unavailable

0160

Ferris 5105512S

BLADE SET, 48" DECK, 3/16

Note: (Set of 3 Blades)

$59.99

$

In Stock, Qty 12

0

0170

Ferris 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 3 left!

0

0180

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0190

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0200

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0210

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
