5601318 - Ferris LED Headlight Kit LED Headlight Kit - 5601318 Parts Diagram

LED Headlight Kit

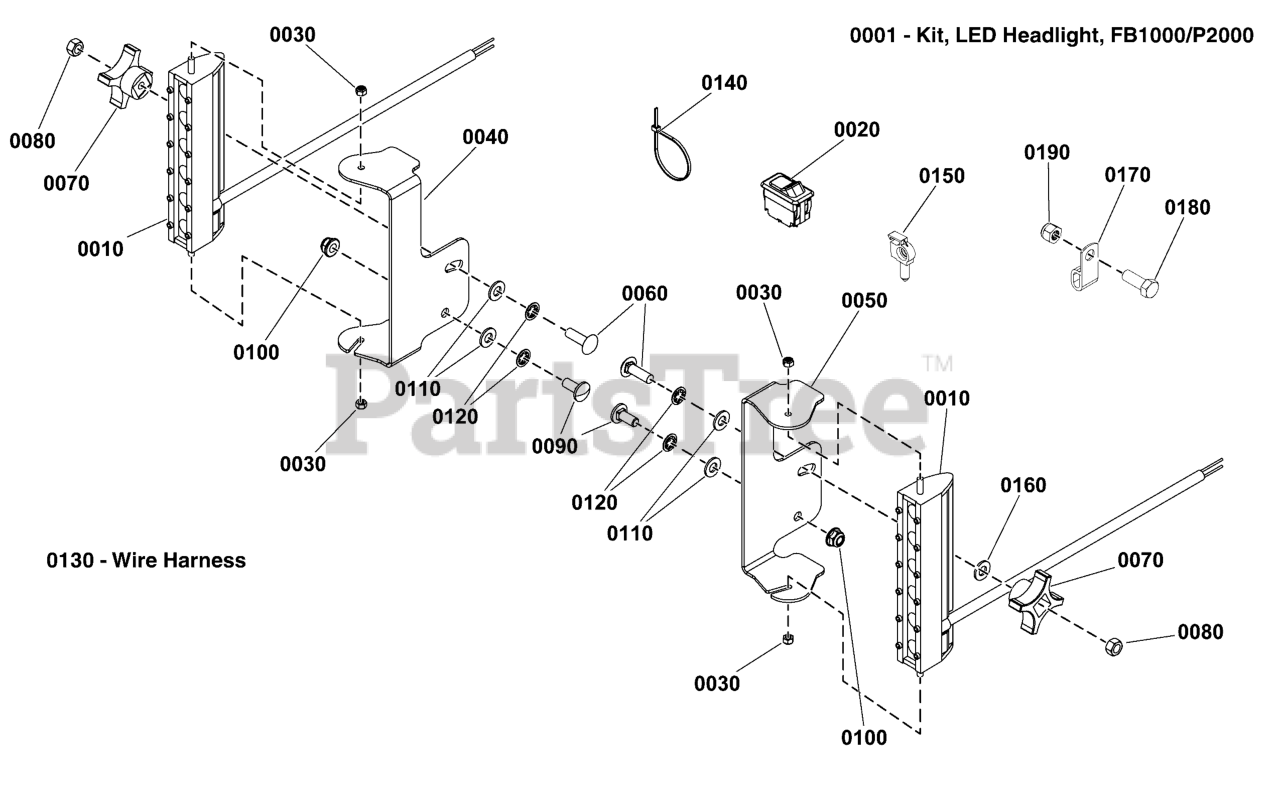

LED Headlight Kit - 5601318 Parts Diagram

  • Title

0001

Ferris 5601318

KIT, LED HEADLIGHT, FB1000/P2000

$326.99

$

Usually ships in 2-12 days

0

0010

Ferris 5420644

HEADLIGHT ASSY - LED
(Superseded to 84006903)

$112.99

$

Usually ships in 2-12 days

0

0020

Ferris 1703799

SWITCH, HEADLIGHT
(Superseded to 1703799SM)

$31.99

$

In Stock, only 1 left!

0

0030

Ferris 5025672

NUT, HEX, M5X.8MM, NYLON INSERT

$

$

Not available

0040

PLATE, HEADLIGHT BRKT RH, FB1000 - BLK

$

$

Not available

0050

PLATE, HEADLIGHT BRKT LH, FB1000 - BLK

$

$

Not available

0060

Ferris 80004446

BOLT,5/16-18X1 1/4,GR5,CRRG,ZINC/CLEAR
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0070

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

0080

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

0090

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0100

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0120

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$

$

Not available

0130

WIRE HARNESS, HEALDIGHT, FB1000/P2000

$

$

Not available

0140

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0150

Ferris 5104736

ROSEBUD CLIP, 3/8"
(Superseded to 5104736FS)

$2.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025698

WASHER, 5/16 NYLON, BLK

$

$

Currently unavailable

0170

Ferris 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0190

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
