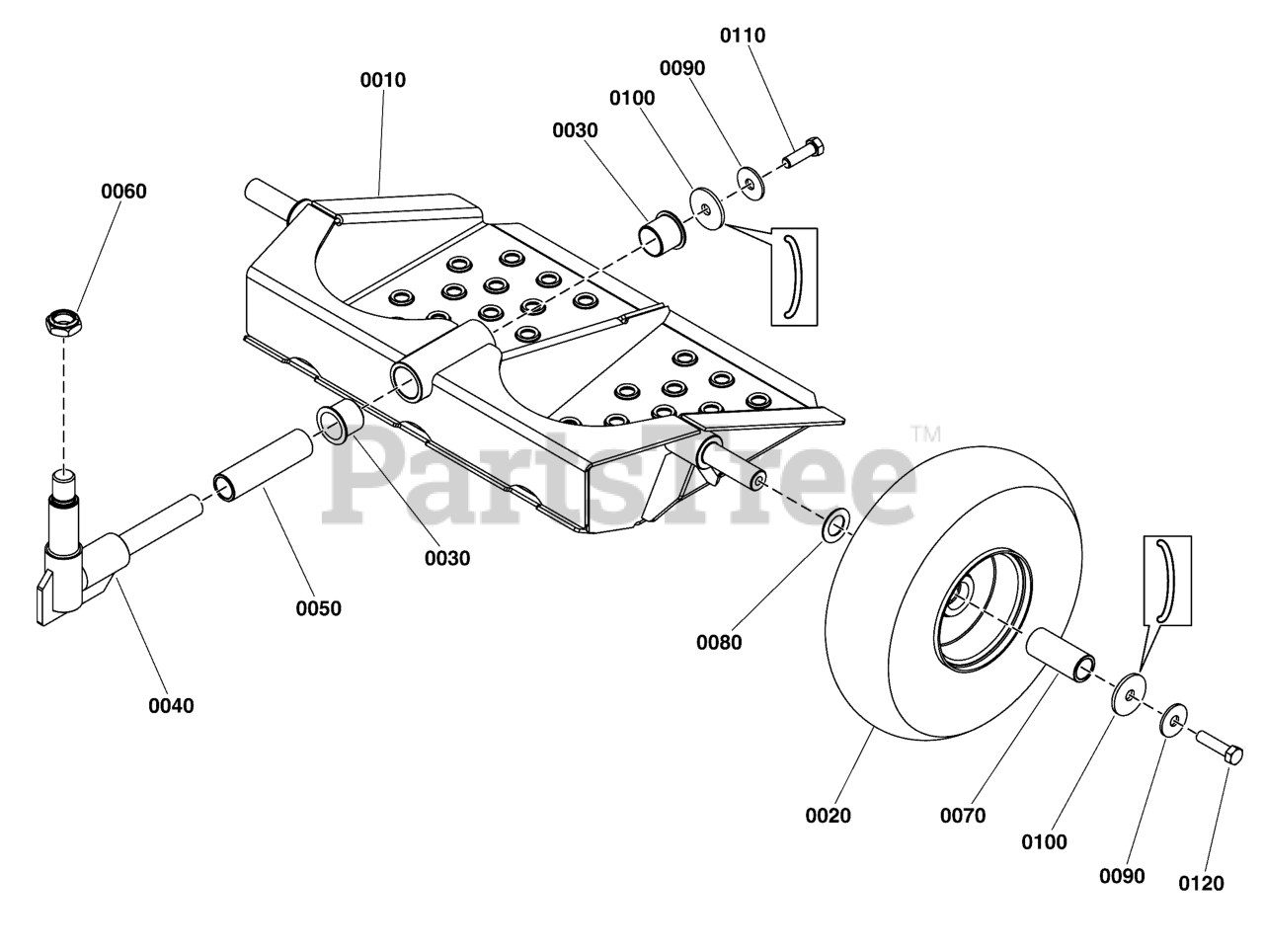

5601141 - Ferris Sulky Kit for XS-2 Platform Group Parts Diagram

Sulky Kit for XS-2

Platform Group Parts Diagram

  • Title

0010

Ferris 5417574A

WELD, PLATFORM, 2-WHEEL - BLK
(Superseded to 5417574AFS)

$509.99

$

Usually ships in 2-12 days

0

0020

Ferris 5106374

TIRE ASM, SULKY, 4.10-4, 2.25 OFFSET HUB
(Superseded to 5106374FS)

$113.99

$

Usually ships in 2-12 days

0

0020-10

Ferris 5106374X1

BEARING, ROLLER, 1.0" ID X 1.375" OD X 0.25" LONG

Note: (One per tire.)(Not an illustrated part.)

$14.99

$

In Stock, only 2 left!

0

0020-20

Ferris 5106374X2

RETAINER, BUSHING, 1.0 ID X 1.375 OD X 0.25" LONG

Note: (Two per tire.)(Not an illustrated part.)

$4.49

$

In Stock, Qty 5

0

0030

Ferris 5106414

BUSHING, FLANGE, 1.00 X 1.13 X 1.00 PL
(Superseded to 5106414FS)

$7.99

$

In Stock, Qty 20+

0

0040

Ferris 5418100A

WELD, PIVOT, 2-WHL - BLK
(Superseded to 5418100AFS)

$117.99

$

Usually ships in 2-12 days

0

0050

Ferris 5106537

SPACER, .765 X 1.00 X 3.75 SS
(Superseded to 5106537FS)

$29.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0070

Ferris 5106352

SLEEVE, WEAR, ALXE, 2-WHEEL SULKY
(Superseded to 5106352FS)

$10.99

$

Usually ships in 2-12 days

0

0080

Ferris 5106586

SHIM, 3/4" ID X 1-1/4 OD X .48" THK, SS
(Superseded to 5106586FS)

$2.99

$

Usually ships in 2-12 days

0

0090

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5106588

BELLEVILLE WASHER, 1.187X.39X.089, SS
(Superseded to 5106588FS)

$5.99

$

Usually ships in 2-12 days

0

0110

Ferris 5108223

BOLT, 3/8-16 X 1-1/4, W/PATCH
(Superseded to 5108223FS)

Note: (Torque to 40 ft.lbs. (54 Nm))

$4.49

$

Usually ships in 2-12 days

0

0120

Ferris 5025490

BOLT, 3/8-16 X 1-1/2, GD5, WITH PATCH
(Superseded to 5025490FS)

Note: (Torque to 40 ft.lbs. (54 Nm))

$4.49

$

Usually ships in 2-12 days

0
