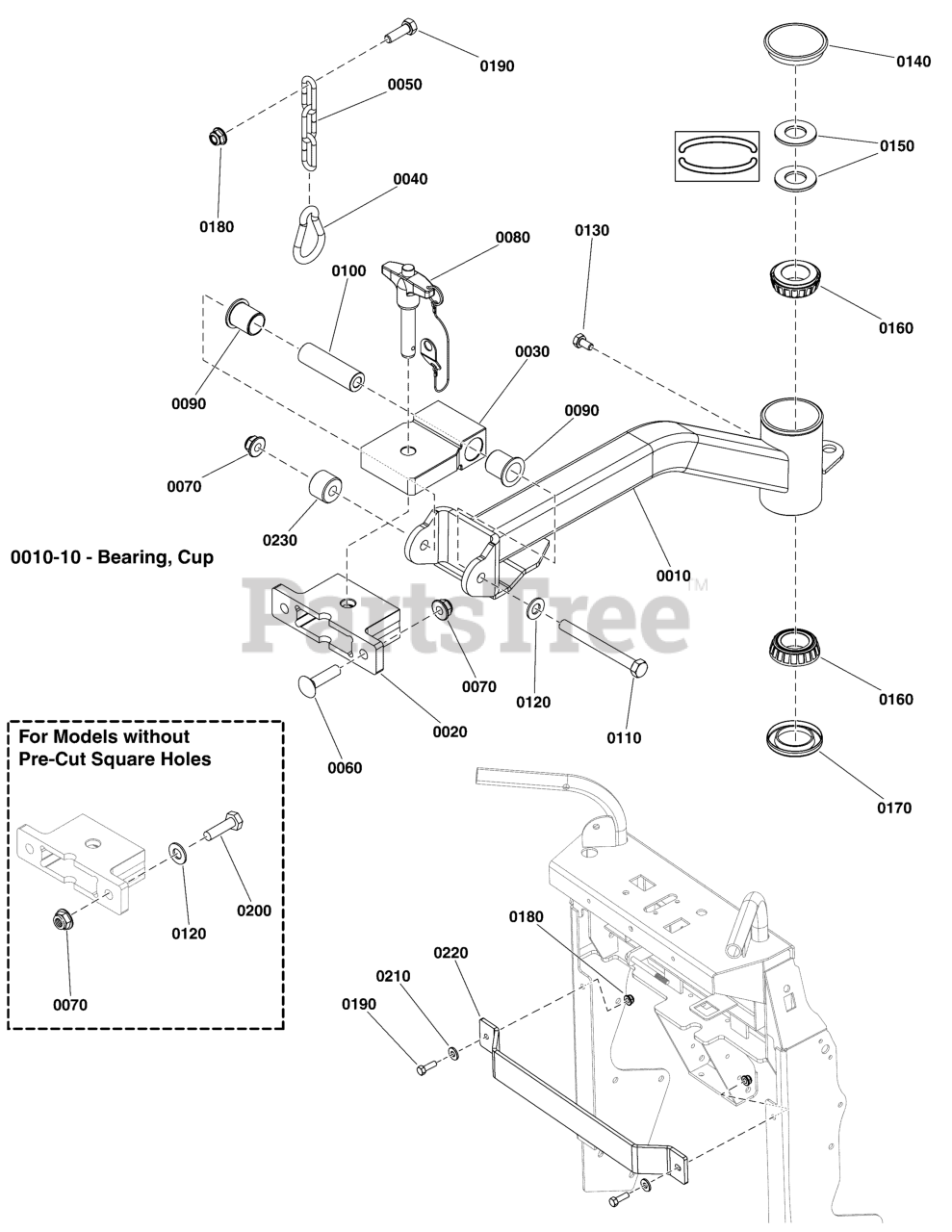

5601140 - Snapper Pro Sulky Kit for XS-1 Arm & Mount Group Parts Diagram

Sulky Kit for XS-1

Arm & Mount Group Parts Diagram

  • Title

0010

Snapper Pro 5601169

TRAILING ARM W/ DECAL

$246.99

$

Usually ships in 2-12 days

0

0010-10

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0020

Snapper Pro 5106375

RECEIVER, SULKY HITCH
(Superseded to 5106375FS)

$105.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5106554

SHANK, MACHINED, SULKY HITCH
(Superseded to 5106554FS)

$91.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5106384

CARABINER, SULKY
(Superseded to 5106384FS)

$5.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5106385

CHAIN, HANG, SULKY (3 LINK)
(Superseded to 5106385FS)

$6.49

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper Pro 5106350

PIN, QUICK RELEASE 1/2 X 1-3/4" T HANDLE
(Superseded to 5106350FS)

$93.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5106372

BUSHING, FLANGE, .75 X .88 X 1.00, PL
(Superseded to 5106372FS)

$5.99

$

In Stock, only 2 left!

0

0100

Snapper Pro 5106348

SPACER, .39 X .75 X 2.65 SS
(Superseded to 5106348FS)

$19.99

$

In Stock, only 1 left!

0

0110

Snapper Pro 5025676X38

BOLT, 3/8-16 X 4-3/4, GD8, PHOS
(Superseded to 5025676X38FS)

Note: (Torque the nut for this bolt to 40 ft.lbs. (54 Nm))

$7.49

$

In Stock, only 1 left!

0

0120

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0130

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

0140

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0150

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0160

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0170

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

0180

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0200

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

0210

Snapper Pro 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0220

Snapper Pro 5419312AA

BAR, SULKY GUARD, W25-W35 - BLK
(Superseded to 5419312AAFS)

$42.99

$

Usually ships in 2-12 days

0

0230

Snapper Pro 5043815

SPACER, .39 X 1.00 X .75, CZ
(Superseded to 5043815YP)

$10.99

$

Usually ships in 2-12 days

0
