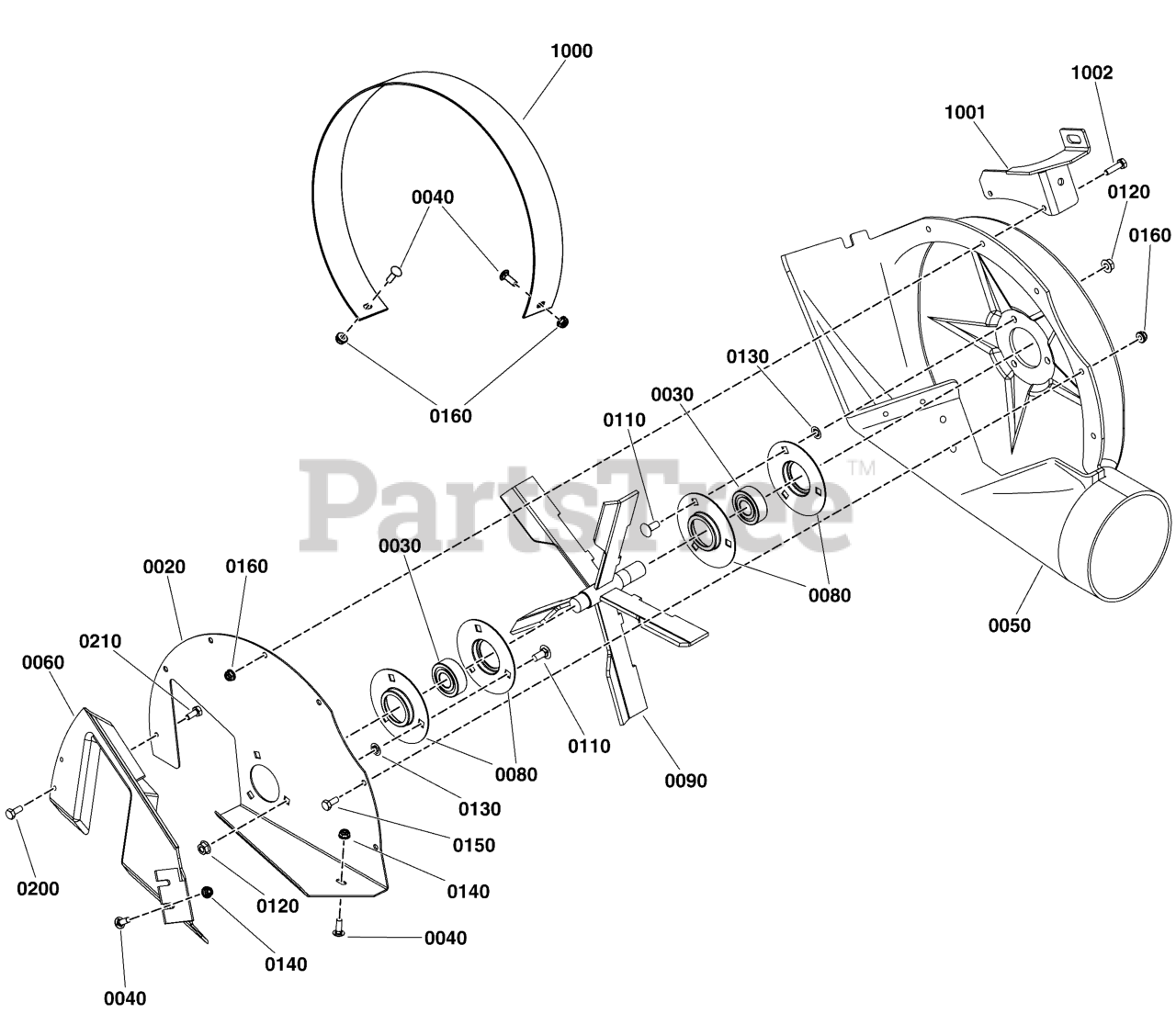

5601092 - Snapper Pro 48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S Blower Group, Turbo-PRO Parts Diagram

48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S

Blower Group, Turbo-PRO Parts Diagram

  • Title

0020

Snapper Pro 5409023A

PLATE, BLOWER TURBO - BLK
(Superseded to 5409023AYP)

$64.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 2108202

BEARING-BALL 0.750ID 1.780OD 0.610LG
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0040

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

0050

Snapper Pro 5412569

ASSM, HOUSING W/ INTERNAL RING, TURBO

$331.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 1705267

PLATE-COVER,BLACK POLY FOR LTH MDVS
(Superseded to 1705267SM)

$32.99

$

In Stock, Qty 6

0

0080

Snapper Pro 1665982

RETAINER, BEARING CLEAR ZINC
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

0090

Snapper Pro 5409207

WELD, FAN ASSEMBLY, TURBO
(Superseded to 5409207YP)

$192.99

$

In Stock, only 1 left!

0

0110

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0120

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

0130

Snapper Pro 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0150

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0160

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0200

Snapper Pro 80004190

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0210

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ

$

$

Not available

1000

REPLACE WITH PART LABELLED # 0050

$

$

Not available

1001

Snapper Pro 5417207A

BRACKET, Spring Anchor - BLK

$

$

Currently unavailable

1002

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0
