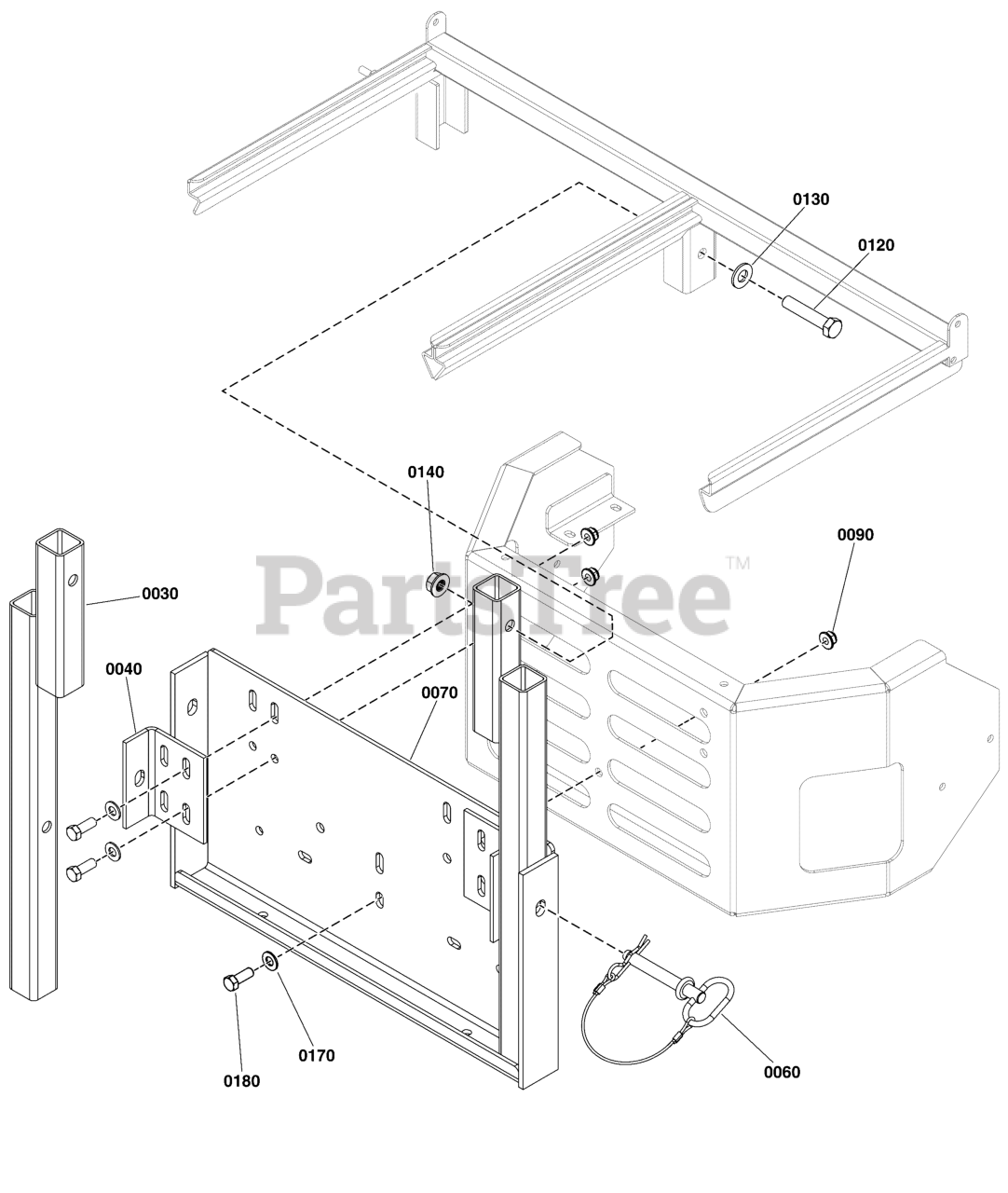

5601092 - Snapper Pro 48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S 2-Bag Mount Group (Models with Flat Plate Bumpers) Parts Diagram

48" FN Turbo-Pro 2-Bag Hard Top Grass Collection System for 400S

2-Bag Mount Group (Models with Flat Plate Bumpers) Parts Diagram

  • Title
0030

Snapper Pro 5417214A

WELD, MOUNTING POST, SHORT - BLK
(Superseded to 5417214AFS)

$78.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5402665A

BRACKET, BAGGER MOUNT - BLK
(Superseded to 5402665AYP)

$37.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5100013

PIN, HITCH, .50 X 3.25 W/ LAY (SV)
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5412980A

WELD, 2 BAG MOUNT - BLK
(Superseded to 5412980AFS)

$171.99

$

Usually ships in 2-12 days

0

0090

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0120

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

0130

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0140

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0180

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0
