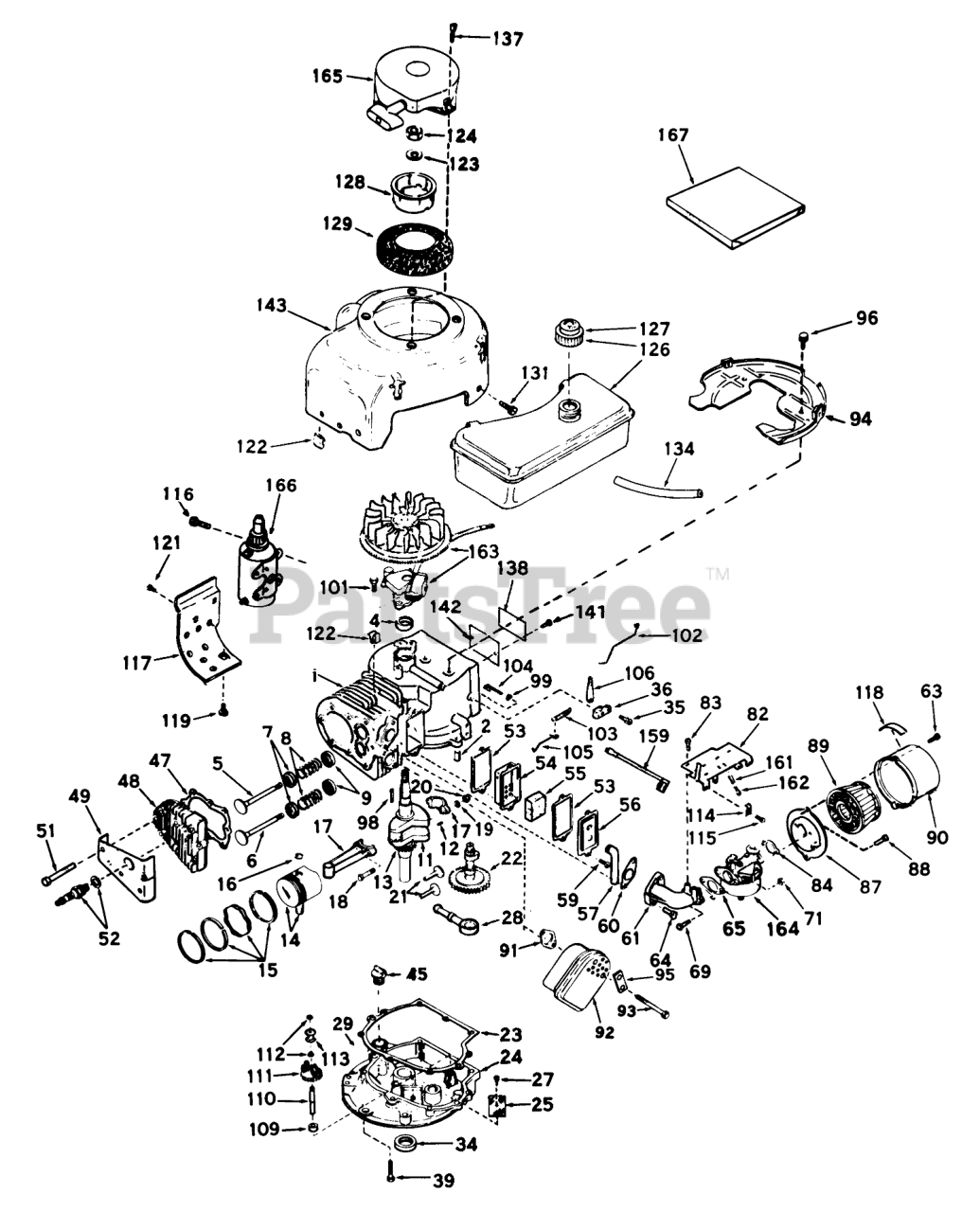

56010 - Toro 25" Sportlawn Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1972) ENGINE TECUMSEH MODEL NO. V50-60207H. 5 H.P. REAR ENGINE RIDER (RECOIL) MODEL NO. V50-60206H. 5 H.P. REAR ENGINE RIDER (ELECTRIC) Parts Diagram

25" Sportlawn Rear-Engine Riding Mower

ENGINE TECUMSEH MODEL NO. V50-60207H. 5 H.P. REAR ENGINE RIDER (RECOIL) MODEL NO. V50-60206H. 5 H.P. REAR ENGINE RIDER (ELECTRIC) Parts Diagram

  • Title

1

Tecumseh 33361

Cylinder Assy. (Incl. Nos. 2 & 4)
(Superseded to 33361A)

$

$

Currently unavailable

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

4

Tecumseh 27876B

Seal, Oil

$12.99

$

In Stock, only 1 left!

0

5

Tecumseh 27877A

Valve, Intake (Std.)(Incl. No. 9)

$20.99

$

In Stock, only 1 left!

0

5

Tecumseh 27879A

Valve, Intake (1 /32" oversize)(Incl. No. 9)
(Superseded to 27880A)

$

$

Not available

6

Tecumseh 27878A

Valve, Exhaust (Std.)(Incl. No. 9)

$23.99

$

In Stock, only 1 left!

0

6

Tecumseh 27880A

Valve, Exhaust (1/32" oversize)(Incl . No. 9)

$

$

Not available

7

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 2 left!

0

9

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 10

0

11

Tecumseh 29477A

Crankshaft Assy. (Incl. Nos. 12 & 13)

$

$

Currently unavailable

12

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 27884

Gear-Crankshaft

$11.99

$

In Stock, only 1 left!

0

14

Tecumseh 33312

Piston & Pin Assy. (Standard)(Incl. 2 of No. 16)
(Superseded to 33312B)

$

$

Not available

14

Tecumseh 33313

Piston & Pin Assy. (.010 oversize)(Incl. 2 of No. 16)
(Superseded to 33313B)

$55.99

$

Usually ships in 3-12 days

0

14

Tecumseh 33314

Piston & Pin Assy. (.020 oversize)(Incl. 2 of No. 16)
(Superseded to 33314B)

$61.99

$

Usually ships in 3-12 days

0

15

Tecumseh 33315

Ring Set, Piston (Std.)
(Superseded to 34854)

$

$

Not available

15

Tecumseh 33316

Ring Set, Piston (.010 Oversize)
(Superseded to 34855)

$

$

Not available

15

Tecumseh 33317

Ring Set, Piston (.020 oversize)
(Superseded to 34856)

$

$

Not available

16

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 31295B

Rod Assy., Connecting (Incl. Nos. 18, 19 & 20)
(Superseded to 31295C)

$

$

Not available

18

Tecumseh 21718

Bolt, Connecting Rod
(Superseded to 32077)

$3.99

$

Usually ships in 3-12 days

0

19

Tecumseh 26073

Washer

$

$

Not available

20

Tecumseh 28264

Nut

$3.99

$

In Stock, only 2 left!

0

21

Tecumseh 27893

Lifter Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 3 left!

0

22

Tecumseh 33157

Camshaft (Compression Release)

$75.99

$

In Stock, only 1 left!

0

23

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates items included in Gasket Set.

$4.49

$

In Stock, Qty 8

0

24

Tecumseh 31471B

Flange Assy., Mounting (Incl. Nos. 25, 27, 29, 34, 45 & 110)
(Superseded to 31471D)

$158.99

$

In Stock, only 1 left!

0

25

Tecumseh 31355

Screen-Oil Filter

$5.49

$

Usually ships in 3-12 days

0

27

Tecumseh 29117

Screw

$1.99

$

In Stock, only 1 left!

0

28

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

29

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

34

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, only 3 left!

0

35

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

36

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

39

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 27625

Plug-Fill, Oil

$2.49

$

In Stock, Qty 8

0

47

Tecumseh 28938B

Gasket-Head, Cylinder
(Superseded to 28938C)

Note: Indicates items included in Gasket Set.

$9.99

$

In Stock, Qty 7

0

48

Tecumseh 30938A

CYLINDER HEAD
(Superseded to 36446)

$

$

Not available

49

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

51

Tecumseh 650697

Screw Hex Hd. Cap
(Superseded to 650697A)

$1.99

$

In Stock, Qty 11

0

52

Tecumseh 21943

SPARK PLUG
(Superseded to 33636)

$5.49

$

In Stock, Qty 17

0

53

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates items included in Gasket Set.

$1.49

$

In Stock, Qty 17

0

54

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

55

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, Qty 7

0

56

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

57

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

In Stock, only 1 left!

0

59

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

60

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates items included in Gasket Set.

$5.99

$

In Stock, Qty 20+

0

61

Tecumseh 31512

Pipe, Intake

$

$

Currently unavailable

63

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

64

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set.

$2.99

$

In Stock, Qty 11

0

69

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

71

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

82

Tecumseh 32181

Control Assy., Speed (Incl. Nos. 161 & 162)
(Superseded to 32181A)

$

$

Not available

83

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

84

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in Gasket Set.

$4.49

$

In Stock, Qty 20+

0

87

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 1 left!

0

88

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

89

Tecumseh 30727

Element

$7.49

$

In Stock, only 3 left!

0

90

Tecumseh 31692

Body
(Superseded to 31715)

$21.99

$

In Stock, Qty 7

0

91

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates items included in Gasket Set.

$2.49

$

In Stock, only 4 left!

0

92

Tecumseh 28269

Muffler

$

$

Not available

93

Tecumseh 650696

Screw Hex Hd.

$3.99

$

In Stock, only 2 left!

0

94

Tecumseh 29536

Baffle Blower Housing

$18.99

$

Usually ships in 3-12 days

0

95

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

96

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

98

Tecumseh 30884

Key, Flywheel

$2.99

$

In Stock, only 4 left!

0

99

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

101

Tecumseh 650489

Screw

$

$

Not available

102

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 1 left!

0

103

Tecumseh 31361

Spring Governor

$1.99

$

Usually ships in 3-12 days

0

104

Tecumseh 30669

Rod, Governor (Incl. No. 99)

$7.49

$

In Stock, only 1 left!

0

105

Tecumseh 32582

Link Governor Spring

$1.99

$

In Stock, only 4 left!

0

106

Tecumseh 31357

Lever-Governor

$1.99

$

In Stock, only 1 left!

0

109

Tecumseh 31707

Spacer
(Superseded to 31707A)

$1.99

$

In Stock, only 2 left!

0

110

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

111

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

112

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 6

0

113

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

114

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

115

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 3 left!

0

116

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

117

Tecumseh 30622

Emnsion, Blower Housing
(Superseded to 30622A)

$

$

Not available

118

Tecumseh 31752

Decal

$

$

Not available

119

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

122

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

123

Tecumseh 650490

Washer
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

124

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

126

Tecumseh 32584

Tank Assy., Fuel (Incl. No. 127)

$

$

Not available

127

Tecumseh 32387A

Cap, Fuel
(Superseded to 33032)

$7.49

$

In Stock, only 1 left!

0

128

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

129

Tecumseh 590417

Screen, Air

$7.49

$

In Stock, only 1 left!

0

131

Tecumseh 29747A

Screw, Hex Hd.
(Superseded to 29747B)

$1.99

$

In Stock, Qty 9

0

134

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

137

Tecumseh 29716

Screw

$1.49

$

In Stock, only 2 left!

0

138

Tecumseh 31865

480B GIL SNWTHWR O/
(Superseded to 36261)

$

$

Not available

141

Tecumseh 28670

Stud

$

$

Currently unavailable

142

Tecumseh 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

143

Tecumseh 32629A

Housing Blower
(Superseded to 32629B)

$103.99

$

Usually ships in 3-12 days

0

159

Tecumseh 33538

Wire, Ground

$

$

Currently unavailable

161

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

162

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

163

Tecumseh 610694A

Magneto

$

$

Currently unavailable

163

Tecumseh 610689A

Magneto

$

$

Not available

164

Tecumseh 631444

Carburetor
(Superseded to 631800A)

$114.99

$

Usually ships in 3-12 days

0

165

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 2 left!

0

166

Tecumseh 32468B

Motor, Starter
(Superseded to 35765A)

$212.99

$

Usually ships in 3-12 days

0

167

Tecumseh 33234

Gasket Set (Incl. items marked)
(Superseded to 33234B)

Note: Indicates items included in Gasket Set.

$26.99

$

Usually ships in 3-12 days

0
