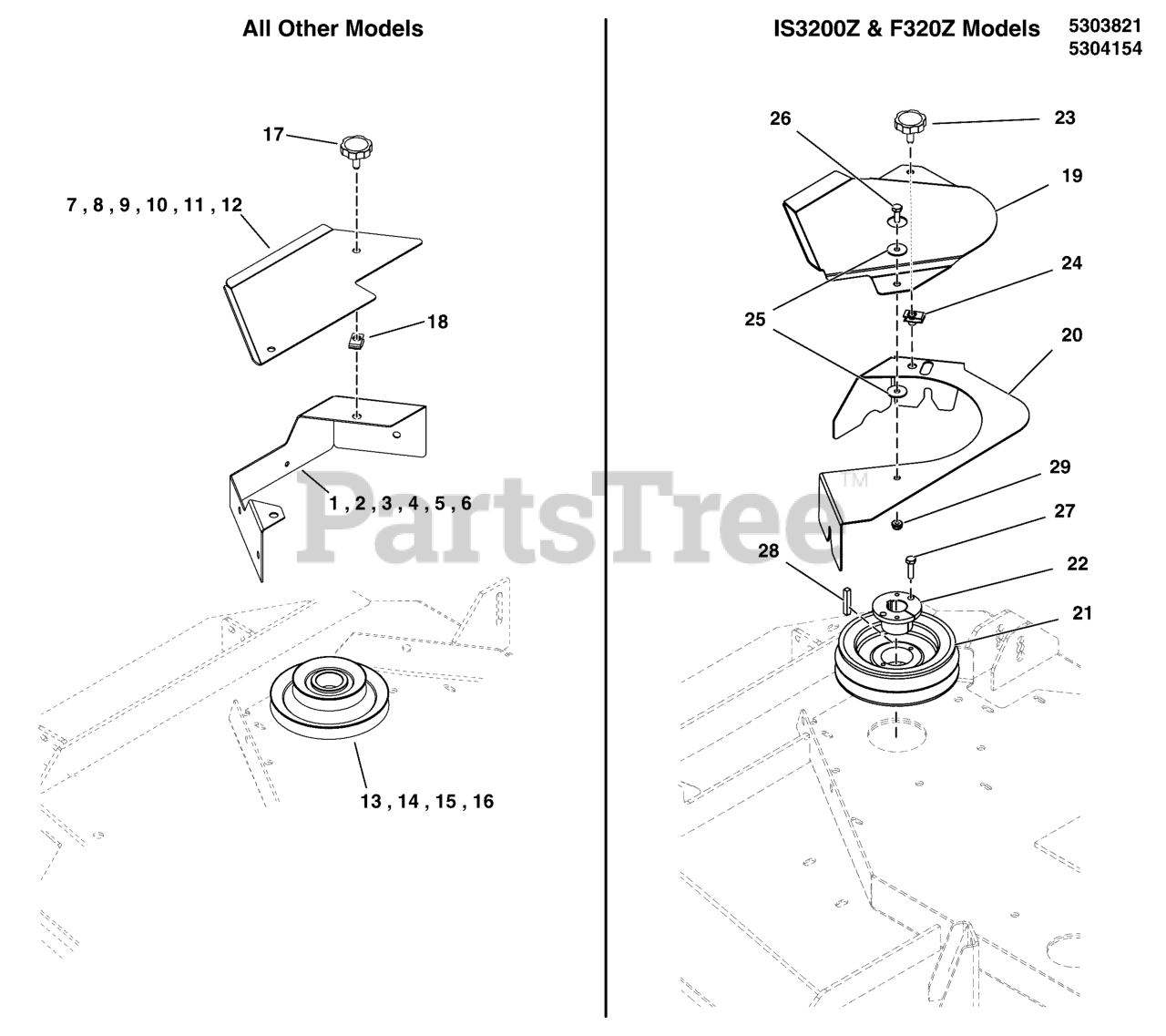

5600940 - Snapper Pro 61" EZ Dump XL 14 cu. ft. Hopper for 210Z Mower Deck Guards & Spindle Pulley - Single Belt Driven Mower Decks Parts Diagram

61" EZ Dump XL 14 cu. ft. Hopper for 210Z

Mower Deck Guards & Spindle Pulley - Single Belt Driven Mower Decks Parts Diagram

  • Title
1

Snapper Pro 5410224AA

GUARD, DECK, 61", TURBO-PRO - BLK

Note: (IS2100Z-61")

$

$

Currently unavailable

2

Snapper Pro 5407843AA

GUARD, DECK, 61/200XT, FASTVAC - BLK

Note: (S200XT-61" / F210Z-61")

$

$

Currently unavailable

3

Snapper Pro 5411995AA

WELD, DECK GUARD, COMM BLWR - BLK

Note: (IS3100Z-61")

$

$

Currently unavailable

4

Snapper Pro 5412517AA

GUARD, DECK, 2100-52" - BLK

Note: (IS2100Z-52")

$

$

Currently unavailable

5

Snapper Pro 5409534A

GUARD, DECK 48/52 - BLK
(Superseded to 5409534AYP)

Note: (S150XT-52" / F160Z-52")

$43.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5412577AA

WELD, PULLEY GUARD, 800-61, BLOWER - BLK

Note: (800X-61")

$

$

Currently unavailable

7

Snapper Pro 5410223AA

PLATE, TOP GUARD, 61" - BLK

Note: (IS2100Z-61")

$

$

Currently unavailable

8

Snapper Pro 5401436AA

GUARD, BELT, 61", 2000 FASTVAC - BLK

Note: (S200XT-61" / F210Z-61")

$

$

Currently unavailable

9

Snapper Pro 5411993AA

BELT SHIELD, 61" COMM BLWR - BLK

Note: (IS3100Z-61")

$

$

Currently unavailable

10

Snapper Pro 5412518AA

PLATE, TOP GUARD, 2100-52" - BLK

Note: (IS2100Z-52")

$

$

Currently unavailable

11

Snapper Pro 5409536A

PLATE, TOP GUARD, 52 - BLK
(Superseded to 5409536AYP)

Note: (S150XT-52" / F160Z-52")

$33.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5412575AA

SHIELD, BELT, 800-61, BLOWER - BLK

Note: (800X-61")

$

$

Currently unavailable

13

Snapper Pro 5103682

DOUBLE PULLEY, DECK, 61" TP
(Superseded to 5103682FS)

Note: (IS2100Z-61" / S200XT-61" / F210Z-61")

$118.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102067

PULLEY, DOUBLE, DH4600, 5.95 OD TAPERED
(Superseded to 5102067FS)

Note: (IS3100Z-61")

$111.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103468

PULLEY, DOUBLE, 52" DECK
(Superseded to 5103468YP)

Note: (IS2100Z-52" / S150XT-52" / F160Z-52")

$171.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5104317

DOUBLE PULLEY, DECK, 800-61", T-MAX
(Superseded to 5104317FS)

Note: (800X-61")

$207.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5413841AA

SHIELD, BELT, 3200-61", BLOWER - BLK
(Superseded to 5413841AFS)

Note: (IS3200Z-61" / F320Z-61")

$37.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5413834AA

GUARD, DECK PULLEY, 3200-61" - BLK

Note: (IS3200Z-61" / F320Z-61")

$

$

Currently unavailable

21

Snapper Pro 5104573

PULLEY, DOUBLE, 5.95/6.43 OD, IS3200
(Superseded to 5104573FS)

Note: (IS3200Z-61" / F320Z-61")

$165.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

Note: (IS3200Z-61" / F320Z-61")

$26.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE, BLK
(Superseded to 5101731YP)

Note: (IS3200Z-61" / F320Z-61")

$10.99

$

In Stock, only 4 left!

0

24

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

Note: (IS3200Z-61" / F320Z-61")

$5.99

$

In Stock, only 2 left!

0

25

Snapper Pro 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

Note: (IS3200Z-61" / F320Z-61")

$3.99

$

In Stock, only 4 left!

0

26

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

Note: (IS3200Z-61" / F320Z-61")

$3.99

$

In Stock, Qty 20+

0

27

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: (IS3200Z-61" / F320Z-61")

$3.99

$

In Stock, only 2 left!

0

28

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

Note: (IS3200Z-61" / F320Z-61")

$4.99

$

In Stock, only 2 left!

0

29

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (IS3200Z-61" / F320Z-61")

$3.99

$

In Stock, Qty 20+

0
