5600906 - Snapper Pro 52" EZ Dump 12 cu. ft. Hopper for 2100 Blower Mount Group - 52" Mower Decks Parts Diagram

52" EZ Dump 12 cu. ft. Hopper for 2100

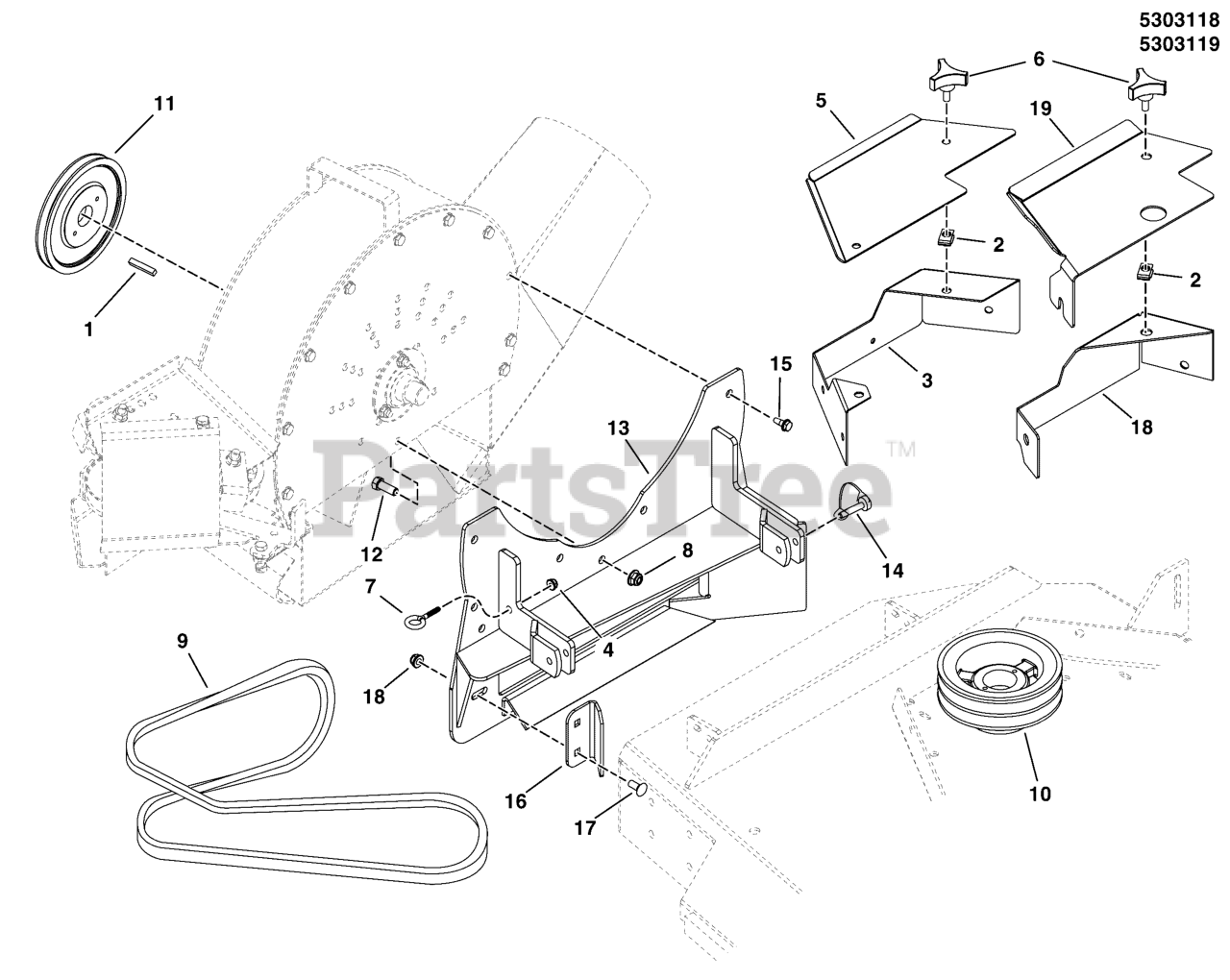

Blower Mount Group - 52" Mower Decks Parts Diagram

  • Title

1

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5061858A

GUARD, DECK 48, 52 - BLK
(Superseded to 5061858ASM)

Note: (F160Z & S150XT Models)

$60.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5400007A

GUARD, DECK - BLACK
(Superseded to 5400007ASM)

Note: (F160Z & S150XT Models)

$31.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022319

KNOB, PLASTIC, 5/16-18 X 3/4
(Superseded to 5022319SM)

$7.99

$

In Stock, only 4 left!

0

7

Snapper Pro 5022205

EYE BOLT, 1/4-20 X 2.5, 1THRD, .5EYE,CZ
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5022844

BELT, A-SEC, 92.00EL, ARAMID, WRPD
(Superseded to 5022844FS)

$59.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023177

PULLEY-BLOWER 52 DECK
(Superseded to 5023177SM)

$257.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5102247

PULLEY, BC-46, 4.55 OD X 1.00 ID
(Superseded to 5102247FS)

$55.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

13

Snapper Pro 5408253A

WELD, ADAPTER, 52ICD, FVAC BLK (5302764)
(Superseded to 5302764YP)

$321.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

In Stock, only 1 left!

0

15

Snapper Pro 7091811

BOLT, 5/16-18 X 5/8" SELF LOCK
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

16

Snapper Pro 5408292A

BRACKET,DEFLECTOR PLATE,52iCD 2011 - BLK
(Superseded to 5408292AYP)

$17.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5405962A

GUARD, DECK, 52/2000 SND - BLK
(Superseded to 5405962AYP)

Note: (IS2100Z Models)

$27.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5405961A

GUARD, BELT, 52/2000 SND - BLK
(Superseded to 5405961AYP)

Note: (IS2100Z Models)

$32.99

$

Usually ships in 2-12 days

0
