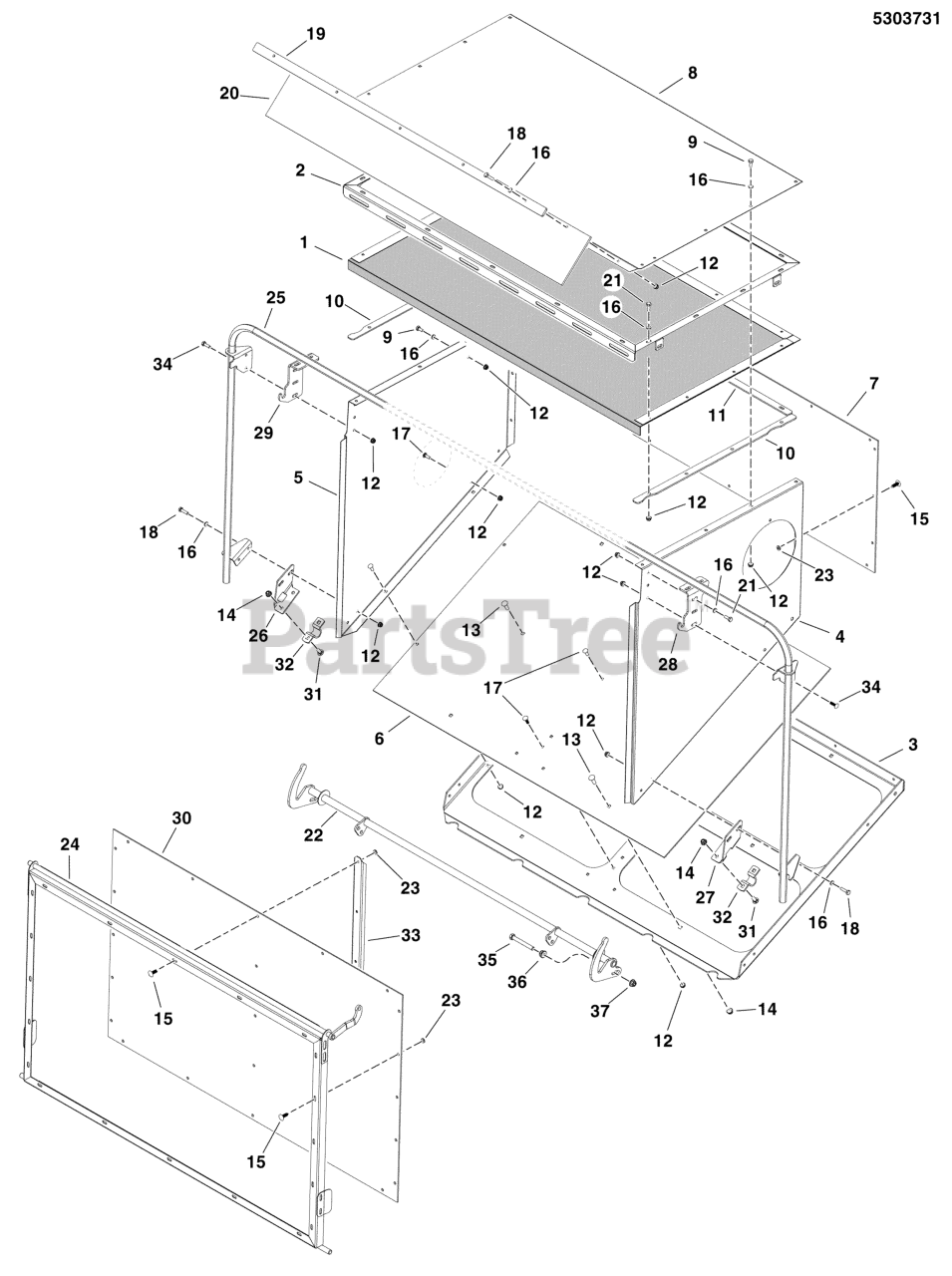

5600901 - Snapper Pro 61" iCD Turbo-Pro Max EZ Dump 12 cu. ft. Hopper for 200XT, 2100, 210 Hopper Group - 12 cu. ft. Parts Diagram

61" iCD Turbo-Pro Max EZ Dump 12 cu. ft. Hopper for 200XT, 2100, 210

Hopper Group - 12 cu. ft. Parts Diagram

  • Title

1

Snapper Pro 5104226

SCREEN, ASM, 12FT HOPPER
(Superseded to 5104226FS)

$237.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5412114A

WELD, SCREEN FRAME, 12FT HOPPER - BLK

$

$

Currently unavailable

3

Snapper Pro 5412115A

WELD, SUBFRAME, 12FT HOPPER - BLK

$

$

Currently unavailable

4

Snapper Pro 5406321A

PANEL, RIGHT, 14FT HOPPER - BLK

$

$

Currently unavailable

5

Snapper Pro 5406320A

PANEL, LEFT, 14FT HOPPER
(Superseded to 5406320AFS)

$154.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5412112

PANEL, BOTTOM, 12FT HOPPER

$

$

Currently unavailable

7

Snapper Pro 5412113

PANEL, FRONT, 12FT HOPPER

$

$

Currently unavailable

8

Snapper Pro 5412102A

PANEL, TOP, 12FT HOPPER - BLK
(Superseded to 5412102AFS)

$157.99

$

Usually ships in 2-12 days

0

9

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

10

Snapper Pro 5412105A

STRIP, SHORT CLAMP, 12FT HOPPER - BLK

$

$

Currently unavailable

11

Snapper Pro 5412106A

STRIP, LONG CLAMP, 12FT SCREEN - BLK

$

$

Currently unavailable

12

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

14

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5412119A

BAR, DEFLECTOR, 12FT HOPPER - BLK

$

$

Currently unavailable

20

Snapper Pro 5104200

DEFLECTOR, RUBBER, 12FT HOPPER

$

$

Currently unavailable

21

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5412117A

WELD, LATCH ASSY, 12FT HOPPER - BLK
(Superseded to 5412117AFS)

$201.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025607

WASHER, #12 SAE FLAT, .25X.531X.051, CZ
(Superseded to 5025607FS)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5412118A

WELD, GATE FRAME, 12FT HOPPER - BLK
(Superseded to 5412118AFS)

$260.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5412116A

WELD, ARCH ASSEMBLY, 12FT HOPPER - BLK

$

$

Currently unavailable

26

Snapper Pro 5406463A

BRACKET, GATE LATCH, LEFT - BLK

$

$

Currently unavailable

27

Snapper Pro 5406464A

BRACKET, GATE LATCH, RIGHT - BLK

$

$

Currently unavailable

28

Snapper Pro 5405711A

PLATE, HINGE RIGHT, HOPPER - BLK

$

$

Currently unavailable

29

Snapper Pro 5405710A

PLATE, HINGE LEFT, HOPPER - BLK

$

$

Currently unavailable

30

Snapper Pro 5412111

PANEL, GATE, 12FT HOPPER
(Superseded to 5412111FS)

$243.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

32

Snapper Pro 1761690HYP

STRAP, ROCKER SHAFT

$7.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5406760A

BRACKET, RIB, HOPPER - BLK
(Superseded to 5406760AFS)

$26.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 7090496YP

RHSSNB, 1/4C X1 GR5 Z

$3.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

36

Snapper Pro 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

37

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
