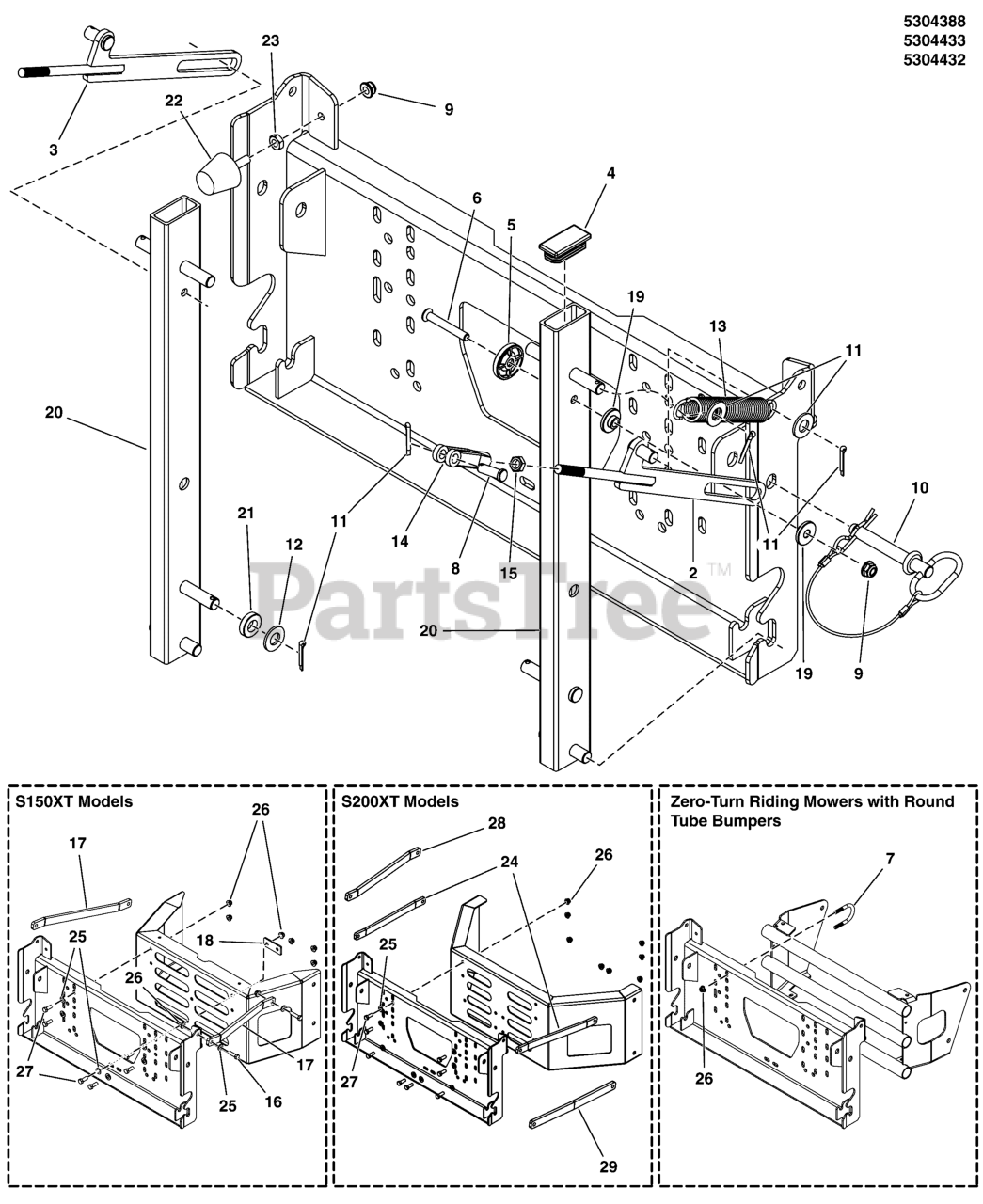

5600900 - Snapper Pro 61" iCD Turbo-Pro Max EZ Dump XL 14 cu. ft. Hopper for 200XT, 210 Hopper Mount Group - 12 cu. Ft. & 14 cu. Ft. Hoppers Parts Diagram

61" iCD Turbo-Pro Max EZ Dump XL 14 cu. ft. Hopper for 200XT, 210

Hopper Mount Group - 12 cu. Ft. & 14 cu. Ft. Hoppers Parts Diagram

  • Title

1

Snapper Pro 5414452A

WELD, HOPPER MOUNT, ZTR - BLK
(Superseded to 5414452AFS)

$314.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5414565A

WELD, RIGHT LATCH PULL, ZTR - BLK
(Superseded to 5414565AFS)

$44.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5414566A

WELD, LEFT LATCH PULL, ZTR - BLK
(Superseded to 5414566AFS)

$44.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102392

PLUG, 1 X 2, 10-14 GA. TUBING
(Superseded to 5102392FS)

$6.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5102701

SPACER, .34 X 1.54 X .25, PL
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025303X18

SCREW, 5/16-18X2.25, FLAT HEAD SOC, CZ

$

$

Currently unavailable

7

Snapper Pro 5100009

U-BOLT, 3/8 X 1-1/4
(Superseded to 5100009SM)

Note: (Models w/ Round Tube Bumpers Only)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, PLATED
(Superseded to 5025214X9SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5100013

PIN, HITCH, .50 X 3.25 W/ LAY
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 80002736

PIN, 3/32 X .750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

13

Snapper Pro 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

14

Snapper Pro 5021171

CLEVIS 3/8-24, PLASTIC
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

17

Snapper Pro 5414579A

BAR, STAY STRAP, S150XT-52 - BLK

Note: (S150XT Models Only)

$

$

Currently unavailable

18

Snapper Pro 5414580A

PLATE, BACKER, 150XT - BLK

Note: (S150XT Models Only)

$

$

Currently unavailable

19

Snapper Pro 1723244

SPACER,HYDRAULIC LIFT PIVOT
(Superseded to 1723244SM)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5414454A

WELD, SUPPORT TUBE, HOPPER - BLK
(Superseded to 5414454AFS)

$112.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101376

SPACER, .52 X 1.00 X .25, CZ
(Superseded to 5101376FS)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

23

Snapper Pro 5025388

NUT, 5/16-18 HEX JAM
(Superseded to 5025388YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5414581A

BAR, STAY STRAP, S200XT-61 - BLK
(Superseded to 5414581AFS)

Note: (S200XT Models w/ 14 cu. Ft. Hopper Only)

$27.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

28

Snapper Pro 5414582A

BAR, LEFT STAY STRAP, S200XT, 12FT - BLK

Note: (S200XT Models w/ 12 cu. Ft. Hopper Only)

$

$

Currently unavailable

29

Snapper Pro 5414583A

BAR, RIGHT STAY STRAP, S200XT, 12FT, BLK

Note: (S200XT Models w/ 12 cu. Ft. Hopper Only)

$

$

Currently unavailable
