5600885 - Snapper Pro Bagger Mount Kit for 48/52" Mower Kit Components - 5600885 Parts Diagram

Bagger Mount Kit for 48/52" Mower

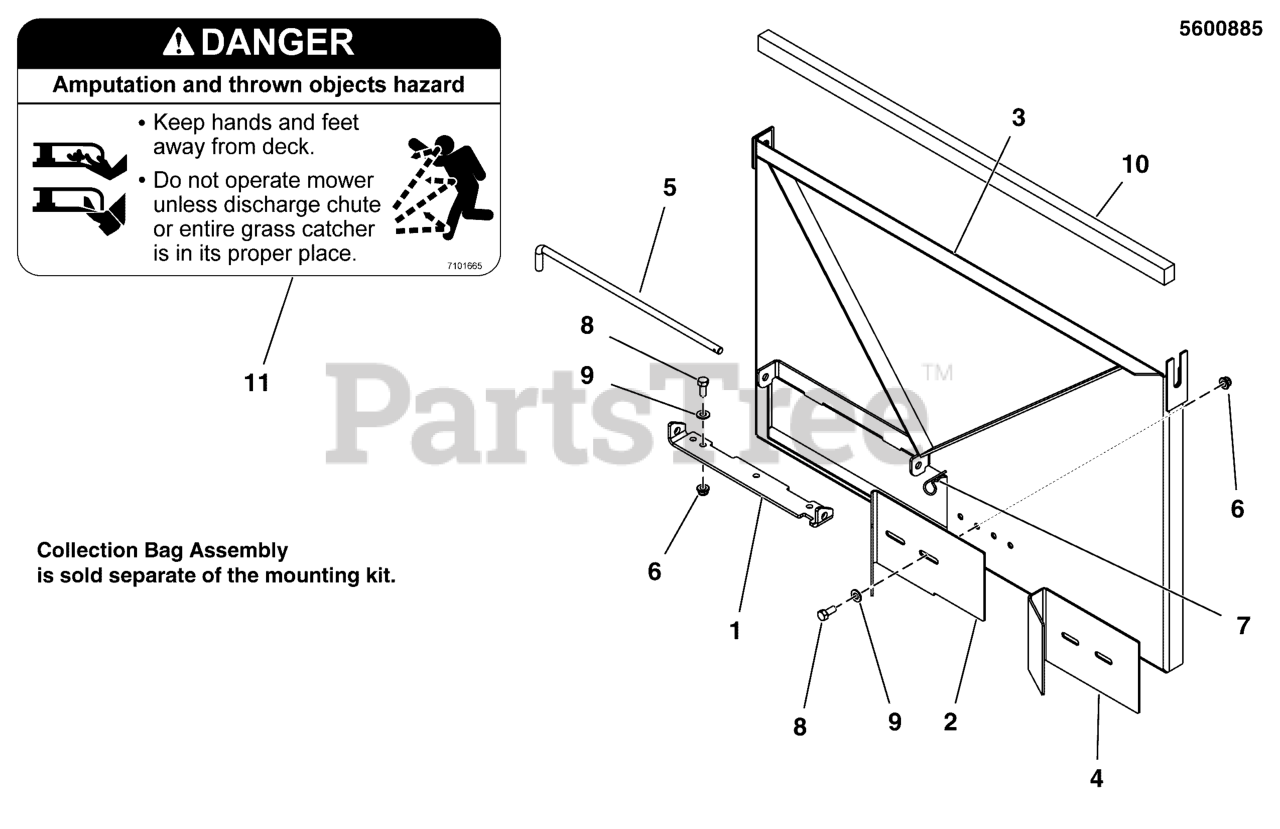

Kit Components - 5600885 Parts Diagram

  • Title
1

Snapper Pro 5404380A

PLATE, BAGGER MOUNT BRACKET - BLACK
(Superseded to 5404380AFS)

$35.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5404381A

PLATE, BLOCK OFF PLATE, 48/52" - BLACK
(Superseded to 5404381AFS)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5404382A

WELD, BAGGER MOUNT, 48/52" - BLACK
(Superseded to 5404382AFS)

Note: (Units with 48" Decks)

$272.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5412433A

PLATE, BLOCK OFF, 52 - BLK
(Superseded to 5412433AFS)

Note: (Units with 52" Decks)

$26.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101749

ROD, BAGGER MOUNT, 48/52"
(Superseded to 5101749FS)

$25.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Snapper Pro 5050913X30P5

FOAM, 3/4 X 1 X 30.50

$

$

Currently unavailable

11

Snapper Pro 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0
