5600884 - Ferris Bagger Mount Kit for 32/36" Mower Kit Components - 5600884 Parts Diagram

Bagger Mount Kit for 32/36" Mower

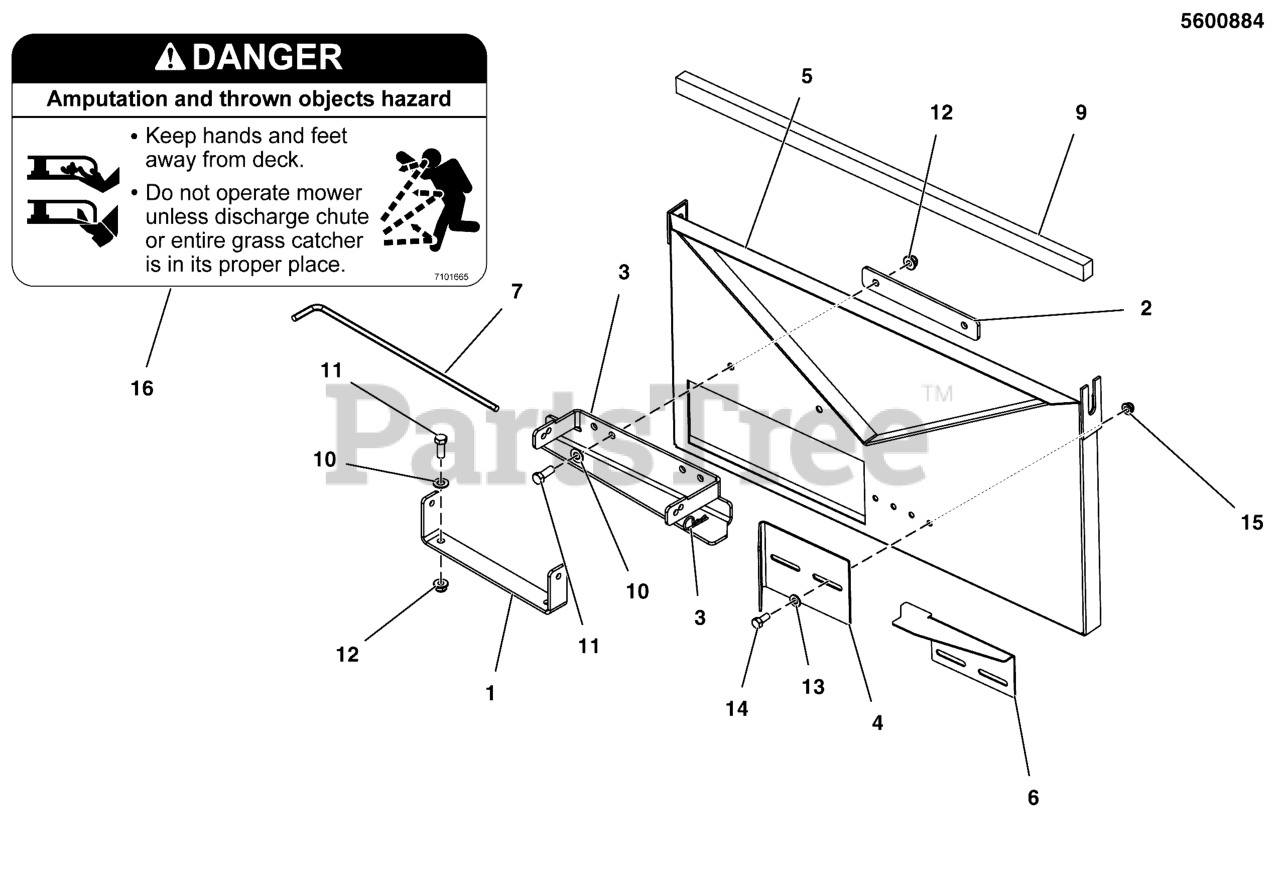

Kit Components - 5600884 Parts Diagram

  • Title

1

Ferris 5404388A

PLATE, BAGGER MNT BRKT, DECK, 36"-BLK
(Superseded to 5404388AYP)

$38.99

$

Usually ships in 2-12 days

0

2

Ferris 5404384A

PLATE,BAGGER MNT BRACKET,SUPRT,32/36-BLK

$

$

Not available

3

Ferris 5404385A

PLATE, BAGGER MOUNT BRACKET, 32/36"-BLK
(Superseded to 5404385AYP)

$50.99

$

Usually ships in 2-12 days

0

4

Ferris 5404386A

PLATE, BLOCK OFF PLATE, 32/36"-BLK
(Superseded to 5404386AYP)

$17.99

$

Usually ships in 2-12 days

0

5

Ferris 5404389A

WELD, BAGGER MOUNT, 32/36" - BLK

$

$

Not available

6

Ferris 5413739A

PLATE, 32/36 BAGGER, BLOCK-OFF - BLK

Note: (FW25 & SW25 Models)

$

$

Currently unavailable

7

Ferris 5046773

ROD, QUICK CONNECT
(Superseded to 5046773YP)

$27.99

$

Usually ships in 2-12 days

0

8

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5050913X28P25

FOAM, 3/4 X 1 X 28.25
(Superseded to 5050913X28P25FS)

$30.99

$

Usually ships in 2-12 days

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 6

0
