5600864 - Simplicity 61" iCD Turbo-Pro Max 3-Bag Soft Top Grass Collection System for IS 3200, 320, ISX 3300 2-Bag & 3-Bag Mount Group - Soft Top System Parts Diagram

61" iCD Turbo-Pro Max 3-Bag Soft Top Grass Collection System for IS 3200, 320, ISX 3300

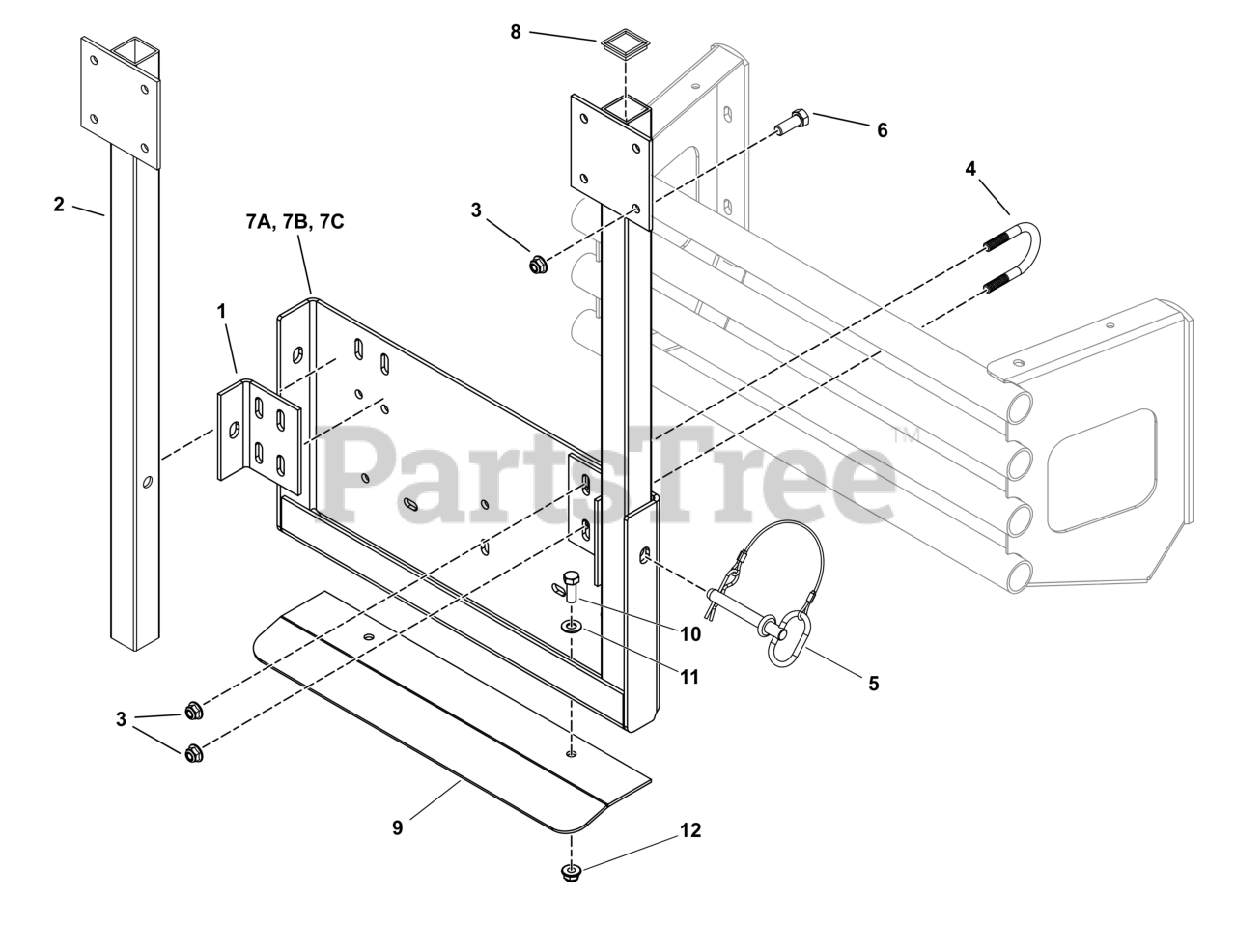

2-Bag & 3-Bag Mount Group - Soft Top System Parts Diagram

  • Title

1

Simplicity 5402665AA

MOUNT, TAB, BLACK

$

$

Currently unavailable

2

Simplicity 5400043AA

WELD, MOUNT, POST - BLK

$

$

Currently unavailable

3

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5100009

U-BOLT, 3/8 X 1-1/4
(Superseded to 5100009SM)

$6.49

$

Usually ships in 2-12 days

0

5

Simplicity 5100013

PIN, HITCH, .50 X 3.25 W/ LAY
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7A

Simplicity 5408631AA

WELD, BAGGER MNT

Note: (2-Bag Systems)

$

$

Currently unavailable

7B

Replace with: 5422549AA

Note: (3-Bag Systems - s/n: 11/02/2021 & below)

$

$

Not available

7C

Simplicity 5422549AA

WELD, 3-BAG MOUNT, ALL - BLK
(Superseded to 5422549AAFS)

Note: (3-Bag Systems - s/n: 11/04/2021 & above)

$225.99

$

Usually ships in 2-12 days

0

8

Simplicity 5022848

CAP, PLASTIC, 1-1/2" X 1-1/2
(Superseded to 5022848SM)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5422431AA

PLATE, BAGGER MOUNT, DEFLECTOR - BLK

Note: (ISX3300 Models Only)

$

$

Currently unavailable

10

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (ISX3300 Models Only)

$3.99

$

In Stock, Qty 6

0

11

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (ISX3300 Models Only)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (ISX3300 Models Only)

$4.49

$

In Stock, Qty 20+

0
