5600837 - Ferris 60" Broom with Weights for 800X Hitch Assembly Parts Diagram

60" Broom with Weights for 800X

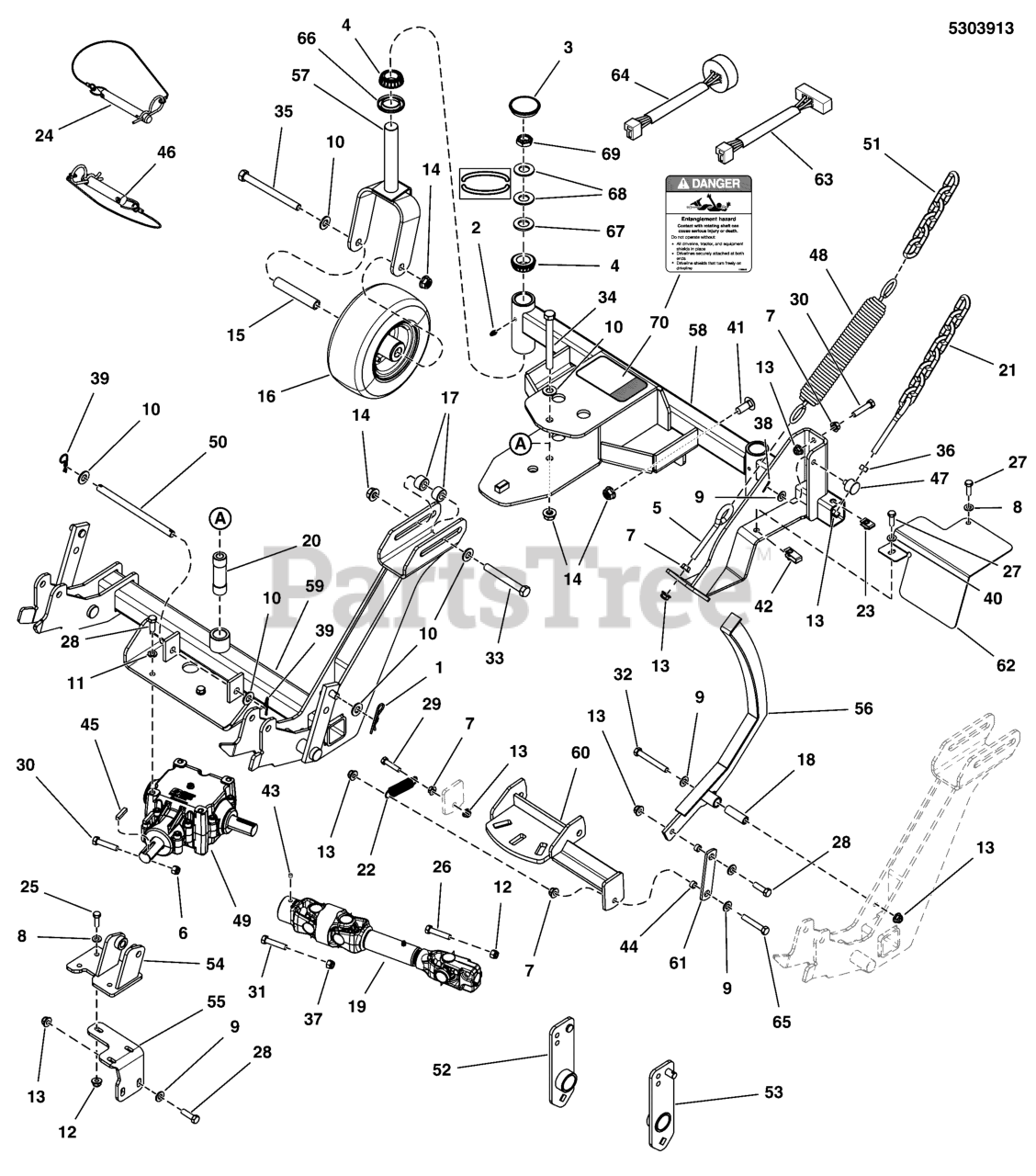

Hitch Assembly Parts Diagram

  • Title

1

Ferris 1960033

CLIP-HAIRPIN
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

2

Ferris 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

3

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

4

Ferris 5020884

BEARING, TAPERED ROLLER
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

5

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

6

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

11

Ferris 5025171

WASHER, 3/8 LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5041657

AXEL, CASTER WHEEL
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

16

Ferris 5100790

TIRE ASSM, 9 X 3.5 - 4, FF, CASTER
(Superseded to 5100790FS)

$116.99

$

In Stock, only 2 left!

0

17

Ferris 5101161

SPACER, .52 X 1.00 X .63 YZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

18

Ferris 5103274

SPACER, .39 X .63 X 1.94

$

$

Currently unavailable

19

Ferris 5104281

DRIVE SHAFT, BROOMHEAD

$818.99

$

Usually ships in 2-12 days

0

20

Ferris 5104322

SPACER, .52 X .99 X 3.50

$26.99

$

Usually ships in 2-12 days

0

21

Ferris 5104357

HANGER, BROOM - 8LINK

$62.99

$

Usually ships in 2-12 days

0

22

Ferris 1608395

SPRING-EXTN 1.040ODX 04.000LG .105WIRE D

$15.99

$

Usually ships in 2-12 days

0

23

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

24

Ferris 5023082

HITCH PIN ASSY., 1/2 X 3.50
(Superseded to 5023082SM)

$22.99

$

Usually ships in 2-12 days

0

25

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

26

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 CZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

28

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

29

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

31

Ferris 5025613

SOC HD CAP SCREW, 3/8-24 X 3"

$

$

Currently unavailable

32

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 2 left!

0

33

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

34

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

35

Ferris 5025017X48

BOLT, 1/2-13 X 6" GD5
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

36

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

37

Ferris 5025097

NUT, 3/8-24 HEX NYLON LOCK
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

38

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

39

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

40

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

41

CARRIAGE BOLT, 1/2-13 X 1-1/2"

$

$

Not available

42

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

43

Ferris 5025563

SET SCREW, 3/8-16 X 1/2 KNURLED
(Superseded to 5025563FS)

$7.49

$

Usually ships in 2-12 days

0

44

Ferris 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

45

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

46

Ferris 5100179

HITCH PIN ASSEMBLY, 1/2" X 2.50"
(Superseded to 5100179SM)

$29.99

$

Usually ships in 2-12 days

0

47

Ferris 5100985

ADJUSTER, BRAKE LINKAGE
(Superseded to 5100985YP)

$23.99

$

Usually ships in 2-12 days

0

48

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, Qty 5

0

49

Ferris 5104293

GEARBOX, SUPERIOR, 3:1

$1067.99

$

Usually ships in 2-12 days

0

50

Ferris 5104325

ROD, LATCH PIVOT, BROOM

$

$

Currently unavailable

51

Ferris 5104356X6

CHAIN, PEERLESS, 4/0 STRAIGHT COIL, 6-LINK

$

$

Currently unavailable

52

Ferris 5405692A

WELD., SPRING PVT, SNOW, LH
(Superseded to 5405692AFS)

$65.99

$

Usually ships in 2-12 days

0

53

Ferris 5405693A

WELD., SPRING PVT, SNOW, RH
(Superseded to 5405693AFS)

$65.99

$

Usually ships in 2-12 days

0

54

Ferris 5405761A

WELD., ACTUATOR MOUNT
(Superseded to 5405761AFS)

$93.99

$

Usually ships in 2-12 days

0

55

Ferris 5405762A

PLATE, ACTUATOR MNT. SUPPORT
(Superseded to 5405762AFS)

$29.99

$

Usually ships in 2-12 days

0

56

Ferris 5408774A

WELD, BROOM, FOOT PEDAL, S800X

$

$

Currently unavailable

57

Ferris 5412328A

WELD, CASTER YOKE

$

$

Currently unavailable

58

Ferris 5412391A

WELD, MOUNT, BROOM

$

$

Currently unavailable

59

Ferris 5412413A

WELD, MAIN FRAME, BROOM

$

$

Currently unavailable

60

Ferris 5412460A

WELD, ANGLE LOCK

$

$

Currently unavailable

61

Ferris 5412619A

BAR, FOOT PEDAL LINK

$

$

Currently unavailable

62

Ferris 5412645A

GUARD, DRIVESHAFT, INNER

$

$

Currently unavailable

63

Ferris 5412699

WIRE HARNESS, BROOM,S800,RECT CONN

Note: (Models with rectangular electrical connectors.)

$

$

Currently unavailable

64

Ferris 5412700

WIRE HARNESS, BROOM, S800X, ROUND CONN

Note: (Models with round electrical connectors.)

$

$

Currently unavailable

65

Ferris 5025058X14

BOLT, 3/8-16 X 1-3/4 GD5 TFL

$

$

Currently unavailable

66

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

67

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

68

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

69

Ferris 5025448

NUT, 3/4-16 HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

70

Ferris 1756843

DANGER DECAL, ENTANGLEMENT HAZARD

Note: (Oriented so that it can be read from left side of hitch.)

$

$

Currently unavailable
