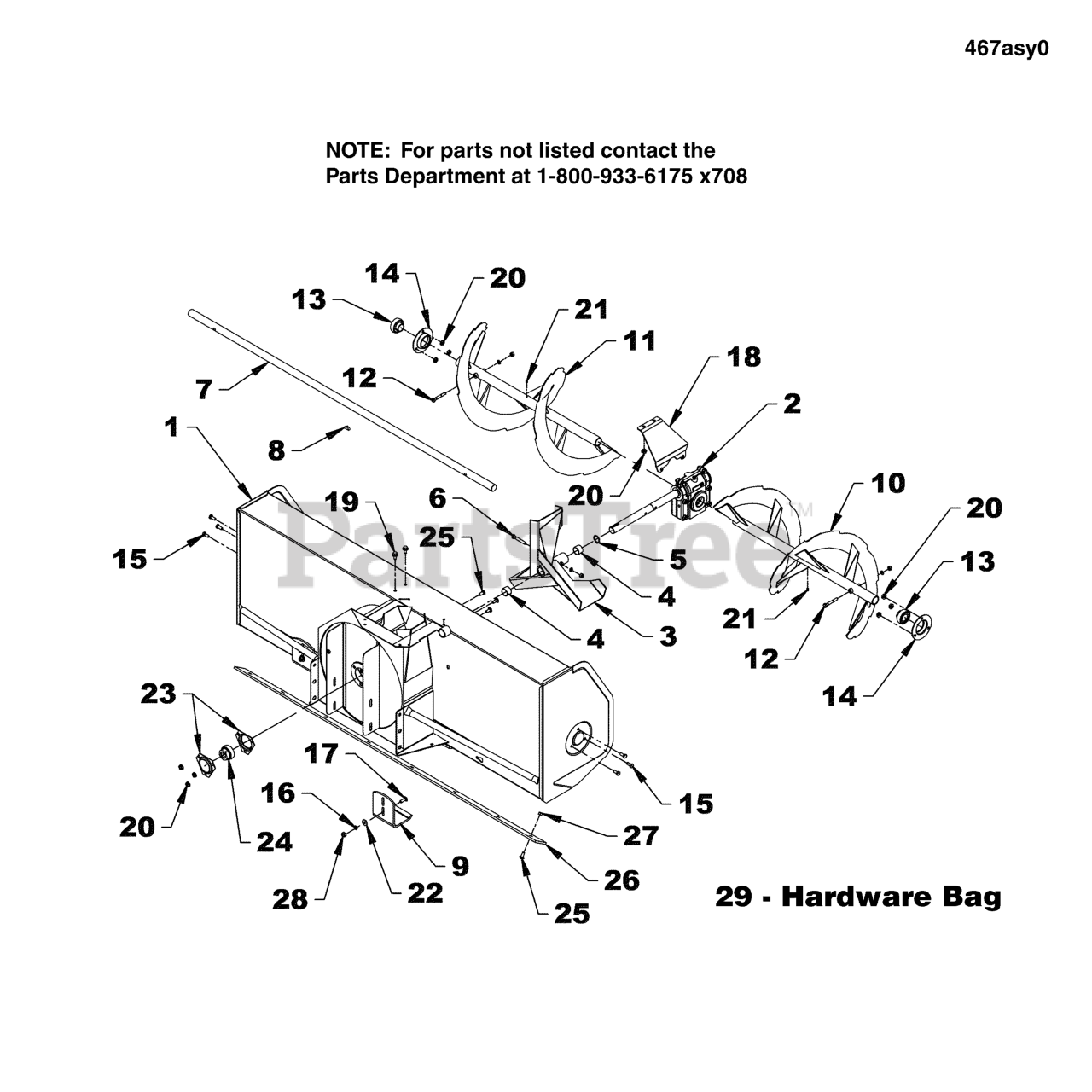

5600836 - Snapper Pro 60" Snowblower with Weights for 800X Snowblower Assembly Parts Diagram

60" Snowblower with Weights for 800X

Snowblower Assembly Parts Diagram

  • Title
1

Housing

Note: 669192

$

$

Not available

2

Snapper Pro 5101816X1

Gearbox ass'y (ccw)

Note: 4500037

$1033.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101816X2

Fan including bushings 4300055

Note: 667080

$231.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5101816X3

Bushing (iolite)

Note: 4300055

$5.99

$

Usually ships in 2-12 days

0

5

Outer retaining ring

Note: 655087

$

$

Not available

6

Snapper Pro 667786

Shear bolt 5/16" NC x 2 1/4" w/ lock & nut, gold PTD, gr8

Note: 667786

$5.99

$

Usually ships in 2-12 days

0

7

Output shaft

Note: 668462

$

$

Not available

8

Snapper Pro 5655967

Woodruff key

Note: 655967

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101816X9

Skid shoe

Note: 668464

$100.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101816X4

Auger - RH

Note: 668461

$414.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101816X5

Auger - LH

Note: 668460

$414.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5657295

Shear bolt 5/16" NC x 2 1/4" w/ lock & nut, silver PTD, gr5

Note: 657295

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5665494

Bearing with locking collar

Note: 665494

$38.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101816X6

Flange

Note: 657334

$7.49

$

Usually ships in 2-12 days

0

15

Hex. bolt 5/16" NC x 3/4" gr.5 PTD

Note: 100018

$

$

Not available

16

Lockwasher 5/16" PTD

Note: 1200003

$

$

Not available

17

Carriage bolt 5/16" x 1" gr.5 PTD

Note: 300003

$

$

Not available

18

Gearbox support

Note: 657492

$

$

Not available

19

Serrated flange bolt 5/16" NC x 3/4" lg, PTD

Note: 200083

$

$

Not available

20

Serrated flange nut 5/16" NC, PTD

Note: 900036

$

$

Not available

21

Grease fitting

Note: 654106

$

$

Not available

22

Flat washer 5/16" (Æ3/8" int.) PTD

Note: 1400003

$

$

Not available

23

Snapper Pro 5101816X7

Flange

Note: 656589

$7.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5665495

Bearing with locking collar

Note: 665495

$56.99

$

Usually ships in 2-12 days

0

25

Carriage bolt 5/16" NC x 3/4" gr.5 PTD

Note: 300002

$

$

Not available

26

Snapper Pro 5101816X8

Cutting edge

Note: 668457

$189.99

$

Usually ships in 2-12 days

0

27

Stover nut 5/16" NC PTD

Note: 1100002

$

$

Not available

28

Nylon insert nut 5/16" NC, PTD

Note: 1000005

$

$

Not available

29

Hardware bag (not illustrated)

Note: 669268

$

$

Not available
