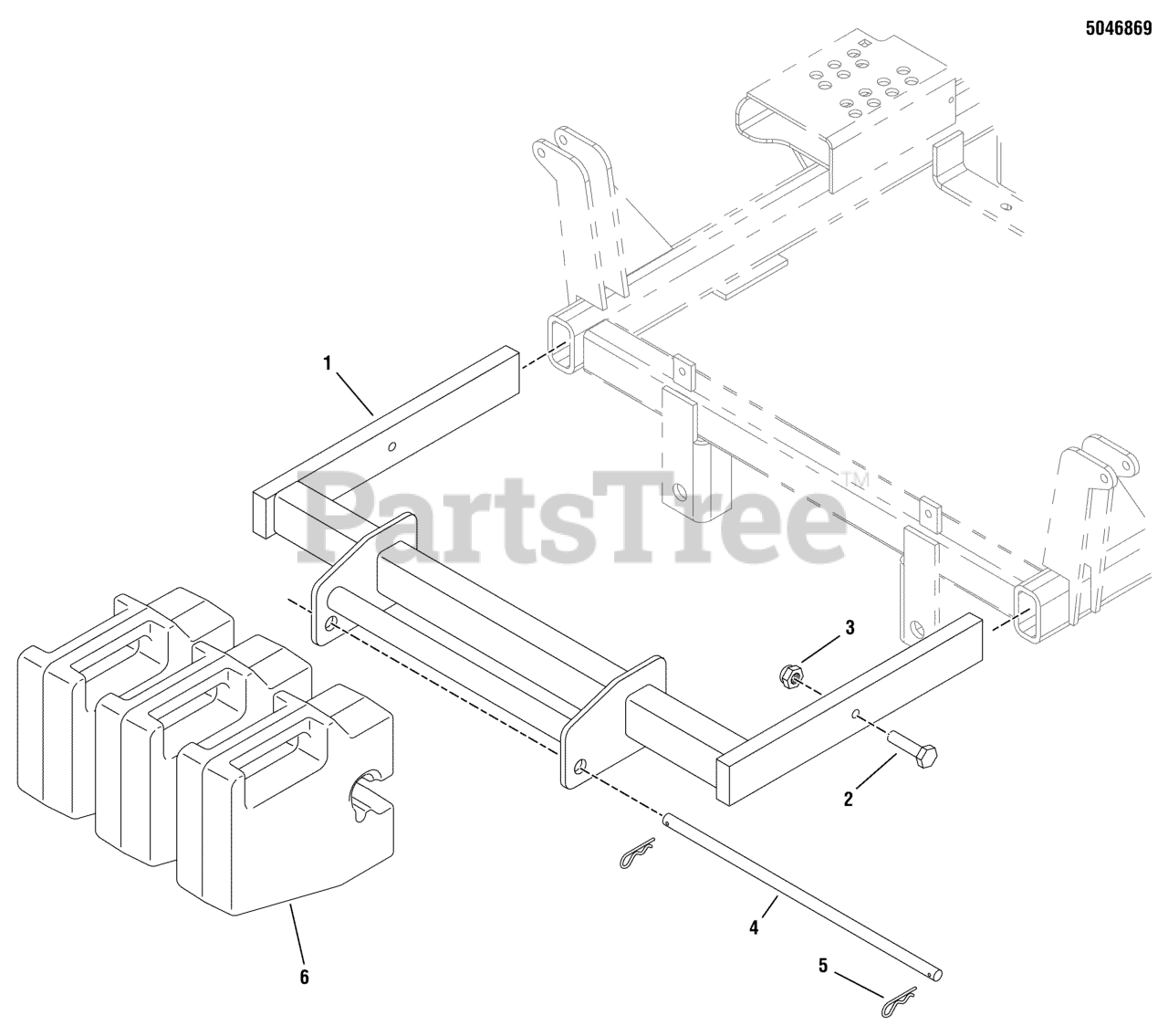

5600788 - Snapper Pro 61" iCD Turbo-Pro Max 3-Bag Hard Top Grass Collection System for 3100 Weight Mount Group, 100/150 LBS - IS3100Z Series Parts Diagram

61" iCD Turbo-Pro Max 3-Bag Hard Top Grass Collection System for 3100

Weight Mount Group, 100/150 LBS - IS3100Z Series Parts Diagram

  • Title

1

Snapper Pro 5046169A

3-BAG WEIGHT RACK WELDMENT
(Superseded to 5046169ASM)

$213.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

4

Snapper Pro 5046174A

ROD, WEIGHT RETAINER
(Superseded to 5046174ASM)

$23.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

6

Snapper Pro 1717627

WEIGHT-QUICK ATTACH 50LB SUITCASE PAINTED
(Superseded to 1692939SM)

Note: (S/N: 09/2014 & Above)

$162.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 1717627

WEIGHT-QUICK ATTACH 50LB SUITCASE PAINTED
(Superseded to 1692939SM)

Note: (S/N: 08/2014 & Below)

$162.99

$

Usually ships in 2-12 days

0
