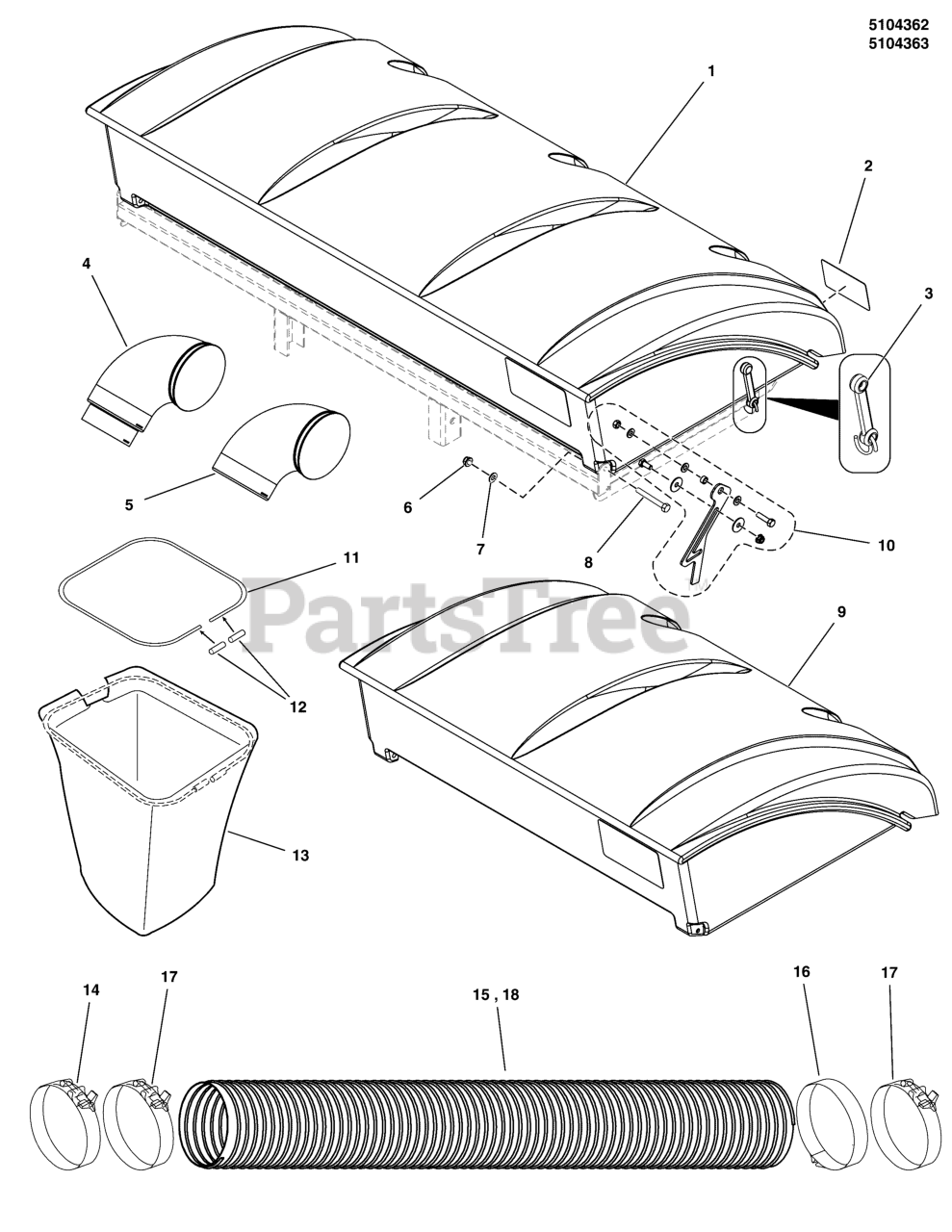

5600780 - Snapper Pro 52" iCD Turbo-Pro 2-Bag Hard Top Grass Collection System for 700, 150XT 2-Bag & 3-Bag Catcher & Cover Group Parts Diagram

52" iCD Turbo-Pro 2-Bag Hard Top Grass Collection System for 700, 150XT

2-Bag & 3-Bag Catcher & Cover Group Parts Diagram

  • Title

1

Snapper Pro 5104363X1

TOP ASSEMBLY / P3B / FERRIS - NET

Note: (3-Bag Collection System)

$1527.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5104363X3

RED REFLECTOR DECAL - NET

$6.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5104363X2

RUBBER STRAP W/HOOKS - NET

$39.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5104363X5

P2B INLET / 6 INCH / CUT
(Superseded to 84008046)

Note: (3-Bag Collection System)

$47.99

$

Usually ships in 0 days

0

5

Snapper Pro 5104362X2

P2B INLET / 6 INCH / CUT
(Superseded to 5104363X5)

Note: (2-Bag Collection System)

$47.99

$

Usually ships in 0 days

0

6

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

9

Snapper Pro 5104362X1

TOP ASSEMBLY / P2B+ / FERRIS - NET

Note: (2-Bag Collection System)

$611.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5104363X7

VAC KIT HW / P3B / FERRIS - NET

$64.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104363X8

PART B0227 BAG RING / GENERIC - NET

Note: (Qty: 2 - 2-Bag Collection System)

$115.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5104363X9

PART J0274 VINYL CAP - NET

Note: (Qty: 4 - 2-Bag Collection System)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5104878

BAG COLLECTION SYSTEM SMALL
(Superseded to 5104878FS)

Note: (Qty: 2 - 2-Bag Collection System)

$142.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022876

CLAMP, HOSE, LOWER
(Superseded to 5022876SM)

Note: (FAST-Vac & TURBO-Pro MAX Systems)

$46.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103646

HOSE, FLEXIBLE, 7" DIA. X 58"
(Superseded to 5103646YP)

Note: (FAST-Vac & TURBO-Pro MAX Systems)

$318.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5022875

CLAMP, HOSE, UPPER
(Superseded to 5022875SM)

Note: (FAST-Vac & TURBO-Pro MAX Systems)

$45.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5103469

CLAMP, 6" UPPER & LOWER, COLLECTORS
(Superseded to 5103469YP)

Note: (TURBO-Pro Systems)

$39.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5103471

HOSE, FLEXIBLE, 6" DIA X 54"
(Superseded to 5103471YP)

Note: (TURBO-Pro Systems)

$186.99

$

Usually ships in 2-12 days

0
