5600761 - Snapper Pro 52" iCD Turbo-Pro Max Electric Dump from Seat Collection System for IS2100Z Blower Pulley Group, TURBO-Pro MAX Parts Diagram

52" iCD Turbo-Pro Max Electric Dump from Seat Collection System for IS2100Z

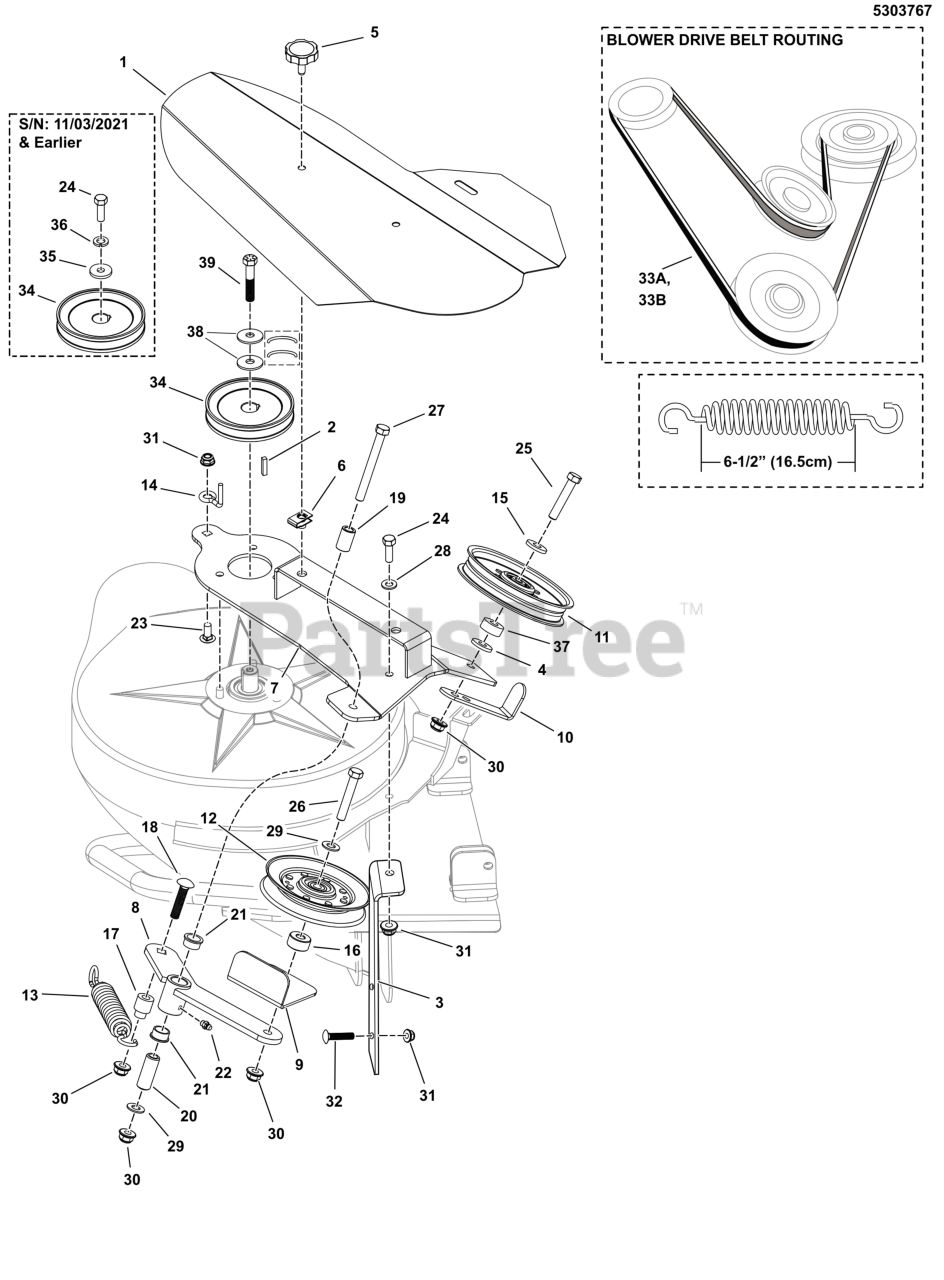

Blower Pulley Group, TURBO-Pro MAX Parts Diagram

  • Title

1

Snapper Pro 5600740

HOOD W/ DECALS - TURBO PRO-MAX
(Superseded to 5600740FS)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5050403X4

KEY, 3/16" SQ. X 3/4
(Superseded to 5050403X4YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5411116AA

BRACKET, FRONT SUPPORT, 61" COM - BLK

Note: (Date of Manufacture: Before 11/02/2021)

$

$

Currently unavailable

3

Snapper Pro 5422421AA

BRACKET, PLATE SUPPORT, TMAX-BLK
(Superseded to 84008034)

Note: (Date of Manufacture: After 11/03/2021)

$46.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5101731

KNOB, 5/16-18 X 1.00, ROSETTE BLACK
(Superseded to 5101731YP)

$10.99

$

In Stock, only 4 left!

0

6

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5412606

ASSEMBLY, PULLEY PLATE, T-MAX (52,60,61)

$154.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5409892

ASSEMBLY, IDLER ARM - TURBO-VAC
(Superseded to 5409892YP)

Note: (Includes Bushings and Fitting)

$121.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5409609AA

RETAINER, BELT, WIDE - BLK
(Superseded to 5409609AFS)

$33.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5409610AA

RETAINER, BELT
(Superseded to 5409610AFS)

Note: (Refer to Note: *)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 1725408

PULLEY-IDLER 04.00 OD 0.378ID 1.06 W BRG
(Superseded to 1725408SM)

$47.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5103456

PULLEY-IDLER-V, 4.85OB, .38ID
(Superseded to 84004874)

$33.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

14

Snapper Pro 5103488

BELT KEEP, .19 X 1.25 - BK
(Superseded to 5103488YP)

$8.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 80003616

WSHR,.406X1.0X.134,FLT,TYPE A,ZINC/CLEAR
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

16

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50, PM, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

17

Snapper Pro 1706644

SPACER,3/8X3/4X15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 3 left!

0

18

Snapper Pro 80004559

BOLT,3/8-16X1.750,SHORT NECK CRRG,ZC/CL
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

19

Snapper Pro 5101933

SPACER, .39 X .63 X 1.00, YZ
(Superseded to 5101933YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5102322

SPACER, .38 X .625 X 1.62, YZ
(Superseded to 5102322YP)

$12.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 1676148

BUSHING-0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

23

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

24

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

Note: (Qty: 2 - S/N: 11/03/2021 and Earlier)

$3.49

$

In Stock, Qty 17

0

25

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

26

Snapper Pro 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

29

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

31

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

33A

Snapper Pro 5104289

BELT, A SEC, 81.1"EL, ARAMID, WRPD
(Superseded to 5104289FS)

Note: (52" Mower Decks)

$71.99

$

Usually ships in 2-12 days

0

33B

Snapper Pro 84008031

BELT

Note: (61" Mower Decks)

$61.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5103836

PULLEY, COMMERCIAL PRO
(Superseded to 5103836FS)

$50.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 1919381

WASHER-0.312(0.34IDX1.00ODX.13THK)BLK
(Superseded to 1919381SM)

Note: (S/N: 11/03/2021 and Earlier)

$4.49

$

In Stock, only 2 left!

0

36

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

Note: (S/N: 11/03/2021 and Earlier)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 1667811

SPACER-0.390ID 0.90 OD 0.34 LG P'MTL YEL
(Superseded to 1667811SM)

$3.49

$

In Stock, Qty 20+

0

38

Snapper Pro 5106588

BELLEVILLE WASHER, 1.187X.39X.089, SS
(Superseded to 5106588FS)

Note: (S/N: 11/04/2021 and Later)

$5.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025676X16

BOLT, 3/8-16 X 2.0, GD8, PHOS

Note: (S/N: 11/04/2021 and Later)(Refer to Note: **)

$

$

Currently unavailable
