5600660 - Simplicity 52" 3-Bag Collection System for Citation XT SN Series Blower Mount Group - 52" Models (5301858_5303294) Parts Diagram

52" 3-Bag Collection System for Citation XT SN Series

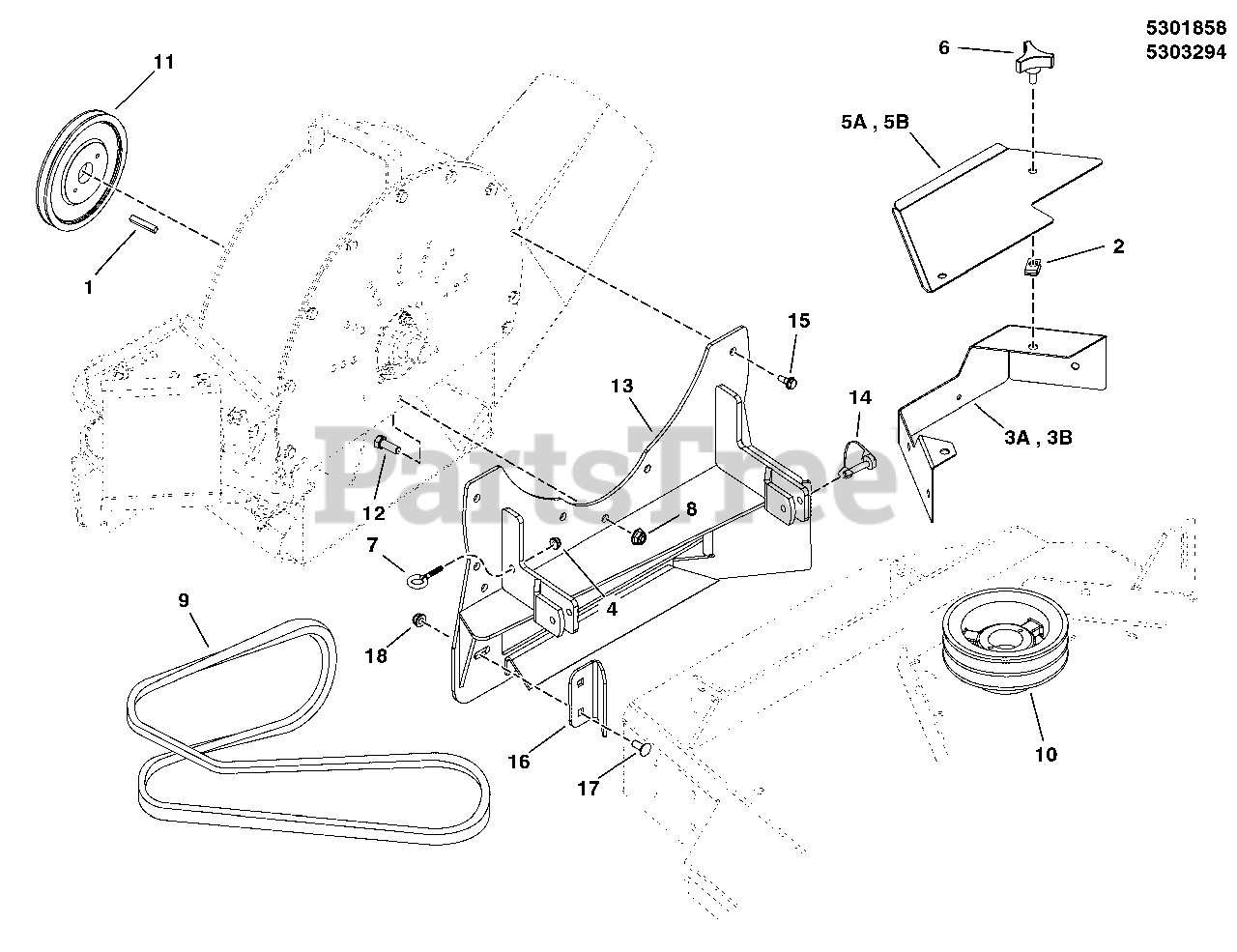

Blower Mount Group - 52" Models (5301858_5303294) Parts Diagram

  • Title
1

Simplicity 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

2

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3a

Simplicity 5405962A

GUARD, DECK - BLACK
(Superseded to 5405962AYP)

$27.99

$

Usually ships in 2-12 days

0

3b

Simplicity 5400007A

GUARD, DECK - BLACK
(Superseded to 5400007ASM)

Note: (Citation XT Models)

$31.99

$

Usually ships in 2-12 days

0

4

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

5a

Simplicity 5405961A

GUARD, DECK - BLACK
(Superseded to 5405961AYP)

$32.99

$

Usually ships in 2-12 days

0

5b

Simplicity 5061858A

GUARD, DECK - BLACK
(Superseded to 5061858ASM)

Note: (Citation XT Models)

$60.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022319

KNOB, PLASTIC, 5/16-18 X 3/4
(Superseded to 5022319SM)

$7.99

$

In Stock, only 4 left!

0

7

Simplicity 5022205

EYEBOLT, 1/4-20 X 2
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5022844

BELT, A-SEC, 92.00EL, ARAMID, WRPD
(Superseded to 5022844FS)

$59.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023177

PULLEY-BLOWER 52 DECK
(Superseded to 5023177SM)

$257.99

$

Usually ships in 2-12 days

0

11

Simplicity 5102247

PULLEY, BC-46, 4.55 OD X 1.00 ID
(Superseded to 5102247FS)

$55.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

13

Simplicity 5408253A

WELD, BLOWER MOUNT, 52 - BLK
(Superseded to 5302764YP)

$321.99

$

Usually ships in 2-12 days

0

14

Simplicity 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

In Stock, only 1 left!

0

15

Simplicity 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

17

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5408292A

BRACKET,DEFLECTOR PLATE,52iCD 2011 - BLK
(Superseded to 5408292AYP)

$17.99

$

Usually ships in 2-12 days

0
