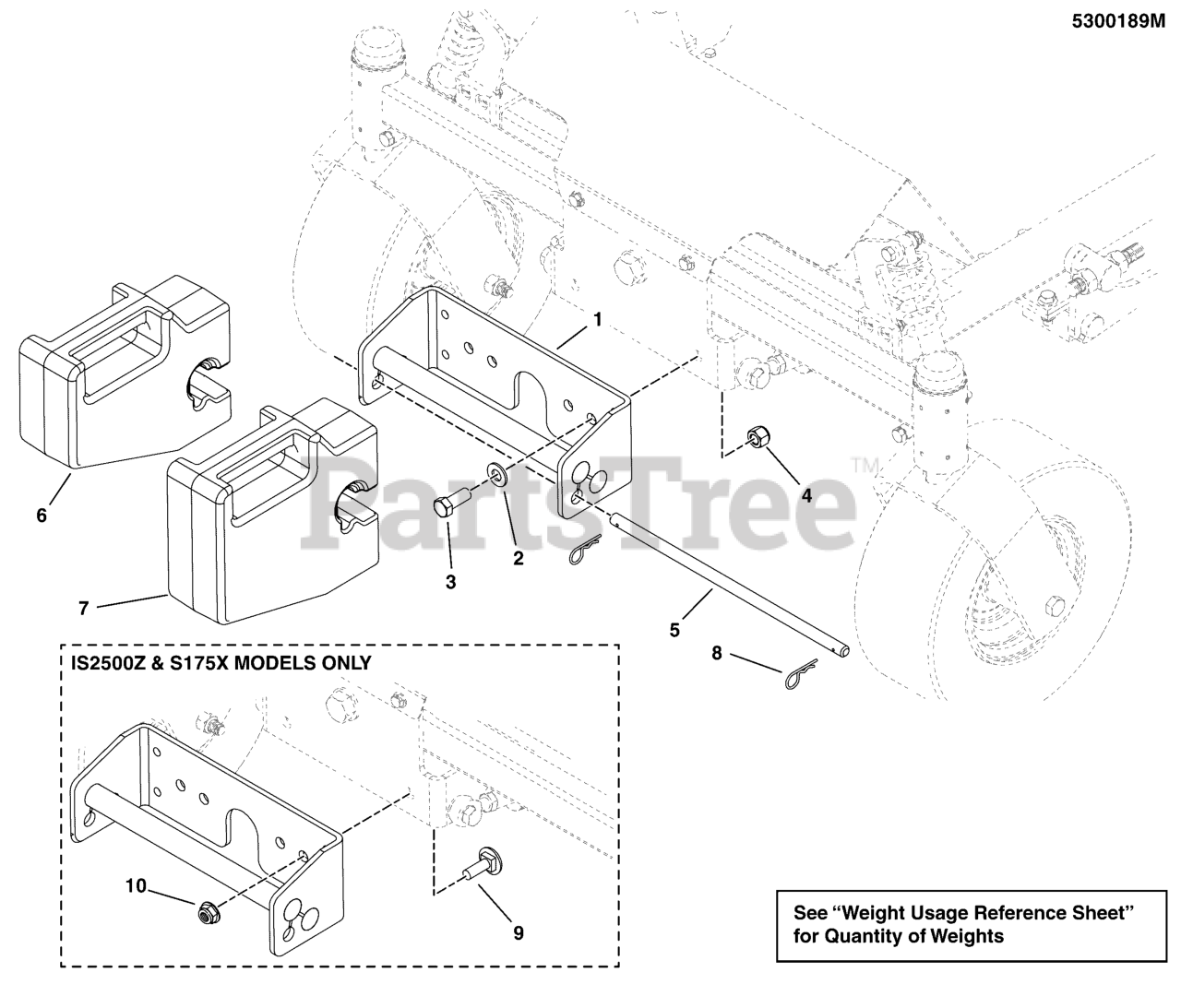

5600609 - Snapper Pro 48" Turbo-Pro 2-Bag Grass Collection System Weight Mount Group Parts Diagram

48" Turbo-Pro 2-Bag Grass Collection System

Weight Mount Group Parts Diagram

  • Title

1

Snapper 5049082A

HOLDER ASMY-WEIGHT CONS Z CAT - BLACK
(Superseded to 5049082ASM)

$233.99

$

Usually ships in 2-12 days

0

2

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

3

Snapper 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

4

Snapper 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

5

Snapper 5049143

ROD-.500DIA 13.75LG YELLOW CON
(Superseded to 5049143SM)

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 1700000

WEIGHT-QUICK ATTACH 33LBS PAINTED BLACK
(Superseded to 1691319SM)

$168.99

$

In Stock, only 1 left!

0

7

Snapper 1717627

WEIGHT-QUICK ATTACH 50LB SUITCASE PAINTED
(Superseded to 1692939SM)

$162.99

$

Usually ships in 2-12 days

0

8

Snapper 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 5025324X10

BOLT, CARRIAGE 1/2-13 X 1-1/4 GD.5
(Superseded to 5025324X10YP)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
