56006 - Toro 25" Premium Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) MOWER HOUSING ASSEMBLY Parts Diagram

25" Premium Rear-Engine Riding Mower

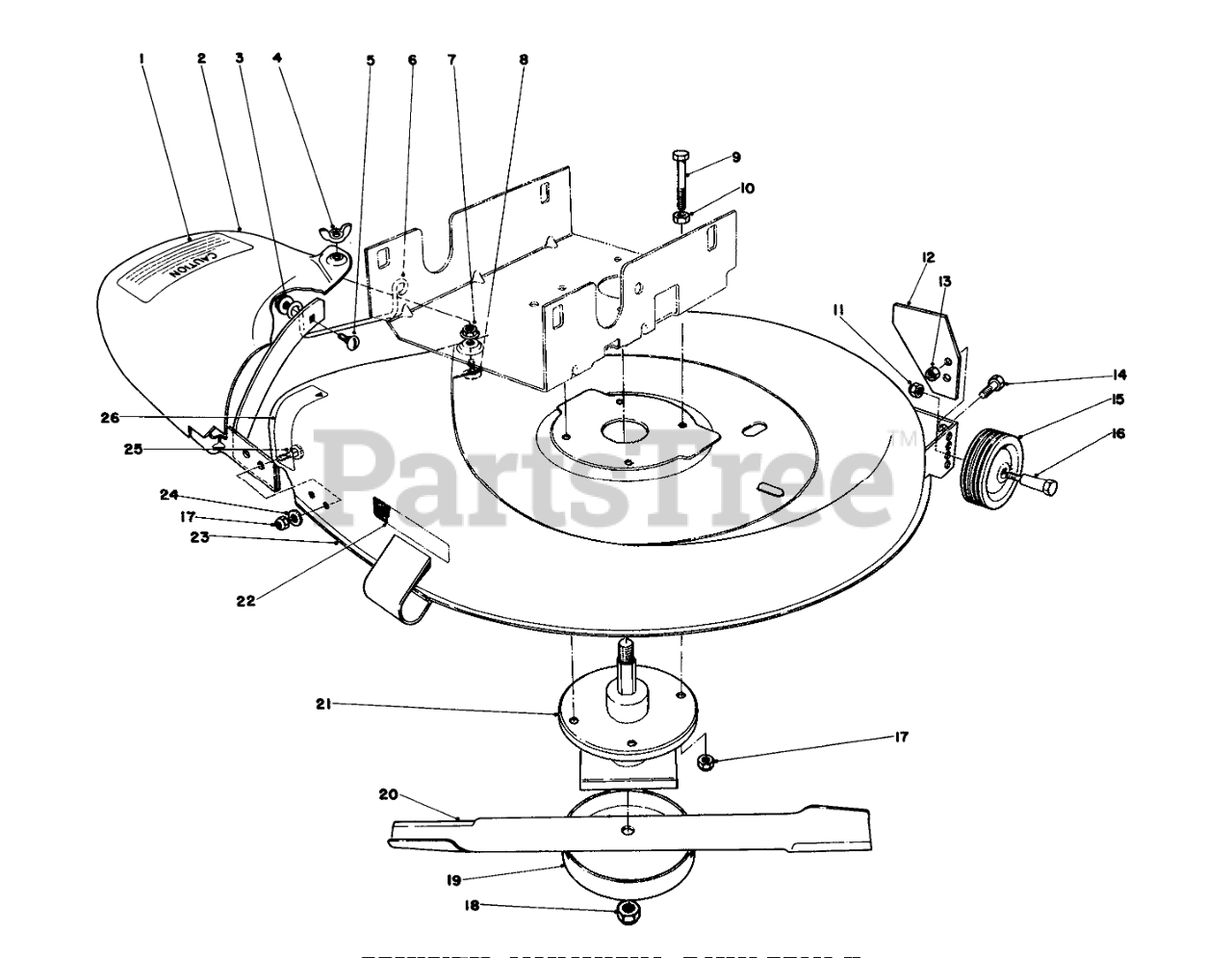

MOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2890

Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

2

Toro 24-6730

DEFLECTOR WA R
(Superseded to 24-6730-01)

$

$

Not available

3

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

4

Toro 3-2625

Wing Nut

$

$

Not available

5

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

6

Toro 17-0960

Bracket Foot Guard

$

$

Not available

7

Toro 3290-147

PAL NUT

$

$

Not available

8

Toro 26-0430

Carriage Bolt

$

$

Not available

9

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 14

0

10

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

11

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

12

Toro 39-6500

Deck Stop

$

$

Not available

13

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

14

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

15

Toro 11-1580

Wheel
(Superseded to 92-6036)

$9.49

$

Usually ships in 3-6 days

0

16

Toro 3-2652

Bolt

$

$

Not available

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 17-0980

Nut

$11.99

$

In Stock, only 4 left!

0

19

Toro 7-3522

Cup
(Superseded to 92-6313)

$53.99

$

In Stock, only 1 left!

0

20

Toro 26-8060

Blade
(Superseded to 26-8060-03)

$56.99

$

Usually ships in 3-6 days

0

21

Toro 19-2140

Mower Spindle

$

$

Not available

22

Toro 26-4820

Decal-Deck Inst.

$

$

Not available

23

Toro 24-6700

HOUSING WA R

$

$

Not available

24

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

26

Toro 25-5810

Decal Housing

$

$

Not available
