56005 - Toro 25" Sportsman Rear-Engine Mower (SN: 002000001 - 002999999) (1972) STARTER MOTOR 32468B (ELECTRIC) Parts Diagram

25" Sportsman Rear-Engine Mower

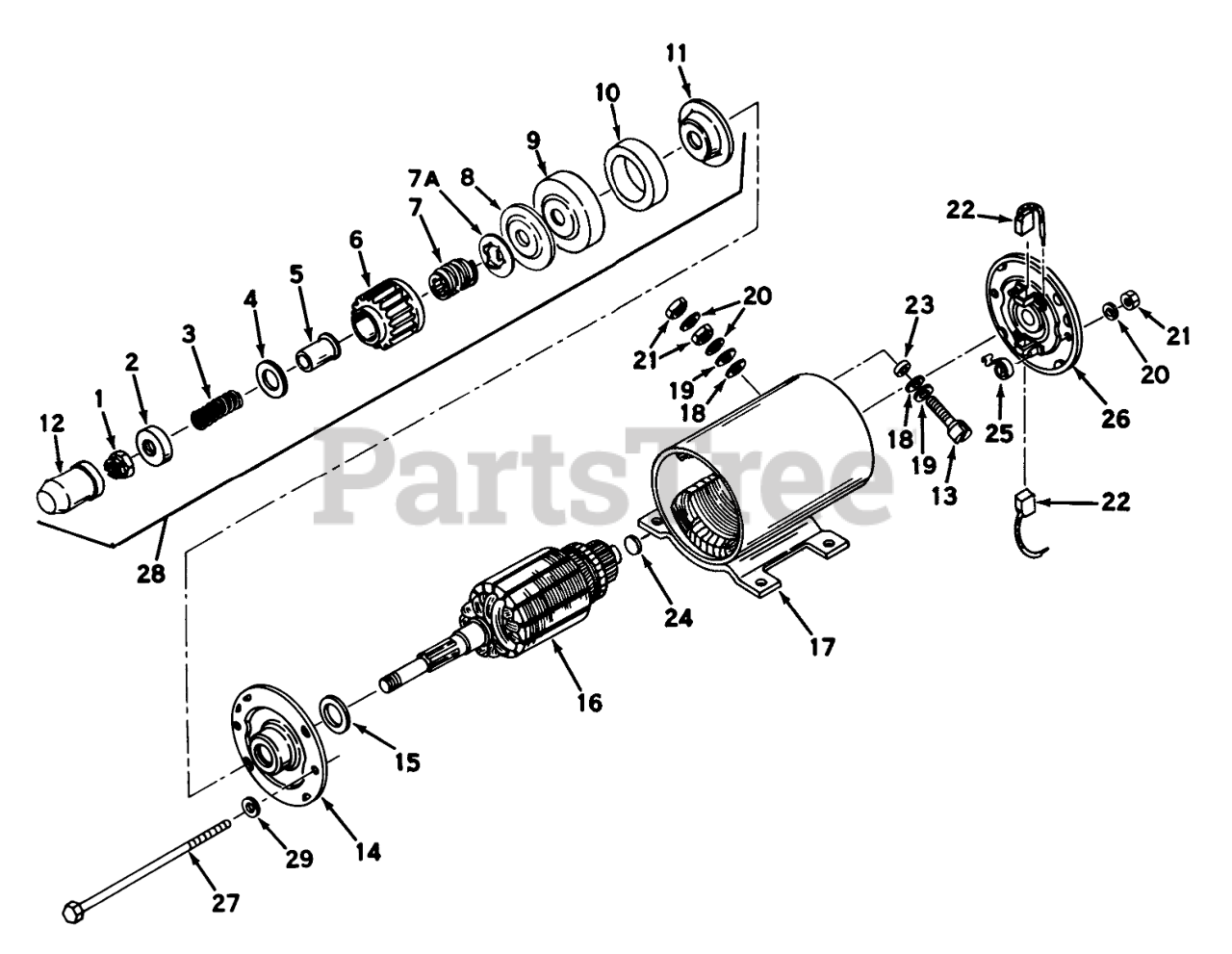

STARTER MOTOR 32468B (ELECTRIC) Parts Diagram

  • Title

1

Tecumseh 32483

Nut, Hex

$

$

Currently unavailable

2

Tecumseh 32484

Setscrew

$

$

Currently unavailable

3

Tecumseh 33214

Spring, Anti-Drift

$

$

Currently unavailable

4

Tecumseh 32486

Washer, Pinion

$

$

Currently unavailable

5

Tecumseh 32487

Sleeve, Anti drift

$

$

Currently unavailable

6

Tecumseh 33215

Gear, Pinion

$

$

Currently unavailable

7

Tecumseh 33216

Shaft, Screw

$

$

Currently unavailable

7A

Tecumseh 33225

Stopper, Screw

$

$

Currently unavailable

8

Tecumseh 33217

Washer, Thrust

$

$

Currently unavailable

9

Tecumseh 33218

Cap, Cushion

$

$

Currently unavailable

10

Tecumseh 33219

Cushion, Rubber

$

$

Currently unavailable

11

Tecumseh 32493

Washer, Thrust

$

$

Currently unavailable

12

Tecumseh 33220

Cap

$

$

Currently unavailable

13

Tecumseh 32499

Bolt, Terminal

$

$

Currently unavailable

14

Tecumseh 32494

Cap Assy., Drive End (Incl. bearing)

$

$

Currently unavailable

15

Tecumseh 32495

Washer, Spacing (.024 Thick)

$

$

Currently unavailable

15

Tecumseh 32496

Washer, Spacing (.008 Thick)

$

$

Currently unavailable

16

Tecumseh 32497

Armature

$

$

Currently unavailable

17

Tecumseh 32843

Housing Assy. (Incl. pole shoes, field coils, terminal post, straight mounting bracket, Nos. 13 & 18 thru 23)

$

$

Currently unavailable

18

Tecumseh 32500

Washer, Insulating

$

$

Currently unavailable

19

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 650131

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 28710

61710/VAR.HILLER AT
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 32838

Brush & Spring Kit

$

$

Not available

23

Tecumseh 32501

Bushing, Insulating

$

$

Currently unavailable

24

Tecumseh 32509

Washer, Spring

$

$

Currently unavailable

25

Tecumseh 32837

Spring, Brush

$12.99

$

Usually ships in 3-12 days

0

26

Tecumseh 33226

End Cap Assy., Commutator

$

$

Currently unavailable

27

Tecumseh 32508

Bolt, Thru

$

$

Currently unavailable

28

Tecumseh 32481A

Drive Assy., Complete (Incl. Nos. 1 thru 12)

$

$

Currently unavailable

29

Tecumseh 31481

Washer

$

$

Currently unavailable
