56005 - Toro 25" Sportsman Rear-Engine Mower (SN: 002000001 - 002999999) (1972) ELECTRICAL SCHEMATIC Parts Diagram

25" Sportsman Rear-Engine Mower

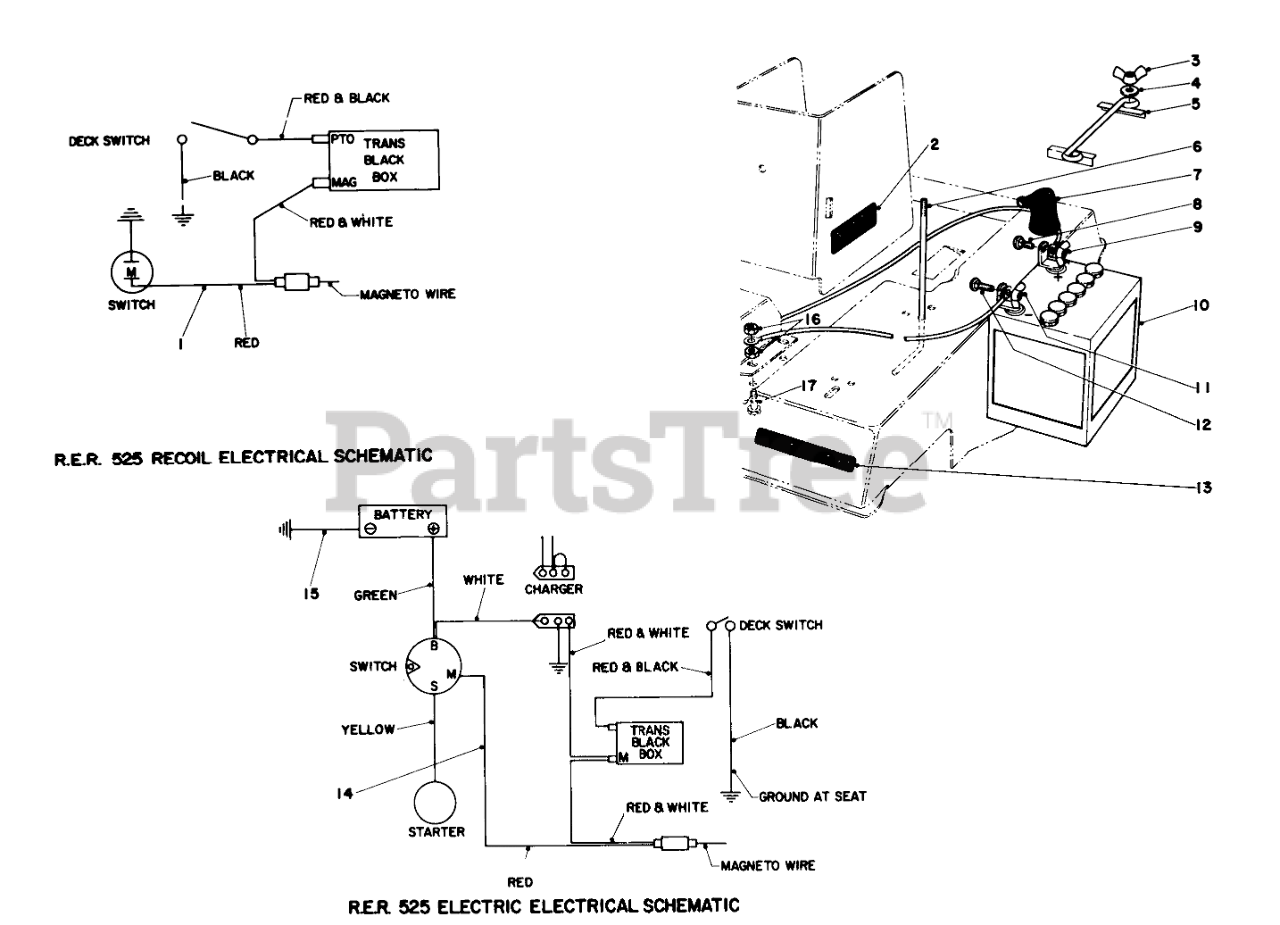

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

1

Toro 12-2730

Wire Harness (Model 56005)

$

$

Currently unavailable

2

Toro 12-4030

Decal (Model 56010)

$

$

Currently unavailable

3

Toro 32103-20

Wing Nut

$

$

Currently unavailable

4

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-5000

Clamp

$

$

Not available

6

Toro 11-2740

Battery Bolt

$

$

Currently unavailable

7

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

8

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

9

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

10

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

11

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

12

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 11-3400

Decal (Model 56150)

$

$

Currently unavailable

14

Toro 12-2720

Wire Harness (Model 56010)

$

$

Currently unavailable

15

Toro 12-1850

Wire Assembly

$

$

Currently unavailable

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$182.99

$

Usually ships in 3-6 days

0
