5600469 - Snapper Pro 61" EZ Dump XL 14 cu. ft. Hopper for IS3100Z Dump Handle Group Parts Diagram

61" EZ Dump XL 14 cu. ft. Hopper for IS3100Z

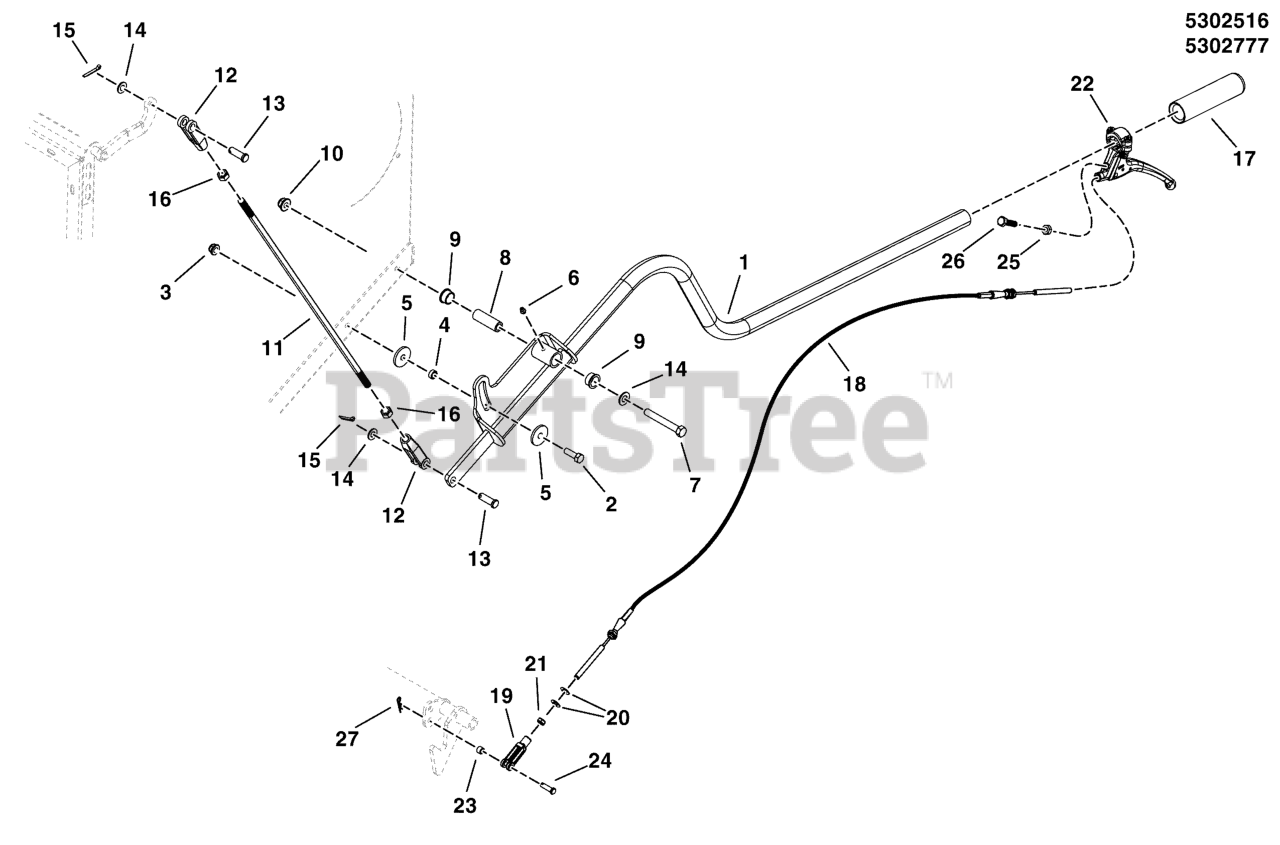

Dump Handle Group Parts Diagram

  • Title

1a

Snapper Pro 5406743A

WELD, HANDLE ASSY, 3100/200 - BLK
(Superseded to 5406743AFS)

Note: (ZTR Models)

$133.99

$

Usually ships in 2-12 days

0

1b

Snapper Pro 5406303A

WELD, HANDLE ASSY, 800 - BLK
(Superseded to 5406303AFS)

Note: (Outfront Models)

$130.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 1666697

SPACER-0.328ID 0.497OD 0.218LG PM YEL
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

6

Snapper Pro 5021637

GREASE FITTING, PRESS, SHORT
(Superseded to 5021637FS)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

8

Snapper Pro 1657242

SPACER-0.390ID 0.625OD 1.85 LG HARDENED
(Superseded to 1657242SM)

$10.99

$

In Stock, Qty 10

0

9

Snapper Pro 1676148

BUSHING-0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

10

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Snapper Pro 5102630

ROD, GATE PULL, HOPPER
(Superseded to 5102630FS)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5021171

CLEVIS 3/8-24, PLASTIC
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, CZ
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 80002736

PIN, 3/32 X .750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5102823

CABLE, CONTROL, 57, GRASS COLLECTION
(Superseded to 5102823FS)

$52.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5102881

CLEVIS, 10-32 RH, CZ
(Superseded to 5102881FS)

$87.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Snapper Pro 1928919

NUT-HEX & WASHER ASMY 10-32 BLK (KEPS)
(Superseded to 1928919SM)

$3.99

$

In Stock, only 3 left!

0

22

Snapper Pro 5102880

LEVER, RELEASE
(Superseded to 5102880FS)

$66.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5021878

SPACER, .25 X .37 X .25
(Superseded to 5021878YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025212X6

CLEVIS PIN, 1/4 X 3/4, CZ
(Superseded to 5025212X6FS)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025569

NUT, HEX, M8-1.0, CZ

$

$

Currently unavailable

26

Snapper Pro 5025568

BOLT, HEX, M8-1.0 X 30, CZ

$

$

Currently unavailable

27

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0
