5600384 - Snapper Pro 60" Snowblower for 800X Drive System Parts Diagram

60" Snowblower for 800X

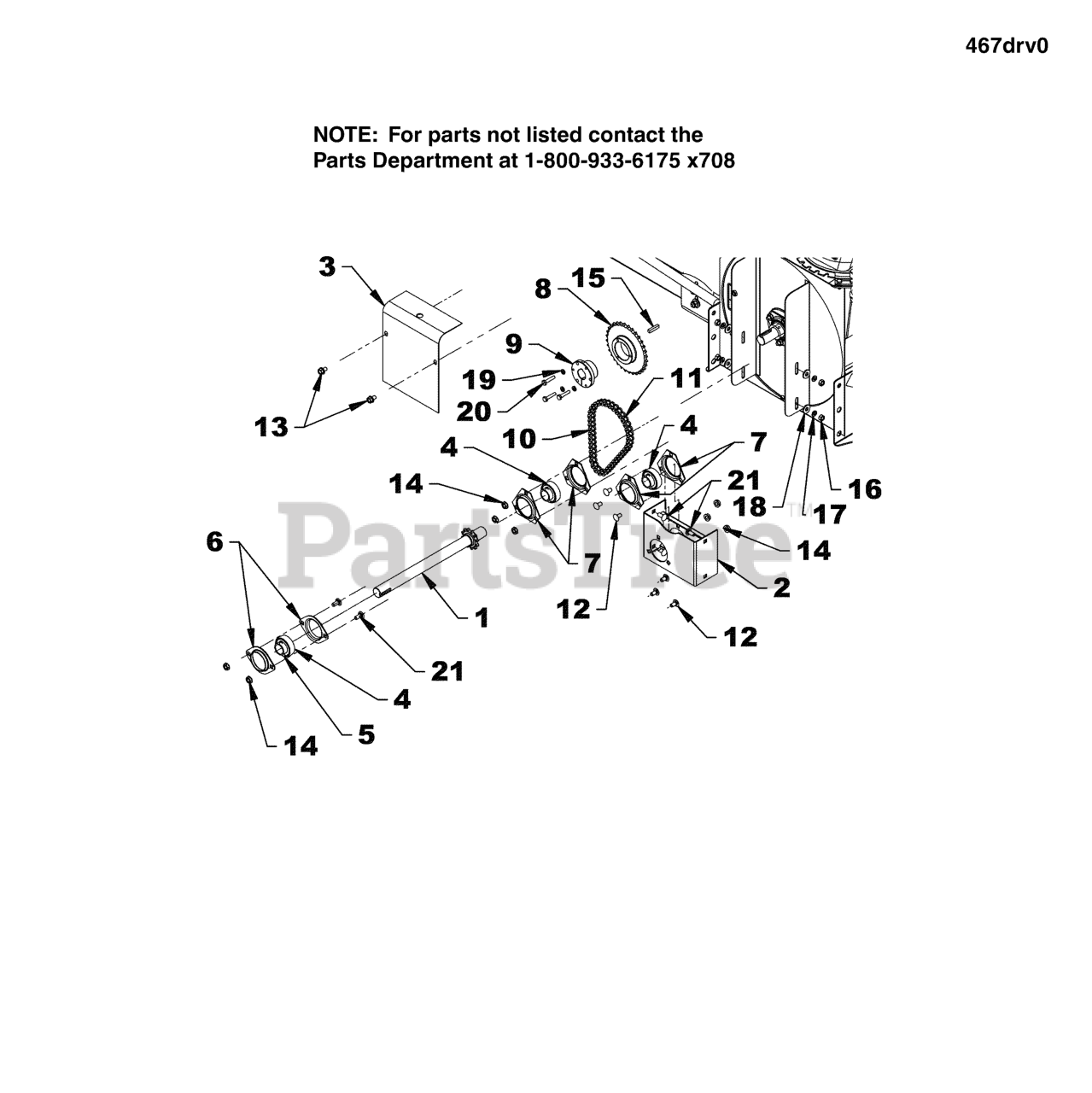

Drive System Parts Diagram

  • Title

1

Output shaft

Note: 669183

$

$

Not available

2

Reduction box

Note: 669190

$

$

Not available

3

Reduction box cover

Note: 667318

$

$

Not available

4

Snapper Pro 5665494

Bearing Ø1" w/ setscrew

Note: 665494

$38.99

$

Usually ships in 2-12 days

0

5

Allen setscrew 1/4" NC x 1/4" gr.5 black

Note: 500002

$

$

Not available

6

Snapper Pro 5654787

Flange 2 holes for ø1" bearing , PTD

Note: 654787

$

$

Currently unavailable

7

Triangular Flange 3 holes for Ø1" bearing PTD

Note: 656589

$

$

Not available

8

Snapper Pro 5101816X10

Sprocket 40B32 tapered inside

Note: 3300047

$72.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101816X11

Pulley Hub SH ø1" w/ bolts (to be replaced by #20) & lockwasher

Note: 662992

$66.99

$

Usually ships in 2-12 days

0

10

Chain #40 x 44 links LL (w/ connecting link)

Note: 659258

$

$

Not available

11

Connecting link #40 LL

Note: 656178

$

$

Not available

12

Carriage bolt 5/16"NC x 5/8" gr.5 PTD

Note: 300001

$

$

Not available

13

Serrated flange bolt 5/16"NC x 1/2" gr.2 PTD

Note: 200065

$

$

Not available

14

Serrated flange nut 5/16"NC PTD

Note: 900036

$

$

Not available

15

Key 1/4" x 1/4" x 1 1/4"

Note: 654643

$

$

Not available

16

Hex. nut 5/16"NC PTD

Note: 900002

$

$

Not available

17

Lockwasher 5/16", PTD

Note: 1200003

$

$

Not available

18

Flat washer Ø5/16" Int., PTD

Note: 1400003

$

$

Not available

19

Lockwasher 1/4", PTD (suppl. with Pulley Hub, #9)

Note: 1200002

$

$

Not available

20

Hex. bolt1/4" NC X 1 1/2" gr.5, PTD

Note: 100255

$

$

Not available

21

Carriage bolt 5/16"NC x 3/4" gr.5, PTD

Note: 300002

$

$

Not available
