5600373 - Ferris 52" iCD Fast-Vac 3-Bag Soft Top Collection System for IS2100Z iCD, ISX2200 3-Bag Catcher & Cover Group - Soft Top System Parts Diagram

52" iCD Fast-Vac 3-Bag Soft Top Collection System for IS2100Z iCD, ISX2200

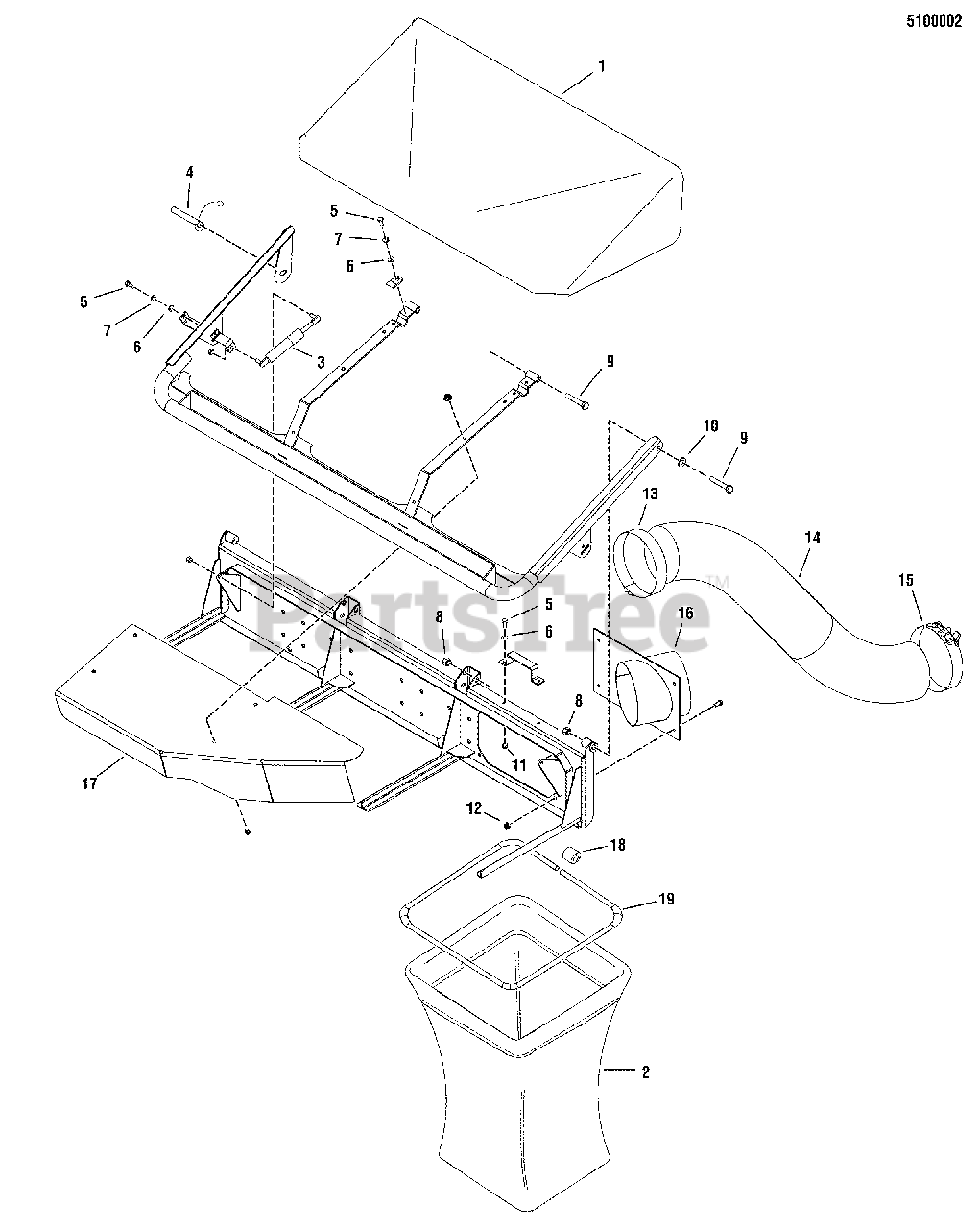

3-Bag Catcher & Cover Group - Soft Top System Parts Diagram

  • Title

1

Ferris 5100154

3 BAG AIR DOME

$

$

Currently unavailable

2

Ferris 5100150

CATCHER BAG W/ HANDLE

$245.99

$

Usually ships in 2-12 days

0

3

Ferris 5100152

GAS CYLINDER

$

$

Currently unavailable

4

Ferris 5100151

DETENT PIN W/ LANYARD
(Superseded to 5100151SM)

$21.99

$

Usually ships in 2-12 days

0

5

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

11

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5022875

CLAMP, HOSE, UPPER
(Superseded to 5022875SM)

$45.99

$

In Stock, only 1 left!

0

14

Ferris 5103646

HOSE, FLEXIBLE, 7" DIA. X 58"
(Superseded to 5103646YP)

$318.99

$

In Stock, only 1 left!

0

15

Ferris 5022876

CLAMP, HOSE, LOWER
(Superseded to 5022876SM)

$46.99

$

Usually ships in 2-12 days

0

16

Ferris 5400145A

WELD, INLET BLOWER 3-BAG BLACK
(Superseded to 5400145AYP)

$201.99

$

Usually ships in 2-12 days

0

17

Ferris 5400197A

BAFFLE

$

$

Currently unavailable

18

Ferris 5100730

BAG FRAME CONNECTOR, PLASTIC

$

$

Currently unavailable

19

Ferris 5100729

BAG FRAME

$

$

Currently unavailable
