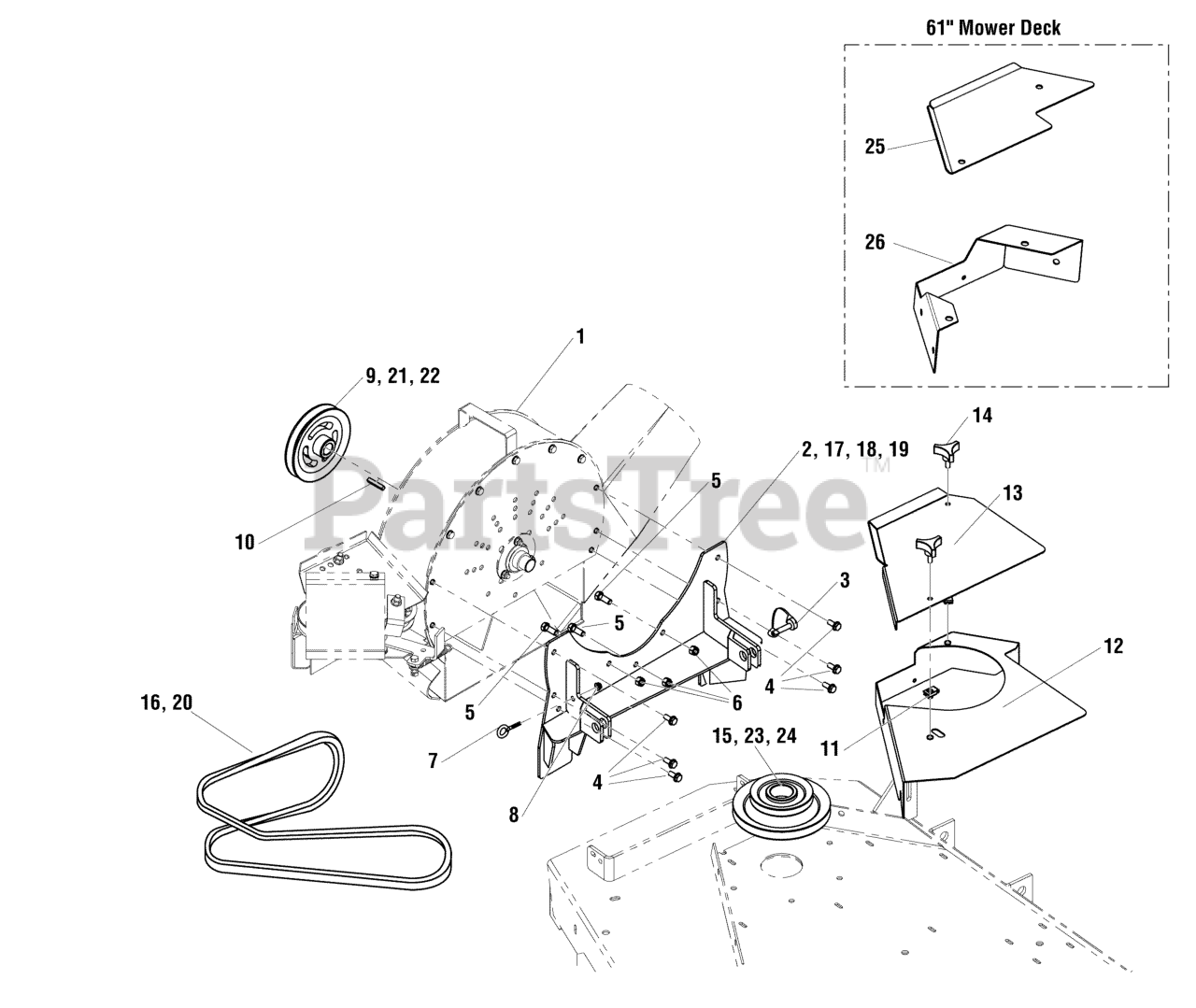

5600057 - Snapper Pro 61" 3-Bag Grass Collection System for S200X Blower Mount & Drive Group Parts Diagram

61" 3-Bag Grass Collection System for S200X

Blower Mount & Drive Group Parts Diagram

  • Title

1

BLOWER ASSEMBLY

$

$

Not available

2

Snapper Pro 5402380A

WELD, BLOWER MOUNT, 61" - BLK
(Superseded to 5402380ASM)

Note: (All Models - 61" Mower Deck)

$515.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5100847

SNAPPERPIN, 5/16 X 2
(Superseded to 5100847SM)

$16.99

$

In Stock, only 1 left!

0

4

Snapper Pro 7091811

BOLT, 5/16-18 X 3/4" SELF LOCK
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

5

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

6

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5022205

EYE BOLT, 1/4-20 X 2.5, 1THRD, .5EYE,CZ
(Superseded to 5022205SM)

$7.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5046807

PULLEY, BLOWER AXLE, 52
(Superseded to 5046807YP)

Note: (All Models - 52" Mower Deck)

$78.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5061858A

GUARD, DECK - BLACK
(Superseded to 5061858ASM)

Note: (All Models - 48" & 52" Mower Decks)

$60.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5400007A

SHIELD, BELT
(Superseded to 5400007ASM)

Note: (All Models - 48" & 52" Mower Decks)

$31.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022319

KNOB, PLASTIC, 5/16-18 X 3/4"
(Superseded to 5022319SM)

$7.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5023177

PULLEY, BLOWER 52" DECK
(Superseded to 5023177SM)

Note: (All Models - 52" Mower Deck)

$257.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5021006

BELT, #7-6717, 88.8" E.L.
(Superseded to 5021006SM)

Note: (All Models - 52" Mower Deck)

$55.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5403650A

WELD, BLOWER MOUNT 52 BLACK
(Superseded to 5403650ASM)

Note: (S/N: 2012628763 & Above Models - 52" Mower Deck)

$186.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5402633A

WELD, BLOWER MOUNT 48 BLACK
(Superseded to 5402633AYP)

Note: (All Models - 48" Mower Deck)

$219.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5402354A

WELD, BLOWER MOUNT, 52" - BLK
(Superseded to 5402354ASM)

Note: (S/N: 2012628762 & Below Models - 52" Mower Deck)

$209.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022844

BELT, A-SEC, 92.00EL, ARAMID, WRPD
(Superseded to 5022844FS)

Note: (All Models - 48" & 61" Mower Decks)

$59.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5046806

PULLEY, BLOWER AXLE, 48
(Superseded to 5046806SM)

Note: (All Models - 48" Mower Deck)

$92.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5046808

PULLEY, BLOWER AXLE, 61
(Superseded to 5046808YP)

Note: (All Models - 61" Mower Deck)

$69.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5023176

PULLEY, BLOWER 48" DECK
(Superseded to 5023176SM)

Note: (All Models - 48" Mower Deck)

$260.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5046702

PULLEY, BLOWER 61" DECK
(Superseded to 5046702SM)

Note: (All Models - 61" Mower Deck)

$220.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5401436AA

SHIELD, BELT

Note: (All Models - 61" Mower Deck)

$

$

Currently unavailable

26

Snapper Pro 5061858A

GUARD, DECK - BLACK
(Superseded to 5061858ASM)

Note: (All Models - 61" Mower Deck)

$60.99

$

Usually ships in 2-12 days

0
