5600027 - Ferris 61" 3-Bag Grass Collection System for IS3000Z Blower Housing, Impeller, Guard & Idler Group Parts Diagram

61" 3-Bag Grass Collection System for IS3000Z

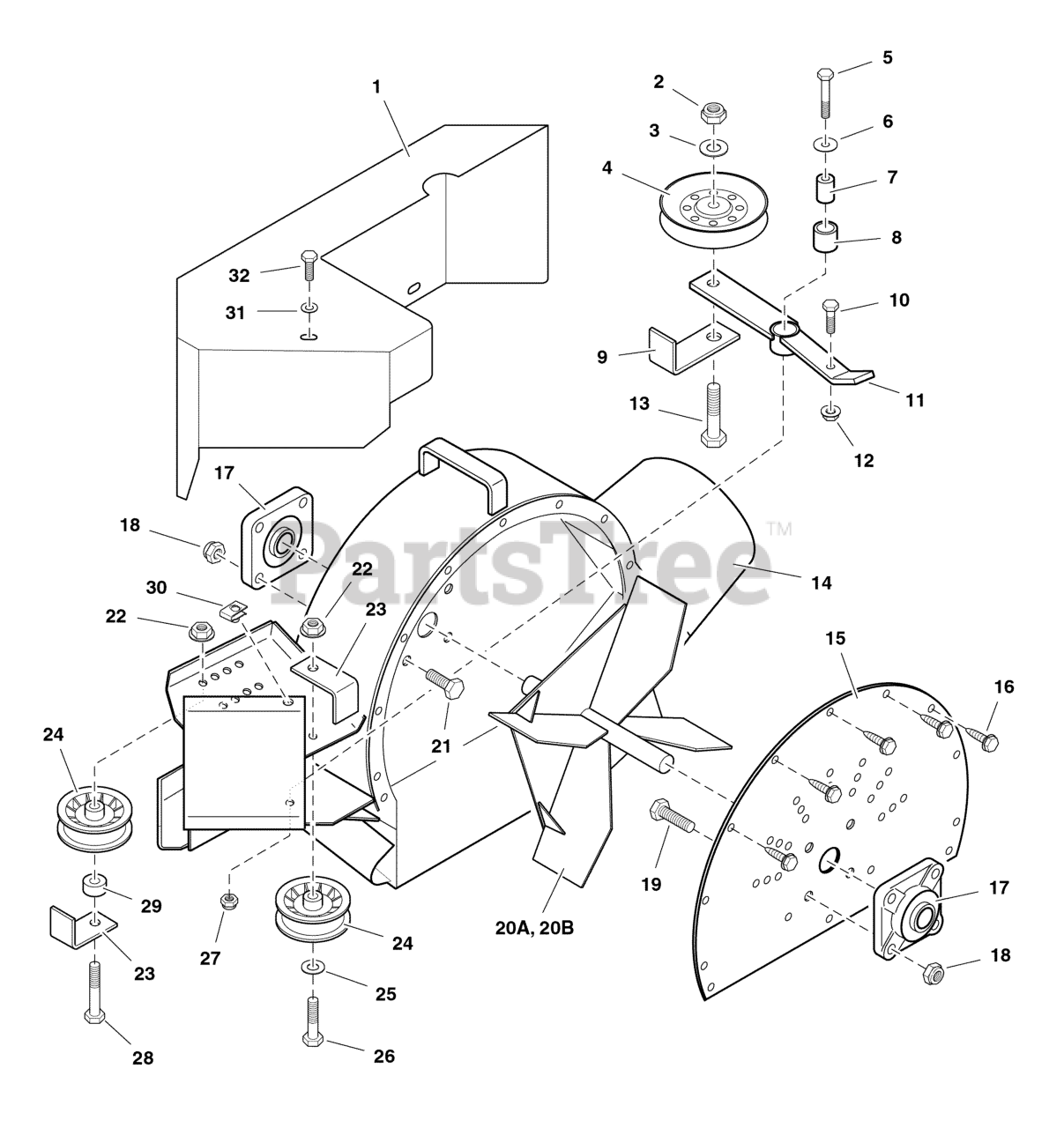

Blower Housing, Impeller, Guard & Idler Group Parts Diagram

  • Title

1

Ferris 5046782A

BELT GUARD

$

$

Currently unavailable

2

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

4

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

In Stock, only 1 left!

0

5

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

8

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

9

Ferris 5046824A

BELT KEEP

$

$

Currently unavailable

10

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5046827A

IDLER ARM
(Superseded to 5046827AFS)

Note: (31207, All / 31207-48, S/N: 101-160 / 31207-52, S/N: 101-140 / 31207-61, All)

$46.99

$

Usually ships in 2-12 days

0

11

Ferris 5047253A

IDLER ARM

Note: (31207-48, S/N: 161 & above / 31207-52, S/N: 141 & above / 31207-61A, All / 31207-61B, All)

$

$

Currently unavailable

12

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

13

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5046781A

BLOWER HOUSING

$

$

Currently unavailable

15

Ferris 5046853A

BACK PLATE

$

$

Currently unavailable

16

Ferris 5025059X6

BOLT, Self-Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5022832

BEARING
(Superseded to 5022832FS)

$73.99

$

Usually ships in 2-12 days

0

18

Ferris 5025125

NUT, 7/16-14 Hex Nylon Lock
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 12

0

19

Ferris 5025015X12

BOLT, 7/16-14 x 1-1/2

$

$

Not available

20A

Ferris 5403741

WELD, IMPELLER, FAST VAC BLOWER

Note: (Production Date 04/06/2010 & Earlier)

$

$

Not available

20B

Ferris 5407093

WELD, IMPELLER, FAST-VAC BLOWER

Note: (Production Date 04/07/2010 & Later)

$

$

Currently unavailable

21

Ferris 5025015X10

BOLT, 7/16-14 x 1-1/4

$

$

Currently unavailable

22

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

23

Ferris 5046813A

BELT KEEP

$

$

Currently unavailable

24

Ferris 5106480

PULLEY, IDLER, 2.75"OD X .37"ID, INSERT
(Superseded to 5106480FS)

$32.99

$

In Stock, Qty 5

0

25

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

27

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

29

Ferris 5046860

SPACER, .39 x 1.00 x .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

30

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

31

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

32

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
