5600003 - Snapper Pro 48" 3-Bag Grass Collection System for S150X Blower Group Parts Diagram

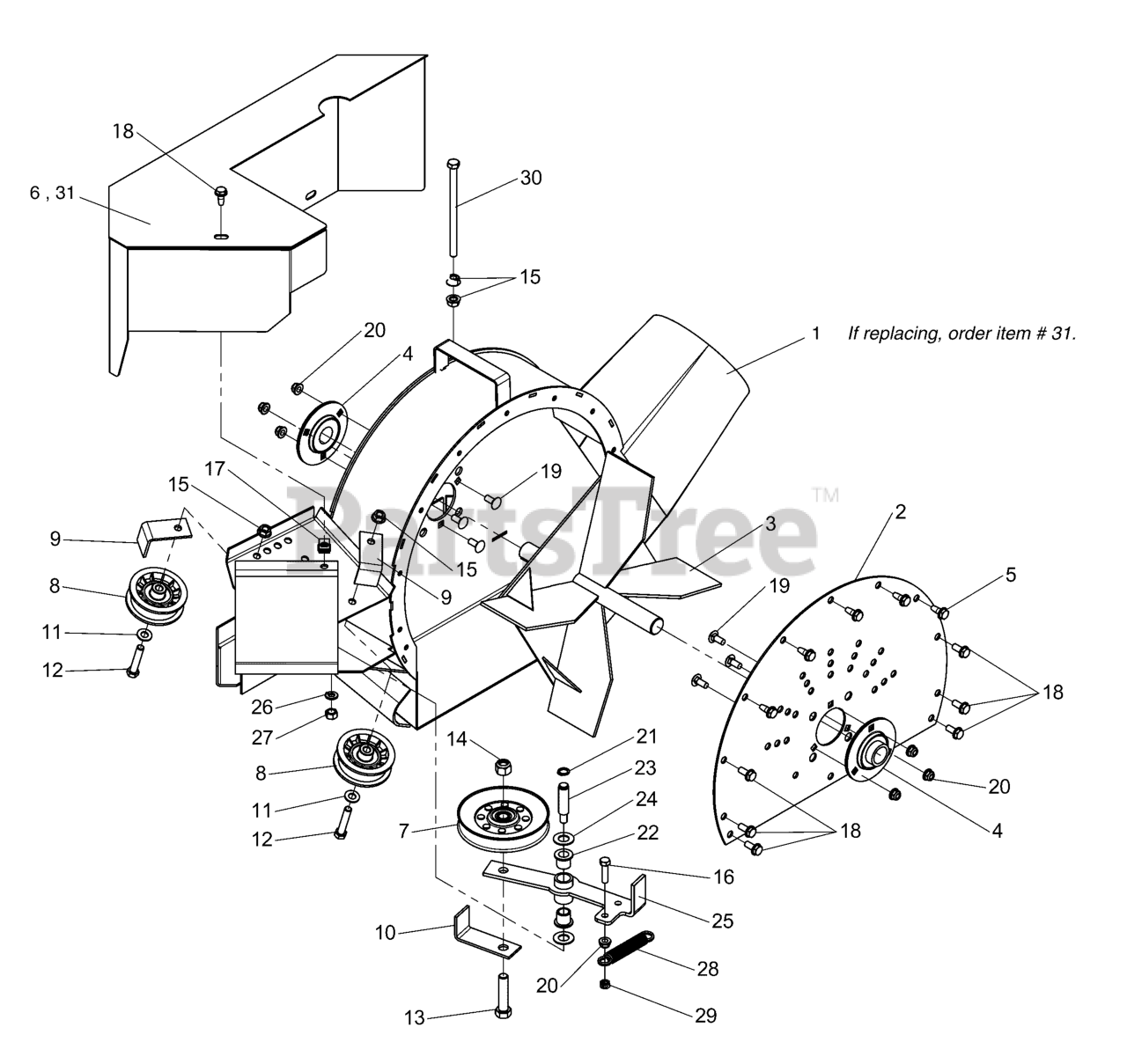

48" 3-Bag Grass Collection System for S150X

Blower Group Parts Diagram

  • Title

1

Snapper Pro 5403723A

WELD, BLOWER HOUSING - FAST VAC - BLK

$

$

Currently unavailable

2

Snapper Pro 5403750A

PLATE, BACK - BLK

$

$

Currently unavailable

3

Snapper Pro 5403741

WELD, IMPELLER, FAST VAC BLOWER

Note: (S/N: 04/06/2010 & Earlier)

$

$

Not available

3

Snapper Pro 5407093

WELD, IMPELLER, FAST-VAC BLOWER

Note: (S/N: 04/07/2010 & Later)

$

$

Currently unavailable

4

Snapper Pro 7100021

BEARING, FLANGE, 1" Bore
(Superseded to 7100021SM)

$41.99

$

In Stock, Qty 20+

0

5

Snapper Pro 7091541

BOLT, 5/16-18 X 3/4" Self Tap

$

$

Not available

6

Snapper Pro 5403736A

WELD, BELT GUARD, BLOWER - BLK

Note: (S/N: 07/14/2013 & Below)

$

$

Currently unavailable

7

Snapper Pro 5021097

PULLEY, IDLER V-NOTCH, 5"
(Superseded to 5021097SM)

$40.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5106480

PULLEY, IDLER, 2.75"OD X .37"ID, INSERT
(Superseded to 5106480FS)

$32.99

$

In Stock, Qty 7

0

9

Snapper Pro 5403749A

KEEPER, BELT - BLK

$

$

Currently unavailable

10

Snapper Pro 5403740A

RETAINER, BELT - BLK

$

$

Currently unavailable

11

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

16

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

17

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

18

Snapper Pro 7091811

BOLT, 5/16-18 X 5/8" Self Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

19

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

20

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 7010776

RETAINING RING, 1/2"
(Superseded to 7010776YP)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7014409

FLANGE BEARING, 9/16"
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

23

Snapper Pro 7044995

IDLER STUD
(Superseded to 7044995SM)

$20.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7091804

FLAT WASHER, 9/16" Narrow
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5103677A

WELD, IDLERARM, FAST-VAC - BLK
(Superseded to 5411358)

$78.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

29

Snapper Pro 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

30

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

31

Snapper Pro 5411464A

WELD, Fast-Vac Guard - BLK

Note: (S/N: 07/15/2013 & Later)

$

$

Not available
