56000 (526) - Toro Sportsman Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) STEERING AND SEAT ASSEMBLY Parts Diagram

Sportsman Rear-Engine Riding Mower

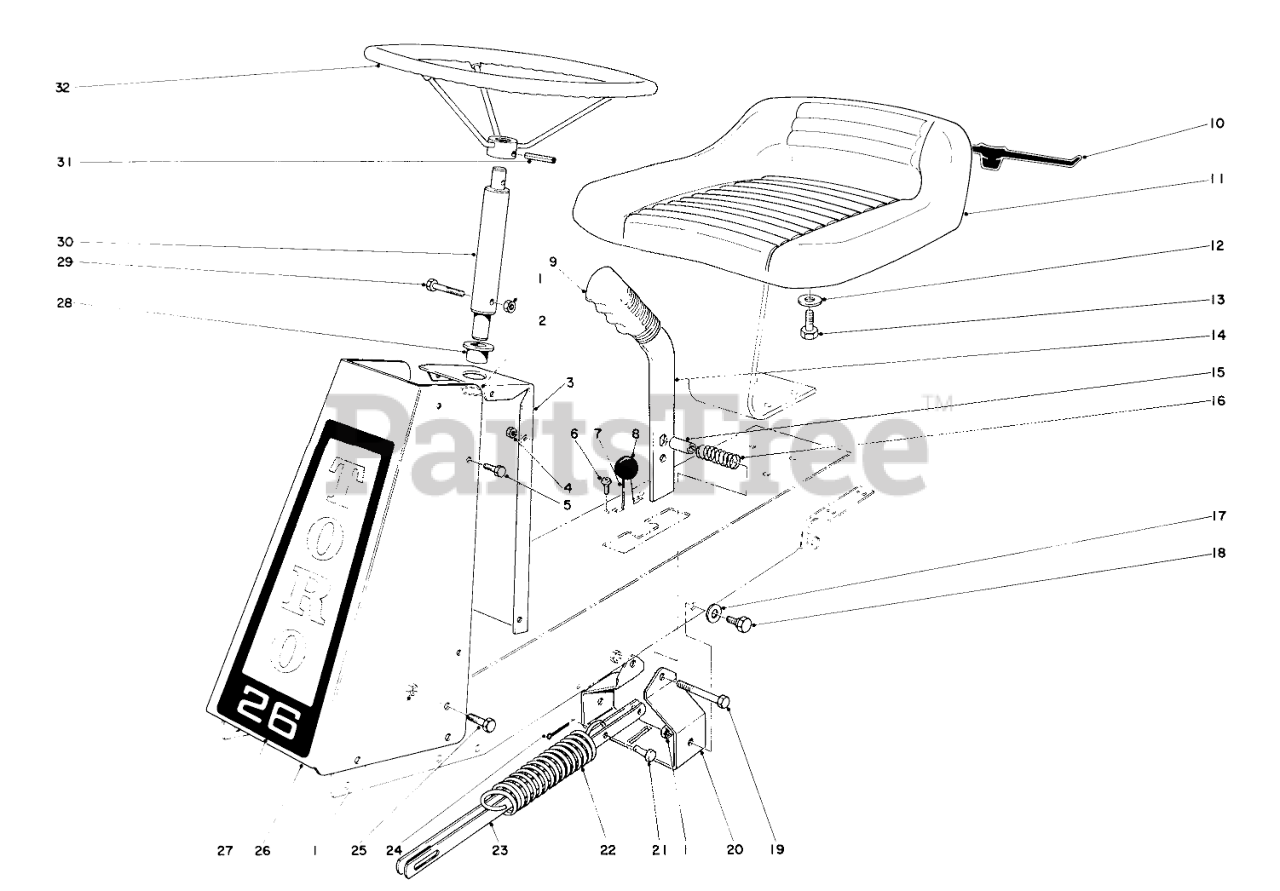

STEERING AND SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 32151-37

Retaining Ring

$

$

Currently unavailable

3

Toro 11-1920

Steering Column

$

$

Currently unavailable

4

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 32140-76

Screw
(Superseded to 32144-8)

$6.99

$

Usually ships in 3-6 days

0

7

Toro 11-3800

Throttle Control

$

$

Currently unavailable

8

Toro 233-16

Knob
(Superseded to 233-25)

$5.49

$

In Stock, only 1 left!

0

9

Toro 11-3580

Grip Handle

$

$

Currently unavailable

10

Toro 11-3470

Decal

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3235-7

HEX HD CAPSCREW

$

$

Not available

14

Toro 11-2460

Handle, Clutch

$

$

Currently unavailable

15

Toro 11-1430

Spacer

$

$

Currently unavailable

16

Toro 11-1650

Spring

$

$

Currently unavailable

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

18

Toro 11-1660

Screw

$

$

Not available

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 11-2190

Pivot

$

$

Currently unavailable

21

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

22

Toro 11-1620

Spring

$

$

Not available

23

Toro 11-2220

Clutch Tie Bar

$

$

Currently unavailable

24

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

26

Toro 11-2610

Cover, Steering Column

$

$

Currently unavailable

27

Toro 11-3490

Decal

$

$

Currently unavailable

28

Toro 11-1290

Bushing

$

$

Currently unavailable

29

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

30

Toro 11-1750

Steering Shaft

$

$

Currently unavailable

31

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

32

Toro 7-3722

Steering Wheel

$

$

Currently unavailable
