56000 (526) - Toro Sportsman Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) REAR AXLE ASSEMBLY Parts Diagram

Sportsman Rear-Engine Riding Mower

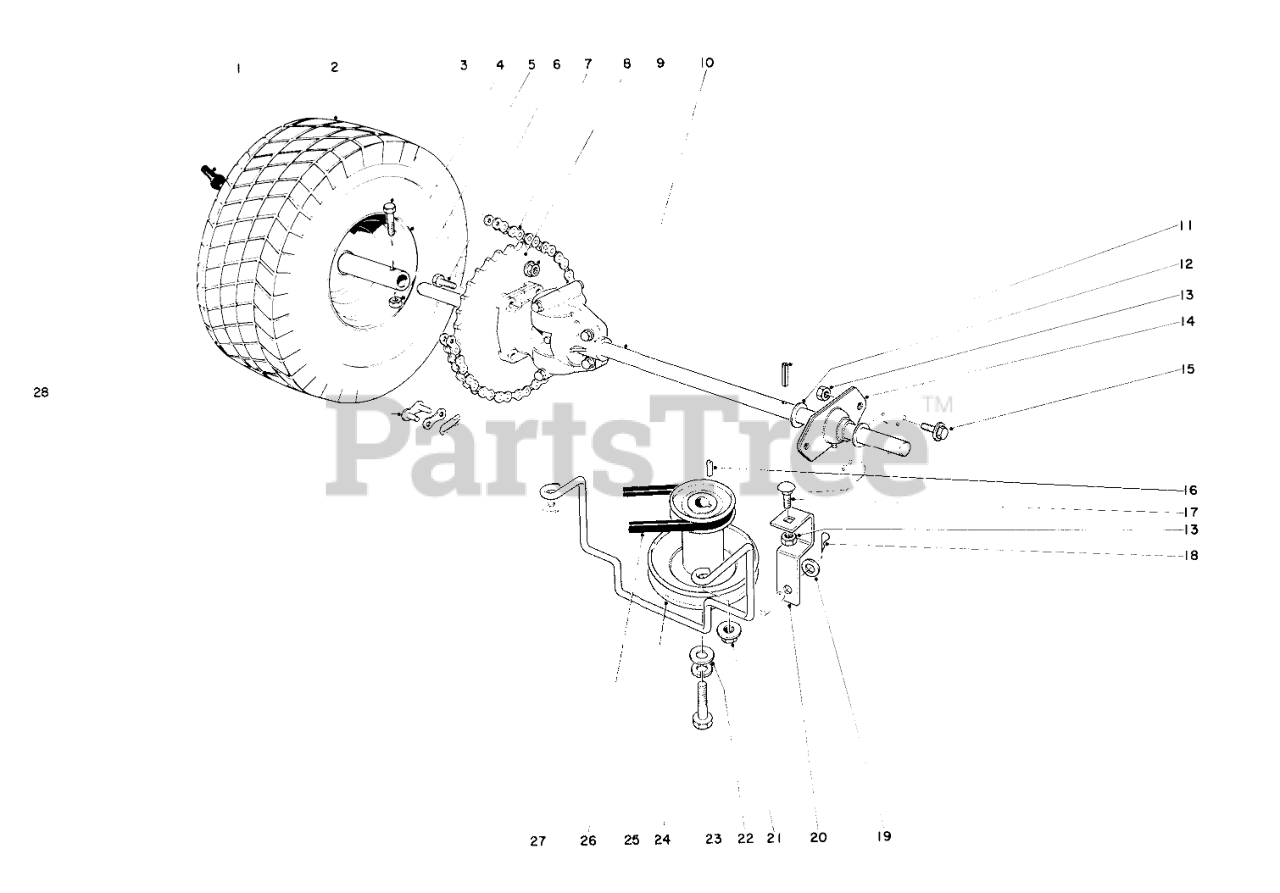

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

2

Toro 231-49

Tire
(Superseded to 231-115)

$96.99

$

Usually ships in 3-6 days

0

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$96.99

$

Usually ships in 3-6 days

0

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

$

$

Not available

5

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 11-3220

Roller Chain

$

$

Currently unavailable

8

Toro 11-2390

Sprocket

$

$

Not available

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 11-1800

Differential

$

$

Not available

11

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

12

Toro 11-4930

WASHER

$

$

Not available

13

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

14

Toro 11-1880

Rear Axle Bearing

$

$

Not available

15

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

16

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

17

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

18

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 11-1500

Bracket

$

$

Currently unavailable

21

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3211-9

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

24

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

25

Toro 11-2320

Pulley

$

$

Not available

26

Toro 11-1730

V-Belt
(Superseded to 19-6960)

$

$

Not available

27

Toro 11-2330

Belt Retainer

$

$

Currently unavailable

28

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0
