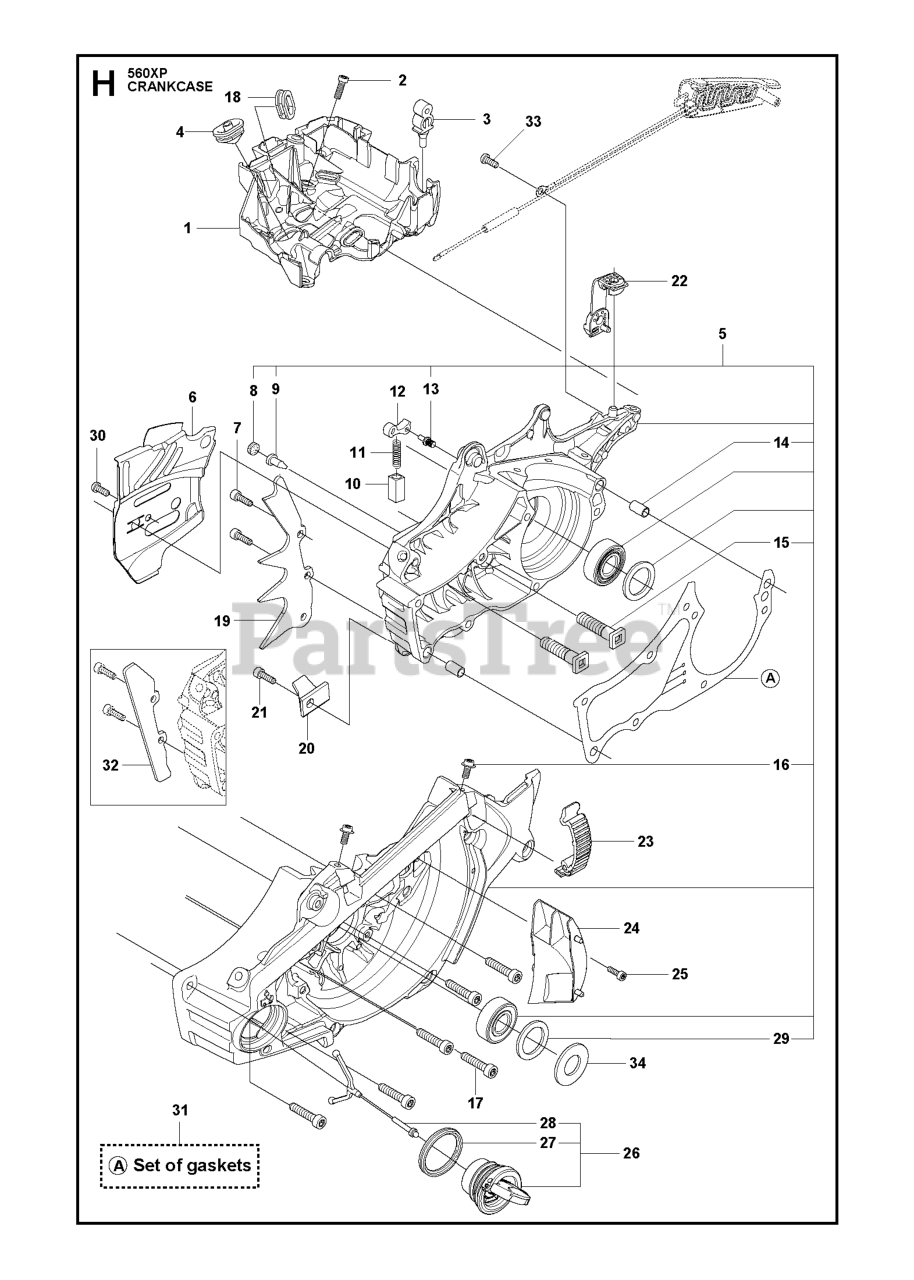

560 XP/XPG - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, only 4 left!

0

6

Husqvarna 505201101

CHAIN GUIDE PLATE

$11.99

$

In Stock, only 1 left!

0

26

Husqvarna 522620003

TANK CAP ASSY

$13.99

$

In Stock, only 2 left!

0

20

Husqvarna 537377902

CHAIN CATCHER

$7.99

$

In Stock, Qty 14

0

23

Husqvarna 503894703

CLIP GRAY
(Superseded to 595303003)

$10.99

$

In Stock, Qty 9

0

30

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 505125801

DEFLECTION LIMITER

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 596911301

CAPS

Note: s/n from 20202400001 -

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 593806001

GUIDE BUSHING

$9.99

$

In Stock, Qty 5

0

2

Husqvarna 525755202

SCREW ITXSCFM

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 525798103

SCREW

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 537210701

GUIDE

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 537088301

GROMMET

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 575380222

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 588193901

Carburetor base

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 575270003

GASKET KIT

Note: A=set of gaskets

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505217301

BAR BOLT

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 526221801

SCREW

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575841104

SCREW ITXSCM M5X25 12.9 TBO T

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575793501

SCREW ITXPANM M5X16 T27 10.9

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

29

Husqvarna 525391201

RADIAL SEAL

Note: - up to s/n 20202399999

$17.99

$

In Stock, only 1 left!

0

8

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588065501

AIR NOZZLE

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 503751801

PIN

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 525347601

BUMPER

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581559201

GROMMET

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

19

Husqvarna 577935201

SPIKES

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 3 left!

0

503 28 34-01

Husqvarna 503283401

CARBURETOR
(Superseded to 588171156)

Note: ZAMA C1Q-EL24

$45.99

$

In Stock, Qty 14

0

537 02 07-01

Husqvarna 537020701

SCREW

$14.99

$

In Stock, only 1 left!

0

537 01 97-01

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

503 48 08-01

Husqvarna 503480801

SPRING
(Superseded to 503994301)

$3.49

$

Usually ships in 3-10 days

0

503 47 90-01

Husqvarna 503479001

SCREW

$3.99

$

In Stock, Qty 8

0

537 01 26-01

Husqvarna 537012601

SPRING

$3.99

$

Usually ships in 3-10 days

0

537 02 01-01

Husqvarna 537020101

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 13

0

503 47 92-01

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

537 02 03-01

Husqvarna 537020301

SPRING
(Superseded to 537273401)

Note: 531 00 45-53 REPAIRKIT

$

$

Not available

503 47 97-01

Husqvarna 503479701

INLET NEEDLE

Note: 531 00 45-53 REPAIRKIT

$10.99

$

Usually ships in 3-10 days

0

503 97 40-01

Husqvarna 503974001

WASHER

$3.49

$

Usually ships in 3-10 days

0

503 47 89-01

Husqvarna 503478901

SPACER

$4.99

$

Usually ships in 3-10 days

0

537 02 00-01

Husqvarna 537020001

PUMP DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$9.49

$

In Stock, Qty 5

0

537 02 16-01

Husqvarna 537021601

CAP

$3.49

$

In Stock, Qty 20+

0

503 48 19-01

Husqvarna 503481901

BUSHING

$6.99

$

In Stock, only 4 left!

0

503 97 43-01

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

503 48 01-01

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

537 01 99-01

Husqvarna 537019901

THROTTLE FLAP

$3.34

$

In Stock, only 2 left!

0

503 48 00-01

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0

537 01 98-01

Husqvarna 537019801

LEVER

$4.99

$

In Stock, only 1 left!

0

537 01 25-01

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 6

0

537 02 04-01

Husqvarna 537020401

GASKET

Note: 531 00 45-52 SET OF GASKETS

$4.99

$

In Stock, Qty 9

0

537 04 89-01

Husqvarna 537048901

DIAPHRAGM

Note: 531 00 45-52 SET OF GASKETS

$13.99

$

In Stock, Qty 18

0

503 47 96-01

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

503 75 53-01

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

537 02 09-01

Husqvarna 537020901

CHOKE SHAFT

$10.99

$

Usually ships in 3-10 days

0

537 01 96-01

Husqvarna 537019601

SHAFT

$6.91

$

Usually ships in 3-10 days

0

537 02 06-01

Husqvarna 537020601

NEEDLE HIGH SPEED

$4.99

$

Usually ships in 3-10 days

0

503 48 05-01

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

537 04 90-01

Husqvarna 537049001

LEVER

$2.23

$

Usually ships in 3-10 days

0

537 02 10-01

Husqvarna 537021001

SPRING

$3.49

$

In Stock, only 1 left!

0

503 53 57-01

Husqvarna 503535701

STRAINER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 2 left!

0

503 48 11-01

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

503 66 59-01

Husqvarna 503665901

LEVER

Note: 531 00 45-53 REPAIRKIT

$4.99

$

In Stock, only 2 left!

0

537 02 02-01

Husqvarna 537020201

COVER

$26.99

$

Usually ships in 3-10 days

0

537 37 03-01

Husqvarna 537370301

CHOKE CAP

$7.99

$

In Stock, only 3 left!

0

537 12 78-01

Husqvarna 537127801

LOW SPEED NEEDLE

$17.99

$

Usually ships in 3-10 days

0

503 48 18-01

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

537 02 08-01

Husqvarna 537020801

PIN

Note: 531 00 45-53 REPAIRKIT

$3.49

$

In Stock, only 1 left!

0
