560 XP - Husqvarna Chainsaw (2013-01) STARTER Parts Diagram

Chainsaw

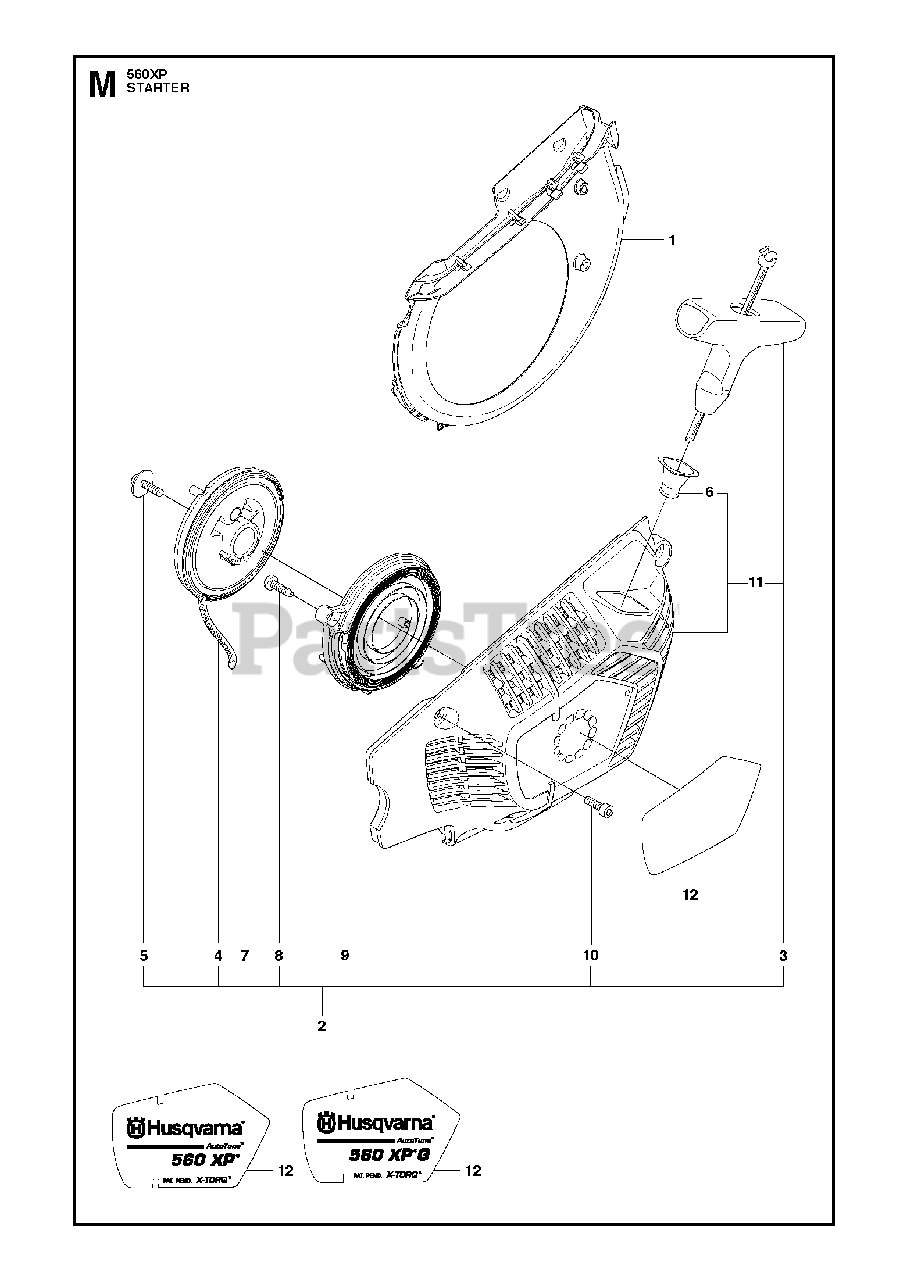

STARTER Parts Diagram

  • Title

1

Husqvarna 505157501

COOLING AIR CONDUCTOR

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505159204

STARTER ASSY

$148.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537232501

HANDLE

Note: . 2

$11.99

$

In Stock, only 1 left!

0

4

Husqvarna 505305125

STARTER ROPE

Note: . 2

$9.49

$

In Stock, only 2 left!

0

5

Husqvarna 503205216

SCREW

Note: . 2

$3.49

$

In Stock, Qty 9

0

6

Husqvarna 537283201

SLEEVE

Note: . 2 11

$12.99

$

In Stock, only 2 left!

0

7

Husqvarna 505158101

STARTER PULLEY ASSY

Note: . 2

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503212813

SCREW

Note: . 2

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 505157901

SPRING CASSETTE ASSY
(Superseded to 505157902)

Note: . 2

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544080301

SCREW

Note: . 2

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 505159102

STARTER HOUSING

Note: . 2

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 523035603

LABEL XP

Note: XP

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 523035604

LABEL XPG

Note: XPG

$4.99

$

Usually ships in 3-10 days

0
