560 XP - Husqvarna Chainsaw (2013-01) IGNITION SYSTEM Parts Diagram

Chainsaw

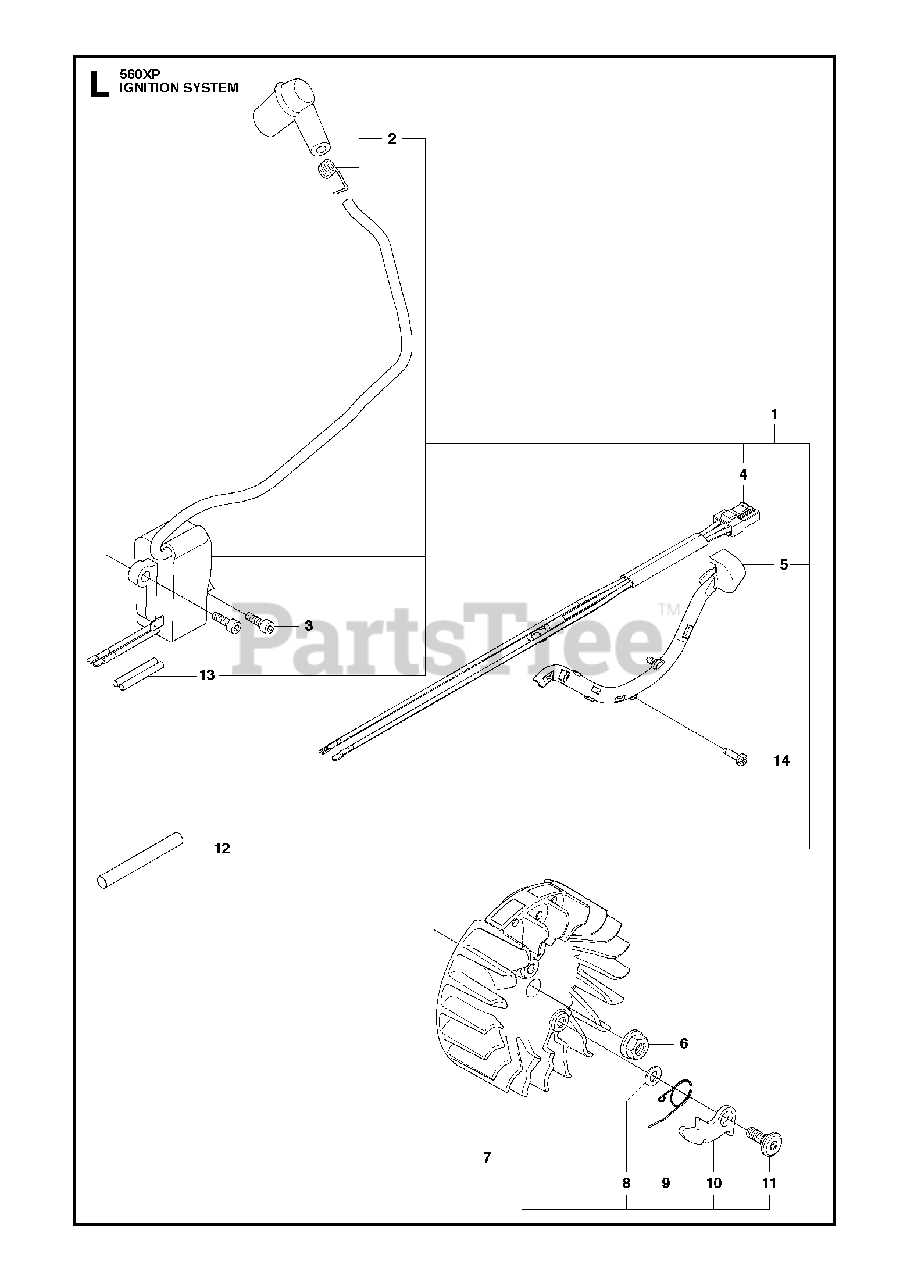

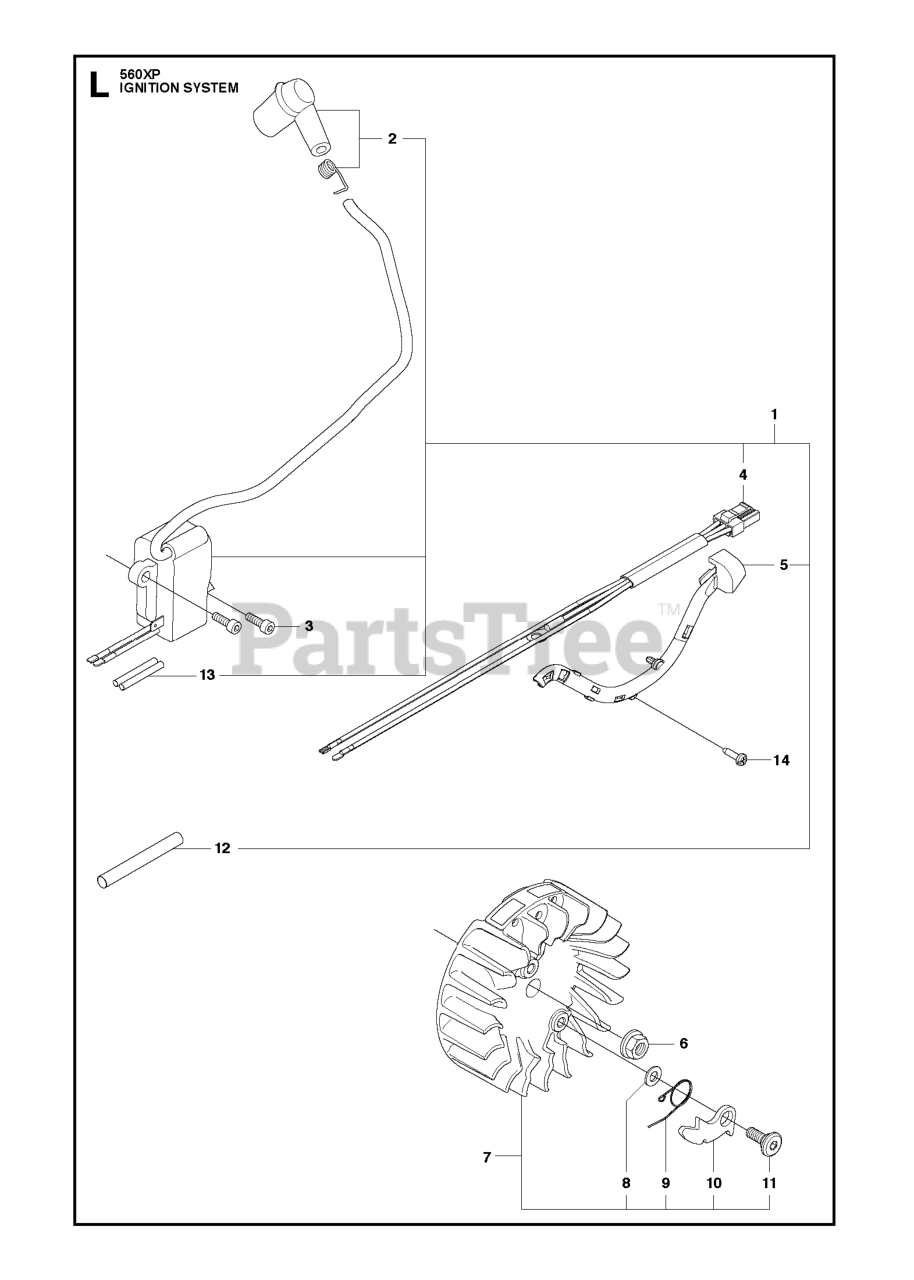

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 581723401

IGNITION MODULE ASSY
(Superseded to 581723402)

$148.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501485404

SPARK PLUG CAP ASSY

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 18

0

4

Husqvarna 577967601

WIRING ASSY
(Superseded to 577967602)

Note: . 1

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505178201

CABLE HOLDER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0

7

Husqvarna 504872401

FLYWHEEL ASSY
(Superseded to 504872403)

Note: XP

$265.99

$

Usually ships in 3-10 days

0

7

Husqvarna 504872402

FLYWHEEL ASSY

Note: XPG

$136.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503230042

WASHER

Note: . 7

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 501673501

SPRING

Note: . 7

$7.49

$

In Stock, Qty 10

0

10

Husqvarna 501673201

PAWL

Note: . 7

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501819901

SCREW M5X14

Note: . 7

$6.49

$

In Stock, Qty 6

0

12

Husqvarna 504043505

CABLE COVER

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503238501

SHRINK HOSE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0
