560 XP - Husqvarna Chainsaw (2013-01) HEATED HANDLES Parts Diagram

Chainsaw

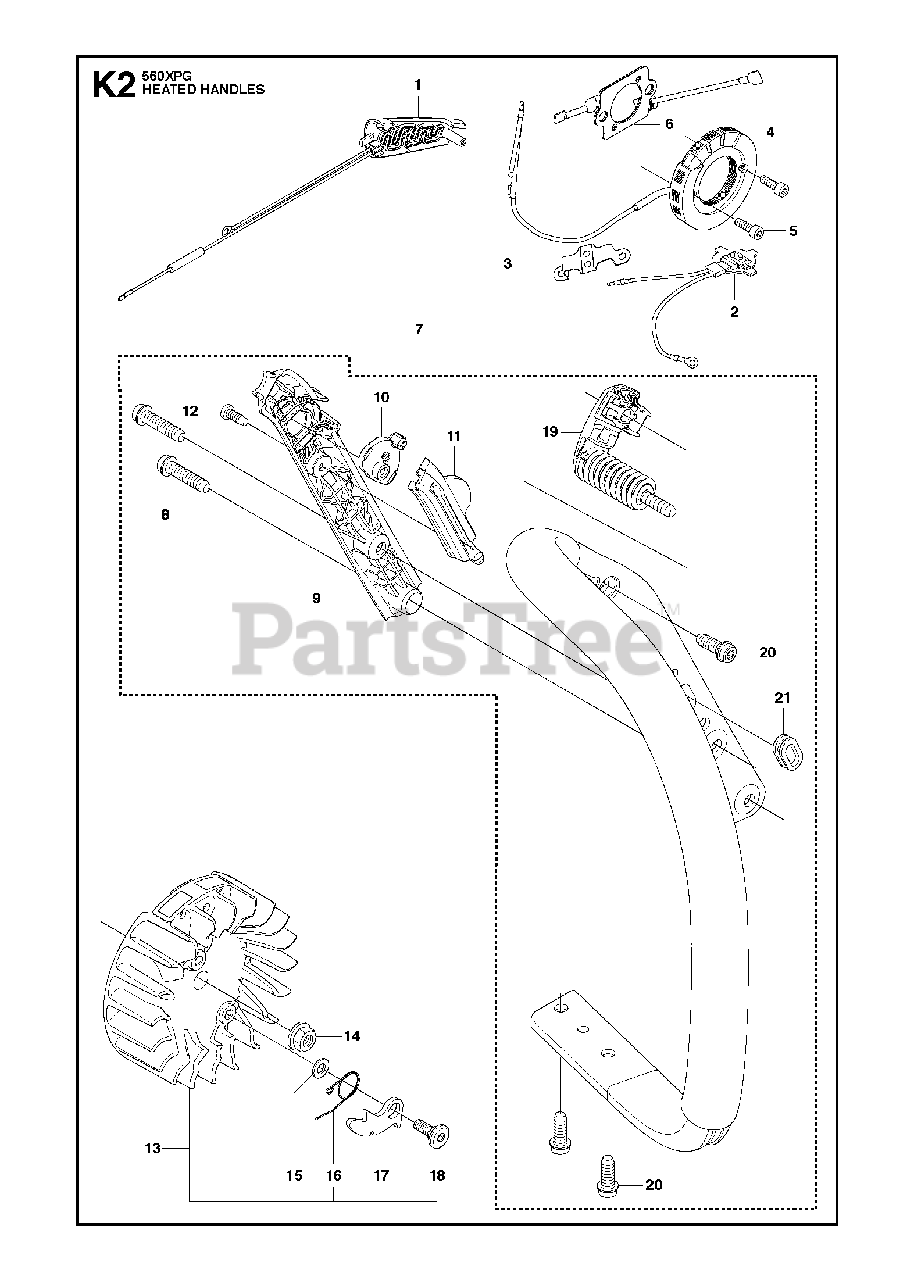

HEATED HANDLES Parts Diagram

  • Title

1

Husqvarna 522741901

HANDLE INSERT

$43.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522665801

THERMOSTAT ASSY

$106.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537210801

HOLDER

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 522611401

GENERATOR STATOR

$221.56

$

Usually ships in 3-10 days

0

5

Husqvarna 510020602

SCREW

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 522630101

FOIL ELEMENT

$54.23

$

Usually ships in 3-10 days

0

7

Husqvarna 575388902

FRONT HANDLE
(Superseded to 575388904)

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503218876

SCREW

Note: . 7

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 505157401

COVER

Note: . 7

$10.99

$

Usually ships in 3-10 days

0

10

Husqvarna 537252501

HANDLE

Note: . 7

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510097801

CONTACT PLATE

Note: . 7

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503212813

SCREW

Note: . 7

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 504872402

FLYWHEEL ASSY

$136.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503220401

NUT W/ WASHER

$7.49

$

In Stock, Qty 8

0

15

Husqvarna 503230042

WASHER

Note: . 13

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 501673501

SPRING

Note: . 13

$7.49

$

In Stock, Qty 10

0

17

Husqvarna 501673201

PAWL

Note: . 13

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 501819901

SCREW M5X14

Note: . 13

$6.49

$

In Stock, Qty 6

0

19

Husqvarna 505129702

ANTIVIBRATION ELEMENT
(Superseded to 505129705)

Note: . 7

$30.99

$

In Stock, only 1 left!

0

20

Husqvarna 503218872

SCREW IHSCFT

Note: . 7

$5.99

$

In Stock, Qty 7

0

21

Husqvarna 537088301

GROMMET

Note: . 7

$5.99

$

Usually ships in 3-10 days

0
