560 XP - Husqvarna Chainsaw (2013-01) CYLINDER PISTON Parts Diagram

Chainsaw

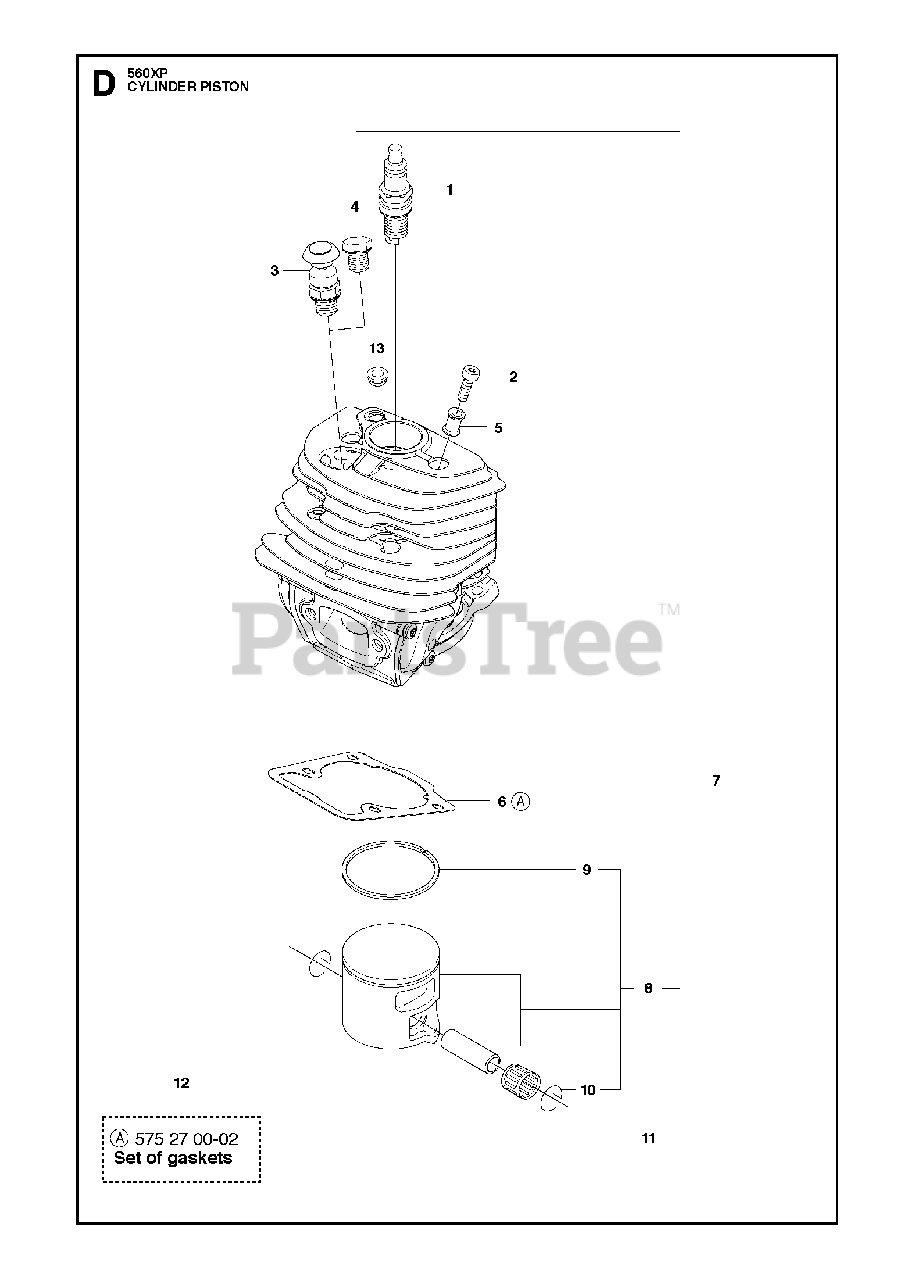

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 531008615

CMR6H NGK SPARK PLUG

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 575276901

DECOMPRESSION VALVE

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

5

Husqvarna 576717602

SLEEVE

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 510164901

GASKET

Note: . 12

$5.99

$

In Stock, Qty 6

0

7

Husqvarna 575355801

CYLINDER ASSY
(Superseded to 575355805)

$182.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505215502

PISTON ASSY
(Superseded to 584807806)

Note: . 7

$102.99

$

In Stock, only 1 left!

0

9

Husqvarna 505215701

PISTON RING

Note: . 8 7

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 737441000

LOCKING RING

Note: . 8 7

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 503256301

NEEDLE BEARING
(Superseded to 503256302)

Note: . 7

$24.99

$

In Stock, only 1 left!

0

12

Husqvarna 575270002

GASKET KIT
(Superseded to 575270003)

Note: A set of gaskets

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 520291101

BUSHING

Note: . 7

$5.99

$

Usually ships in 3-10 days

0
