560 XP - Husqvarna Chainsaw (2011-06) CLUTCH OIL PUMP Parts Diagram

Chainsaw

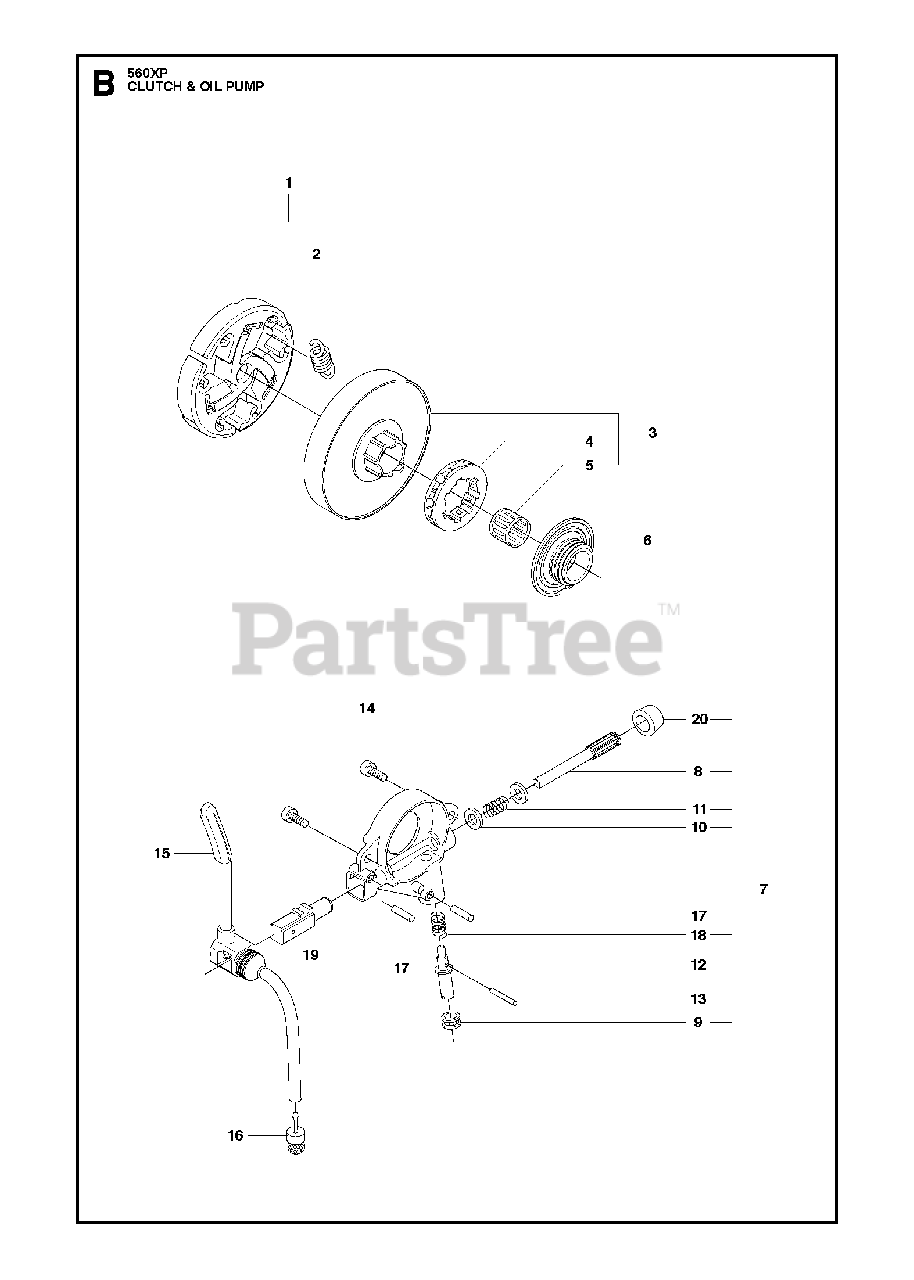

CLUTCH OIL PUMP Parts Diagram

  • Title
1

Husqvarna 574236101

CLUTCH ASSY
(Superseded to 574236102)

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537166901

SPRING

Note: . 1

$7.99

$

In Stock, only 3 left!

0

3

Husqvarna 575261001

RP CLUTCH DRUM ASSY
(Superseded to 575261005)

Note: 325 x7

$45.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575261002

CLUTCH DRUM ASSY
(Superseded to 575261006)

Note: 3 /8 x7

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: 325 x7. 3

$8.49

$

In Stock, Qty 8

0

4

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8 x7. 3

$8.49

$

In Stock, Qty 5

0

5

Husqvarna 503255201

NEEDLE BEARING

Note: . 3

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505200801

WORM WHEEL

$11.99

$

In Stock, only 1 left!

0

7

Husqvarna 505199902

OIL PUMP ASSY
(Superseded to 599231901)

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505200202

PUMP PISTON

Note: . 7

$22.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505200301

CASING

Note: . 7

$

$

Not available

10

Husqvarna 503230060

WASHER

Note: . 7

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 503891601

SPRING

Note: . 7

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 505201401

RP ADJUSTING SCREW
(Superseded to 505157001)

Note: . 7

$7.99

$

In Stock, only 1 left!

0

13

Husqvarna 721116430

PIN

Note: . 7

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 510020601

SCREW IHSCM
(Superseded to 526818101)

$6.49

$

In Stock, only 2 left!

0

15

$11.99

$

In Stock, only 1 left!

0

16

Husqvarna 504710003

OIL PLUMMET

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 720123300

PIN 3X10

Note: . 7

$3.49

$

In Stock, only 4 left!

0

18

Husqvarna 503891501

SPRING

Note: . 7

$6.49

$

In Stock, Qty 7

0

19

Husqvarna 505200101

PUMP CYLINDER

Note: . 7

$7.99

$

In Stock, only 2 left!

0

20

Husqvarna 503624902

SEALING PLUG

Note: . 7

$4.99

$

Usually ships in 3-10 days

0
