560 HST (954140060-A) - Husqvarna Walk-Behind Mower (1998-02) Rotary Lawn Mower (Part 1) Parts Diagram

Walk-Behind Mower

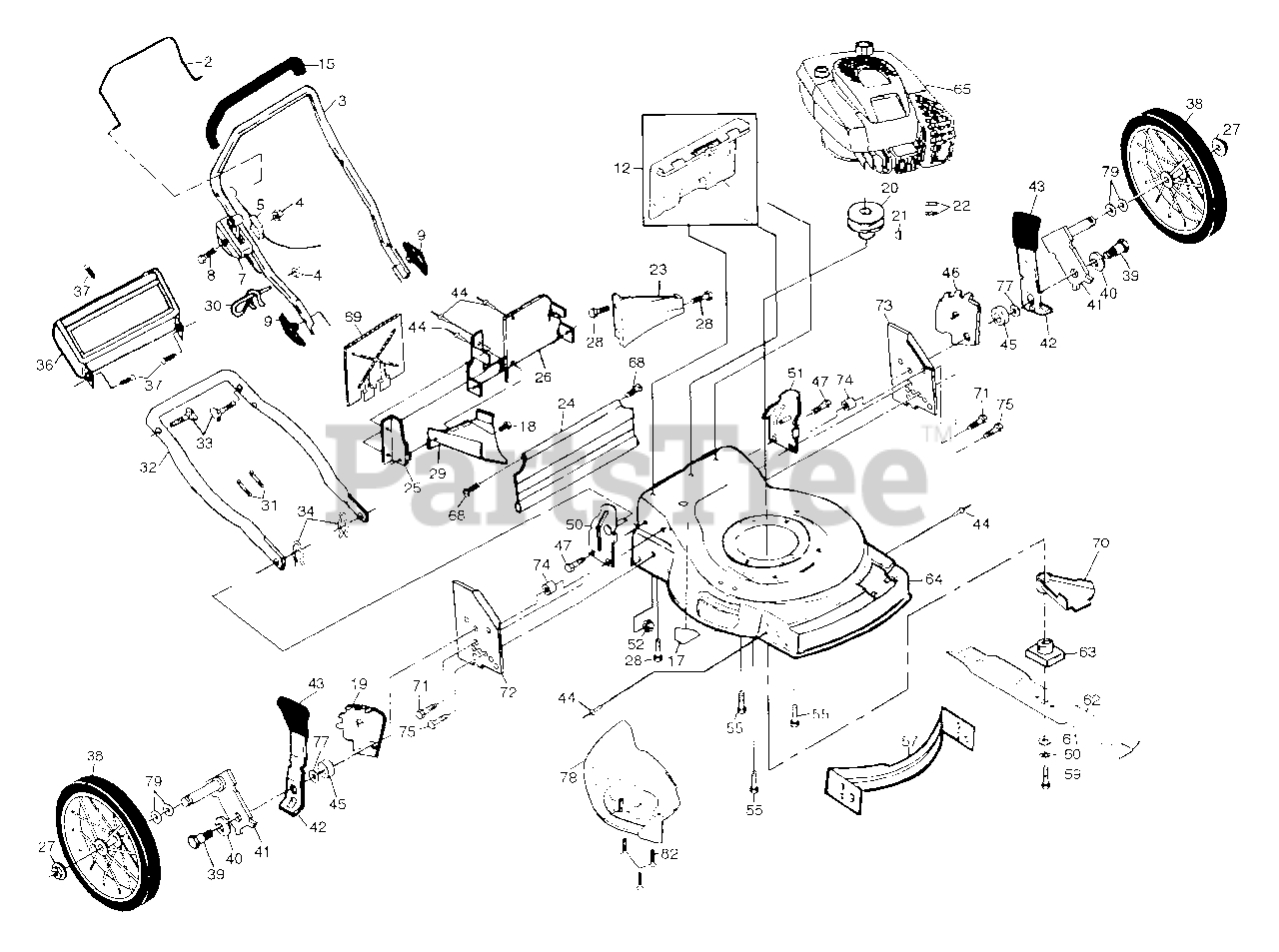

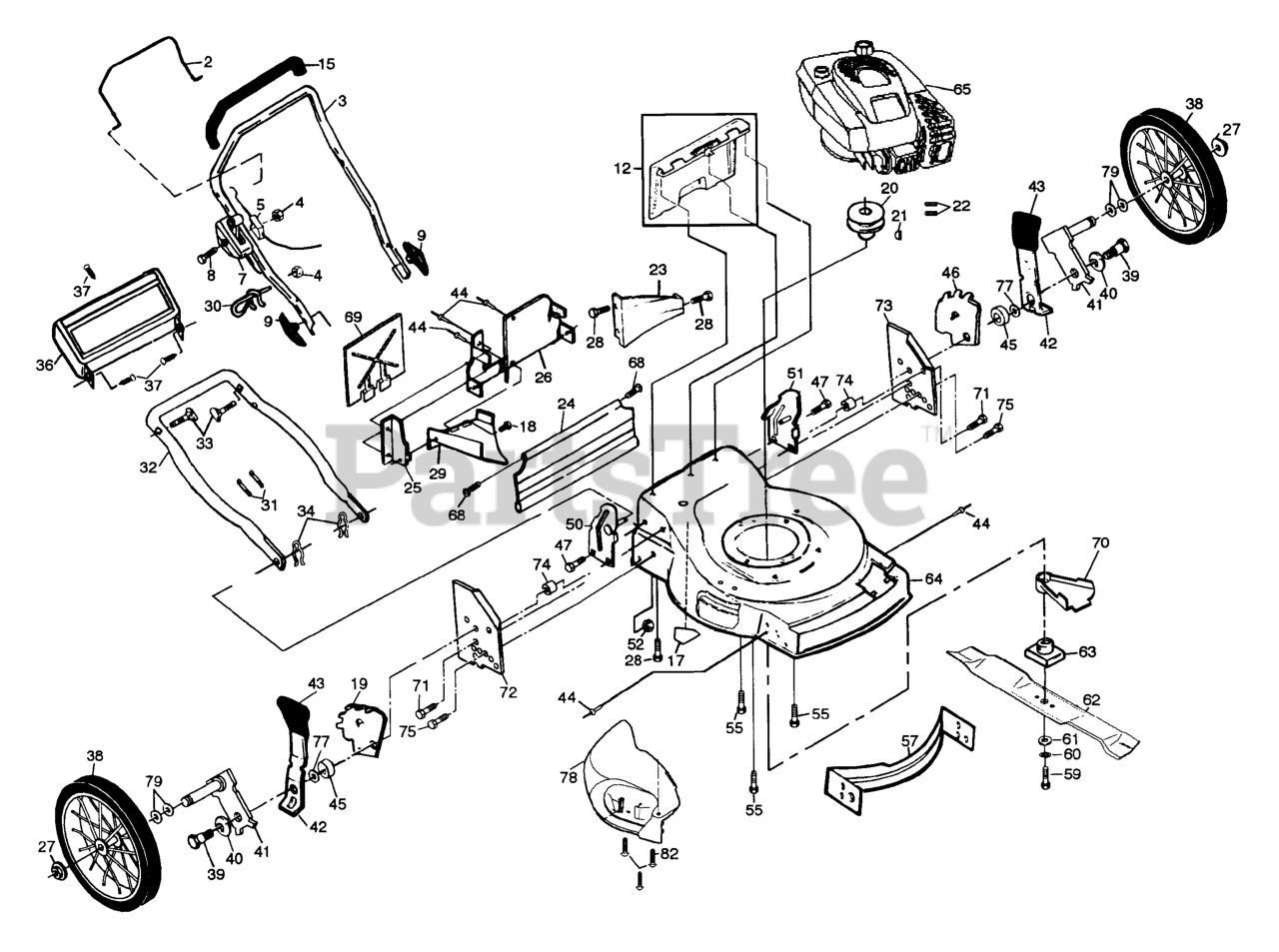

Rotary Lawn Mower (Part 1) Parts Diagram

  • Title

2

Husqvarna 532146900

Control Bar

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532131815

Upper Handle
(Superseded to 532166267)

$

$

Not available

4

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532851671

Engine Zone Control Cable

$

$

Not available

7

Husqvarna 532158059

Throttle Control

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

12

Husqvarna 532151023

Rear Door Kit

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532155890

Handle Grip
(Superseded to 585161003)

$

$

Not available

17

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532150050

Screw

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 532800368

Wheel Adjusting Bracket

$

$

Not available

20

Husqvarna 532085543

Engine Pulley
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

21

Husqvarna 532087677

Hi Pro Key #505

$

$

Not available

22

Husqvarna 532059708

Set Screw 1/4-20 x 5/16

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532148941

Rear Baffle
(Superseded to 532140661)

$

$

Not available

24

Husqvarna 532140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532138860

Side Baffle

$

$

Not available

26

Husqvarna 532162456

Back Plate
(Superseded to 532156374)

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532054583

Screw Hex Head 1/4-20 x 1/2

$

$

Not available

29

Husqvarna 532125376

Discharge Baffle
(Superseded to 532133190)

$

$

Not available

30

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

31

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532157082

Lower Handle
(Superseded to 532157081)

$

$

Not available

33

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

34

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532157070

Trim Plate Assembly

$

$

Not available

37

Husqvarna 532701477

Push-in Fastener

$

$

Not available

38

Husqvarna 532088017

Wheel & Tire Assembly
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Husqvarna 532061651

Spring Washer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

41

Husqvarna 532125323

Axle Arm
(Superseded to 532751333)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

44

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

46

Husqvarna 532800370

Wheel Adjusting Bracket
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532150078

Self-tapping Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532154324

Handle Bracket (Right)
(Superseded to 532151511)

$6.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532154325

Handle Bracket (Left)

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532138871

Front Baffle
(Superseded to 532170031)

$

$

Not available

59

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532850263

Helical Lock Washer
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

61

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

62

Husqvarna 532141114

Blade 22"

$28.99

$

In Stock, only 1 left!

0

63

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

64

Husqvarna 532162286

Lawn Mower Housing Kit

Note: (Includes Key No. 17)

$

$

Not available

65

Engine Tecumseh OVR M60

$

$

Not available

68

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 532125368

Mulcher Plate
(Superseded to 532166649)

$

$

Not available

70

Husqvarna 532134612

Debris Shield
(Superseded to 532048283)

$

$

Not available

71

Husqvarna 532149588

Thread Cutting Screw 5/16 - 18 x 1-1/5

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532151947

Support Bracket (RH)

$

$

Not available

73

Husqvarna 532154687

Support Bracket (LH)
(Superseded to 532700172)

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532086969

Spacer

$

$

Not available

75

Husqvarna 874760612

Bolt

$4.99

$

In Stock, only 3 left!

0

77

Husqvarna 532088348

Flat Washer

$7.49

$

In Stock, Qty 6

0

78

Husqvarna 532162358

Combi-cut Door

$

$

Not available

79

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

82

Husqvarna 532141841

Screw

$7.49

$

In Stock, only 2 left!

0

Husqvarna 532162368

Owner's Manual

$

$

Not available
