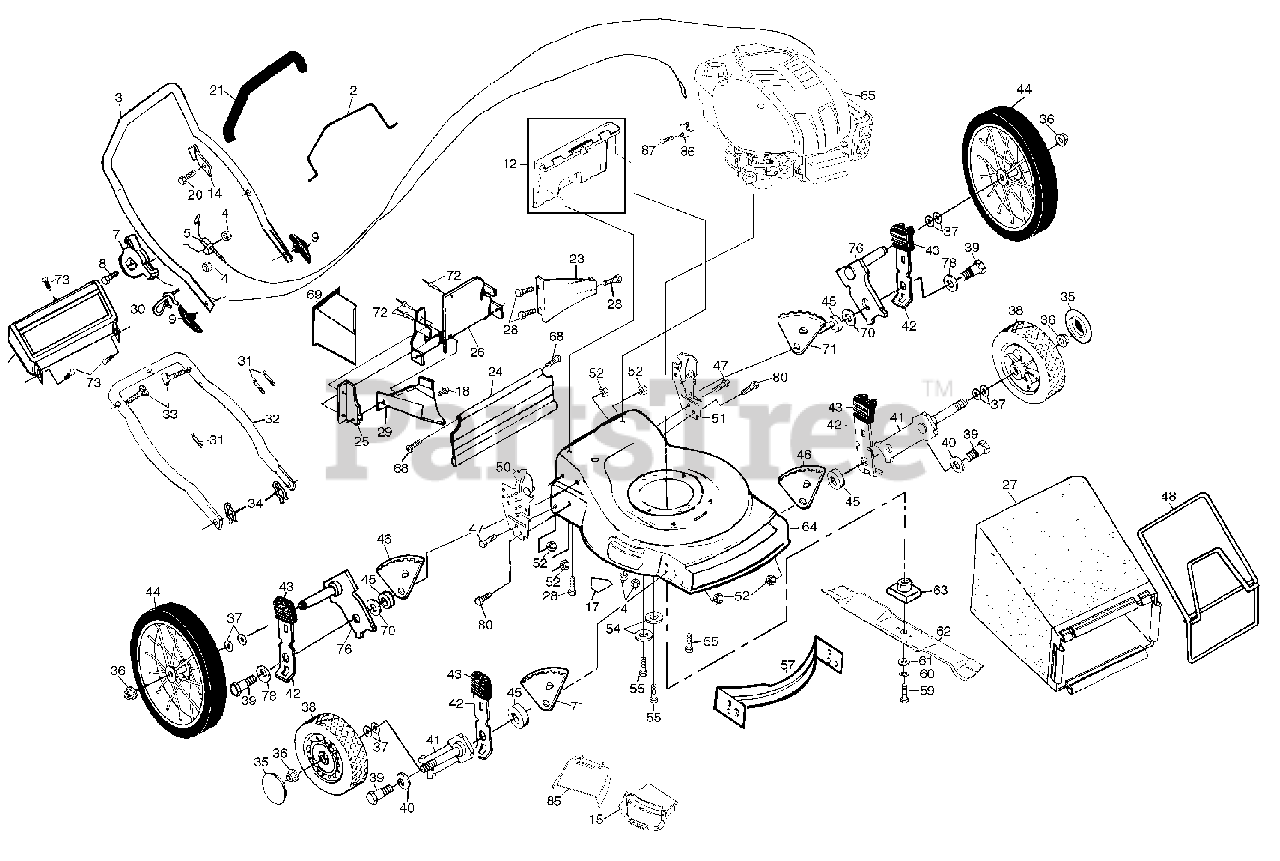

560 H (954140055-E) - Husqvarna Walk-Behind Mower (1999-12) Rotary Lawn Mower Parts Diagram

Walk-Behind Mower

Rotary Lawn Mower Parts Diagram

  • Title

2

Husqvarna 532850735

Control Bar

$

$

Not available

3

Husqvarna 532166267

Upper Handle

$

$

Not available

4

Husqvarna 532063601

Locknut
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532130861

Engine Zone Control Cable

$

$

Not available

7

Husqvarna 532166971

Throttle Control
(Superseded to 532182157)

$

$

Not available

8

Husqvarna 532144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532158755)

$

$

Not available

9

Husqvarna 532136376

Handle Knob
(Superseded to 532183724)

$

$

Not available

12

Husqvarna 532151023

Rear Door Kit

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532125162

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532150757

Combi-Cut Mulcher
(Superseded to 532150756)

$30.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532150050

Screw

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 532750097

Hex Washer Head Screw #10-24
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Husqvarna 532164265

Handle Grip
(Superseded to 585161003)

$

$

Not available

22

Husqvarna 532157070

Trim Plate

$

$

Not available

23

Husqvarna 532125348

Rear Baffle
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532138860

Side Baffle

$

$

Not available

26

Husqvarna 532166800

Back Plate

$

$

Not available

27

Husqvarna 532800386

Grass Bag
(Superseded to 532134048)

$

$

Not available

28

Husqvarna 532054583

Screw Hex Head 1/4-20 x 1/2

$

$

Not available

29

Husqvarna 532125376

Discharge Baffle
(Superseded to 532133190)

$

$

Not available

30

Husqvarna 532132001

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

31

Husqvarna 532066426

Wire Ties
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532157082

Lower Handle
(Superseded to 532157081)

$

$

Not available

33

Husqvarna 532131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

34

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532157008

Hubcap

$

$

Not available

36

Husqvarna 532083923

Flanged Locknut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

38

Husqvarna 532750550

Wheel & Tire Assembly (Front)

$34.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532142748

Shoulder Bolt
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

40

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532151254

Axle Arm
(Superseded to 532145937)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532125066

Selector Spring

$6.49

$

In Stock, only 1 left!

0

43

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

44

Husqvarna 532088017

Wheel & Tire Assembly (Rear)
(Superseded to 532752063)

$84.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

46

Husqvarna 532800368

Wheel Adjusting Bracket R. R.

$

$

Not available

47

Husqvarna 532150078

Self-tapping Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532088614

Catcher Frame

$54.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532162353

Handle Bracket (Right)
(Superseded to 532161812)

$

$

Not available

51

Husqvarna 532162354

Handle Bracket (Left)
(Superseded to 532161814)

$9.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532125078

Washer

$5.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532170557

Front Baffle

$34.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532850263

Helical Lock Washer
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

62

Husqvarna 532141114

Blade 22"

$28.99

$

In Stock, only 1 left!

0

63

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

64

Husqvarna 532170609

Lawn Mower Housing Kit

Note: (Includes Key No. 17)

$

$

Not available

65

Engine - Briggs and Stratton Model No. 121602-0175-E1

$

$

Not available

68

Husqvarna 532088652

Hinge Screw

$7.49

$

In Stock, only 2 left!

0

69

Husqvarna 532166649

Mulcher Plug

$

$

Not available

70

Husqvarna 532088348

Flat Washer

$7.49

$

In Stock, Qty 6

0

71

Husqvarna 532800370

Wheel Adjusting Bracket L. R.
(Superseded to 532140058)

$6.49

$

Usually ships in 3-10 days

0

72

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532701477

Push-in Fastener

$

$

Not available

76

Husqvarna 532125323

Axle Arm Assembly
(Superseded to 532751333)

$3.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532061651

Spacer
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

80

Husqvarna 874760612

Screw

$4.99

$

In Stock, only 1 left!

0

85

Husqvarna 532150653

Clip on Guard
(Superseded to 532145285)

$

$

Not available

86

Husqvarna 532111190

Cable Clamp

$

$

Not available

87

Husqvarna 532083816

Screw

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 532162300

Warning Decal
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532173074

Owner's Manual

$

$

Currently unavailable
