560 B (129-560B100) - Cub Cadet Walk-Behind Mower (1989) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

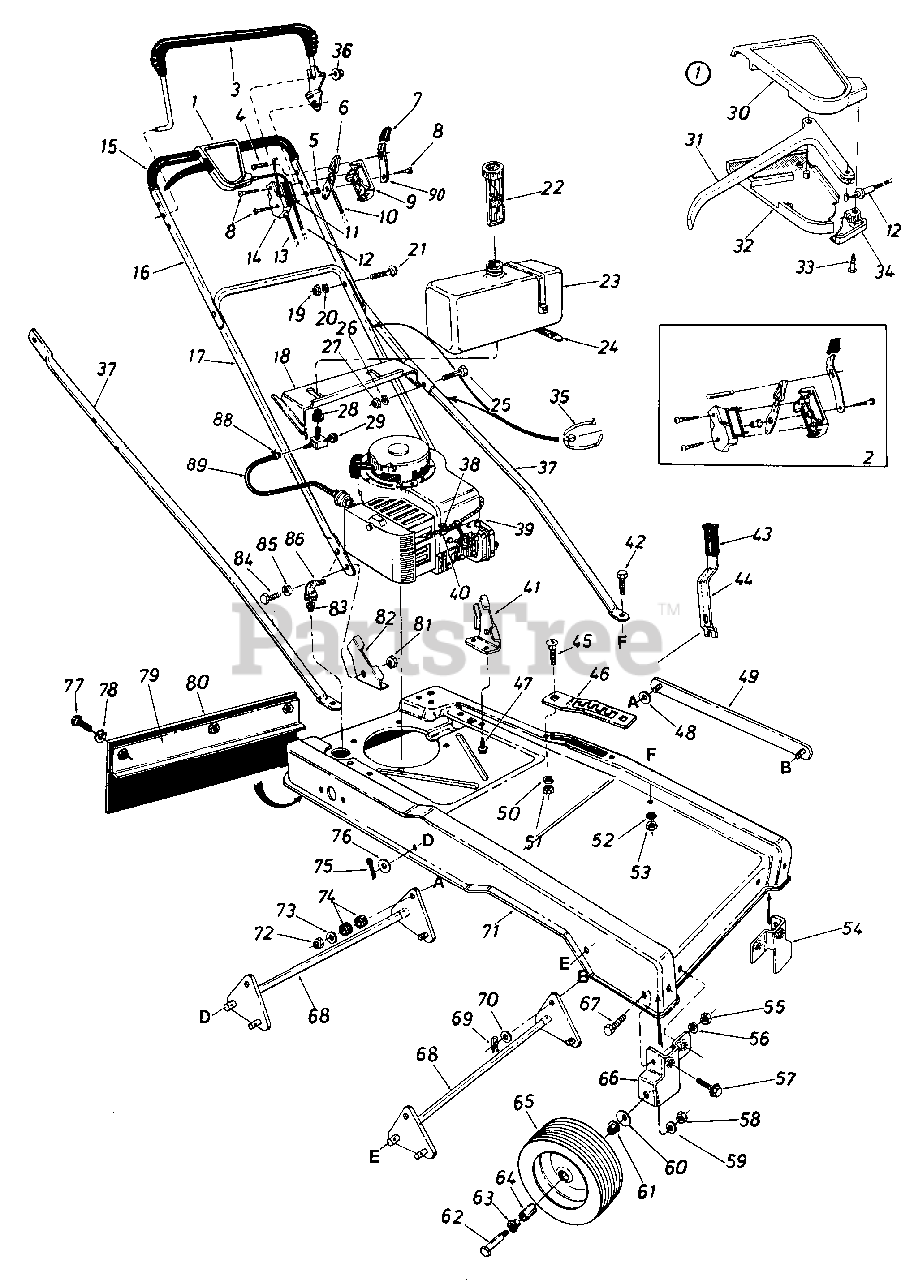

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 736-0362

WASHER-FL .322 ID x 1.25 x .060

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet 753-0431

KIT-THROTTLE CONTROL

$

$

Not available

3

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

4

Cub Cadet 731-0607

PIN-LOCKING

$

$

Not available

5

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

6

Cub Cadet 731-0528A

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

7

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

9

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

10

Cub Cadet 746-0631

WIRE-CONTROL
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

11

Cub Cadet 777-5772

LABEL

Note: Throttle

$

$

Currently unavailable

12

Cub Cadet 746-0650

CABLE-CLUTCH x 50.0
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 746-0405

CABLE-CLUTCH
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

15

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

16

Cub Cadet 749-0439A

HANDLE-UPPER
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

17

Cub Cadet 749-0504C

HANDLE-LOWER PAINTED
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

18

Cub Cadet 14426

BRACKET-GAS TANK MTG

$

$

Not available

19

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0262

BOLT-CARRIAGE 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

22

Cub Cadet 723-0155

GAUGE-GAS

$

$

Not available

23

Cub Cadet 751-0225

TANK-GAS

$

$

Not available

24

Cub Cadet 726-0209

TIE-CABLE
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-0158

SCREW-HEX 5/16-24 x 1.25
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 16

0

26

Cub Cadet 736-0199

WASHER-FL-.344ID x .75OD x .250 SP

$

$

Currently unavailable

26

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 735-0149

BUSHING
(Superseded to 935-0149)

Note: Gas Tank

$2.99

$

In Stock, Qty 20+

0

29

Cub Cadet 751-0171

VALVE-SHUT OFF
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

30

Cub Cadet 731-0617A

COVER-HALF-CONTROL

$

$

Not available

31

Cub Cadet 731-0620

LEVER-CONTROL
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

32

Cub Cadet 731-0618A

COVER-HALF CONT-LWR
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

33

Cub Cadet 710-0841

SCREW-FL C-SUNK AB

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 731-0619A

CAP-CABLE MTG

$

$

Not available

35

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 726-0245

CAP-PUSH

$

$

Not available

37

Cub Cadet 749-0697A

STRUT-43.44 IN LG

$

$

Currently unavailable

38

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

39

Note: Engine--5 H.P.

$

$

Not available

40

Cub Cadet 751-0442

CLAMP-CASING

$

$

Not available

41

Cub Cadet 12577

BRACKET-HANDLE MTG

$

$

Currently unavailable

42

Cub Cadet 710-0118

SCREW-HEX 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 720-0142

GRIP-FL BAR-END

Note: Black

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 15342

HANDLE-LIFT

$

$

Not available

45

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 16507

BRACKET-SUPPORT

$

$

Not available

47

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 736-0235

WASHER-FL-.406ID 1.25OD X.157/.172
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

49

Cub Cadet 736-0235

WASHER-FL-.406ID 1.25OD X.157/.172
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

50

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 10293

BRACKET ASSY-WHL-LH

$

$

Currently unavailable

55

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

58

Cub Cadet 712-0375

NUT-HEX CENTER L-3/8-16

$4.49

$

In Stock, Qty 6

0

59

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 736-0105

WASHER-BELL .400 ID x .88 x .060

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 741-0267

BEARING-FLANGE

$

$

Not available

62

Cub Cadet 710-0427

SCREW-HEX 3/8-16 x 2.00
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 741-0484

BEARING-BALL
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

64

Cub Cadet 750-0434

SPACER

$6.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 734-1259

BRACKET ASSY-WHL-RH

$

$

Not available

66

Cub Cadet 10294

BRACKET ASSY-WHL-RH

$

$

Currently unavailable

67

Cub Cadet 710-0198

SCREW-HEX SEMS 5/16-18 x .75
(Superseded to 910-0198)

$

$

Not available

68

Cub Cadet 16497

SHAFT ASSY-LIFT BRKT

$

$

Not available

69

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0300

WASHER-FL-.385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 16505

FRAME-HI WHEEL

Note: Color Code 499

$

$

Currently unavailable

72

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

73

Cub Cadet 736-0300

WASHER-FL-.385 ID x .87 OD x .06

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 735-0126

WASHER-RUBBER
(Superseded to 735-0126A)

$

$

Not available

75

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA x 1.00

$3.99

$

In Stock, only 2 left!

0

76

Cub Cadet 736-0272

WASHER-FL .510 x .995 x .060

$4.99

$

In Stock, Qty 20+

0

77

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

79

Cub Cadet 16563A

STRIP ASSY RETAINING

$

$

Not available

80

Cub Cadet 731-0811

FLAP-RR

$

$

Not available

81

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

82

Cub Cadet 12578

BRACKET-HANDLE MTG

$

$

Not available

83

Note: Part of Engine

$

$

Not available

84

Cub Cadet 710-0216

SCREW-HEX 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

85

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

86

Cub Cadet 737-0125

ELBOW-90

$

$

Not available

88

Cub Cadet 726-0207

CLAMP-HOSE

$

$

Not available

89

Cub Cadet 751-0173-15

Note: Fuel Line 15" Lg.

$

$

Currently unavailable

90

Cub Cadet 732-0401

SPRING-LOCKOUT

$

$

Not available
