560 B (120-560B100) - Cub Cadet Walk-Behind Mower Engine (1990) B&S 5 HP 130702-0131-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

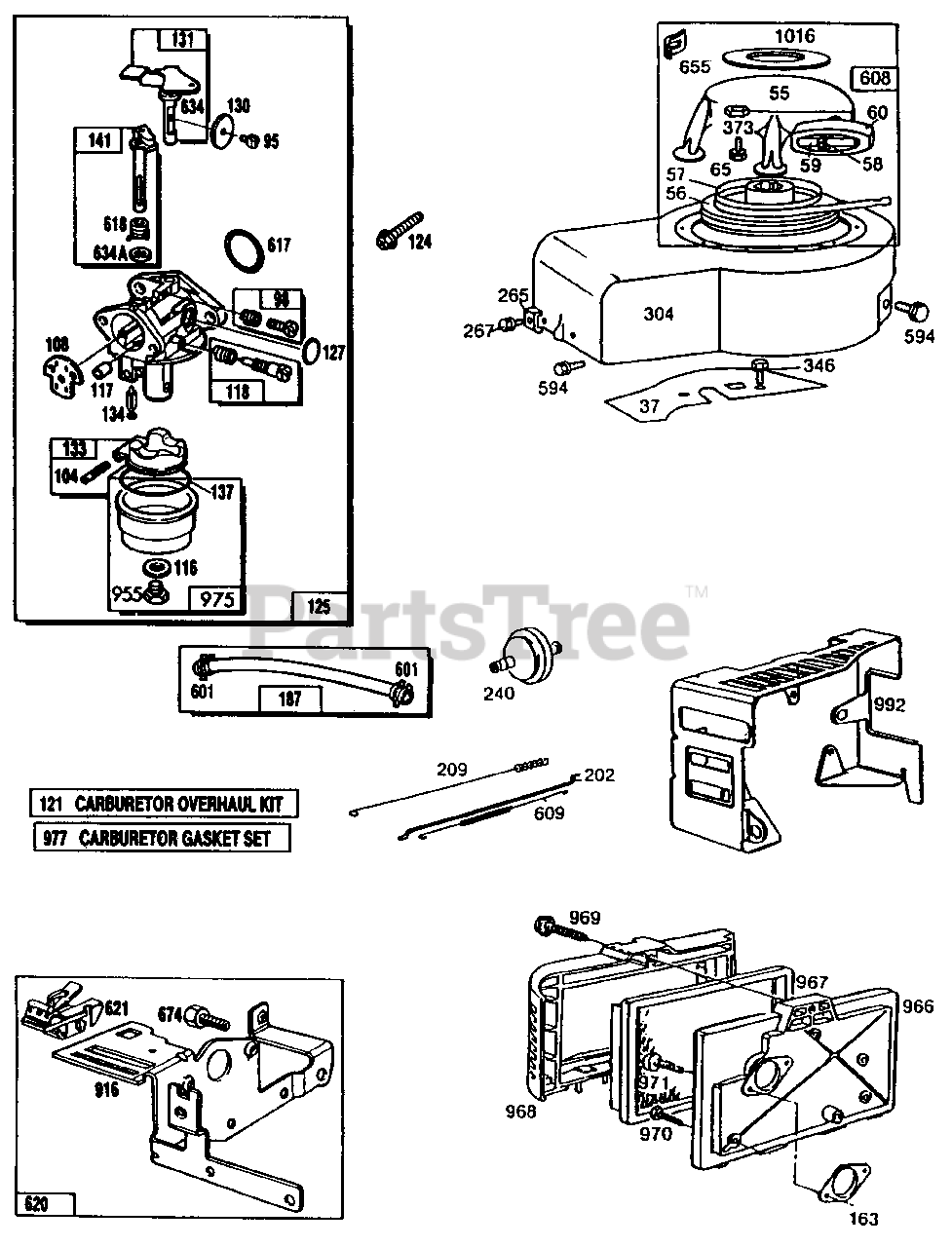

B&S 5 HP 130702-0131-01 Part 2 Parts Diagram

  • Title
37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley-Rewind Starter

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

In Stock, only 1 left!

0

59

Cub Cadet BS-230228

Pin-Starter Rope

$

$

Not available

60

Cub Cadet BS-66728

Grip-Starter Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 12

0

65

Cub Cadet BS-93067

Screw-Stamped Steel Rewind Starter Housing Mounting

$

$

Currently unavailable

95

Cub Cadet BS-94098

Screw-Throttle Valve to Shaft Sem
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

108

Cub Cadet BS-223471

Valve-Choke
(Superseded to BS-691182)

$9.49

$

Usually ships in 2-12 days

0

116

Gasket-Sealing

$

$

Not available

117

Jet

$

$

Not available

118

Cub Cadet BS-398670

Valve and Spring-Needle

$

$

Not available

121

Cub Cadet BS-492072

Carburetor Overhaul Kit
(Superseded to BS-494349)

$20.99

$

In Stock, only 1 left!

0

124

Cub Cadet BS-94119

Screw-Carburetor Mtg.

$

$

Currently unavailable

125

Cub Cadet BS-490886

Carburetor Assembly

$82.99

$

Usually ships in 2-12 days

0

127

Plug-Welch

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-398184

Shaft and Lever-Throttle

$

$

Not available

133

Cub Cadet BS-398187

Float Ass'y.-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

$

$

Not available

141

Cub Cadet BS-398186

Shaft-Choke

$10.99

$

In Stock, only 1 left!

0

163

Cub Cadet BS-271840

Gasket-Air Cleaner

$

$

Not available

187

$11.99

$

Usually ships in 2-12 days

0

202

Cub Cadet BS-262273

Link-Throttle

$

$

Currently unavailable

209

Cub Cadet BS-260711

Spring-Governor

$11.99

$

In Stock, only 2 left!

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

265

Cub Cadet BS-221535

Clamp-Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

267

Cub Cadet BS-93686

Screw-Clamp Mtg.

$

$

Currently unavailable

304

Cub Cadet BS-490887

Housing-Blower

$

$

Not available

346

Cub Cadet BS-93705

Screw-Hex. Hd.
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

373

Cub Cadet BS-92987

Nut-Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

594

Cub Cadet BS-93559

Screw-Blower Housing Mounting Sem

$

$

Not available

601

Cub Cadet BS-93053

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-390463

Starter Ass'y.-Rewind

$

$

Not available

609

Cub Cadet BS-260029

Spring-Throttle Link

$11.99

$

Usually ships in 2-12 days

0

617

Cub Cadet BS-270344

Seal-Intake Elbow Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-262035

Spring-Choke Return

$6.49

$

Usually ships in 2-12 days

0

620

Cub Cadet BS-490195

Plate Ass'y.-Remote Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Washer-Throttle Shaft

$

$

Not available

634A

Seat-Choke Shaft

$

$

Not available

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

674

Cub Cadet BS-94117

Screw-Bracket Mounting

$

$

Not available

916

$8.49

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw-Bowl Mtg.

$

$

Currently unavailable

966

Cub Cadet BS-399038

Base-Air Cleaner

$

$

Not available

967

Cub Cadet BS-397795

Filter-Air

$

$

Not available

968

Cub Cadet BS-280501

Cover-Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94173

Screw-Cover Mounting
(Superseded to BS-690670)

$5.99

$

In Stock, Qty 5

0

970

Cub Cadet BS-94118

Screw-Hex Head

$

$

Not available

971

Cub Cadet BS-94121

Screw-Air Cleaner
(Superseded to BS-692523)

$7.49

$

In Stock, only 2 left!

0

975

Cub Cadet BS-398191

Bowl Ass'y.-Carburetor

$

$

Not available

977

Cub Cadet BS-490937

Gasket Set-Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

992

Cub Cadet BS-223801

Shroud-Air Cleaner

$

$

Currently unavailable

1016

$9.49

$

In Stock, Qty 5

0
