560 (25A-560A190) - White Outdoor Edger (1999) General Assembly Parts Diagram

Edger

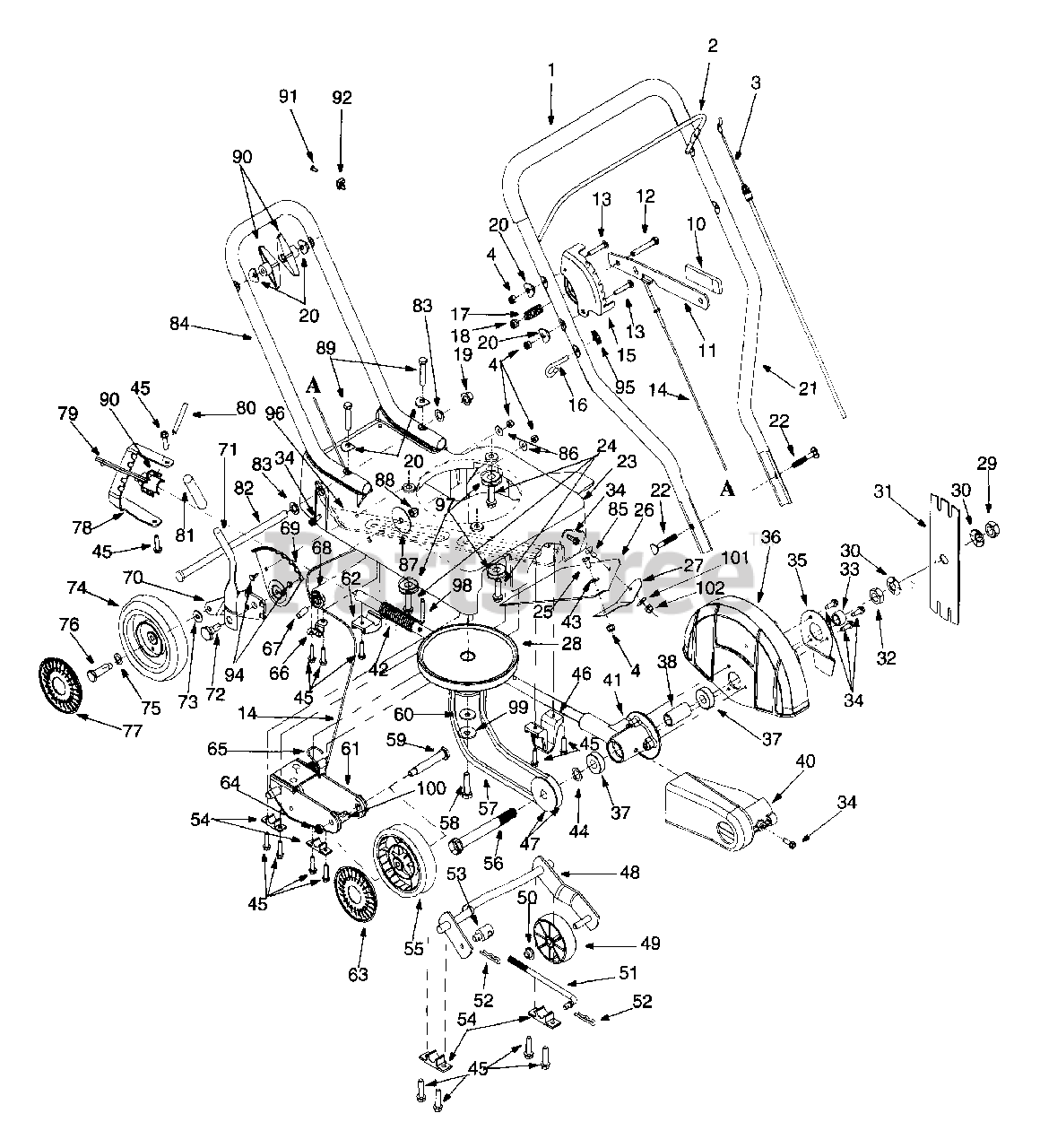

General Assembly Parts Diagram

  • Title

1

White Outdoor 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

2

White Outdoor 747-0976

Blade Control Handle
(Superseded to 747-0976B)

Variations

White Outdoor 747-0976-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

3

White Outdoor 746-0965

Control Cable 34" B&S
(Superseded to 946-0965)

$

$

Not available

4

White Outdoor 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

10

White Outdoor 720-0142

Depth Lever Grip

$3.99

$

Usually ships in 3-6 days

0

11

White Outdoor 781-0742

Depth Lever
(Superseded to 781-0742-0637)

Variations

White Outdoor 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0116

Hex Screw 5/16-18 x 2.0 Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0578

Thrust Screw 1/4-20 x 1.5

$4.49

$

Usually ships in 3-6 days

0

14

White Outdoor 746-1094

Depth Cable

$42.99

$

Usually ships in 3-6 days

0

15

White Outdoor 781-0741

Depth Bracket

$

$

Not available

16

White Outdoor 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 732-0369

Compression Spring .550 O.D. x 1.3
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

18

White Outdoor 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0451

Washer .320 ID x .93 O.D.

$4.49

$

In Stock, Qty 11

0

21

White Outdoor 749-1225

Upper Handle
(Superseded to 749-1225-0637)

Variations

White Outdoor 749-1225-0637

HANDLE UPPER 28.5" - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0 Lg.

$7.49

$

In Stock, Qty 20+

0

23

White Outdoor 631-0079

Edger Base Ass'y

$

$

Not available

24

White Outdoor 710-0502A

Tapp Screw w/Hex Lock Wash 3/8-16

$6.99

$

In Stock, only 2 left!

0

25

White Outdoor 710-3013

Hex Screw 1/4-20 x .50 Lg.

$4.99

$

In Stock, Qty 11

0

26

White Outdoor 731-1935

Discharge Shield Deflector

$

$

Not available

27

White Outdoor 781-0746

Deflector Keeper

$

$

Not available

28

White Outdoor 756-1150

Engine Pulley
(Superseded to 756-1150A)

$163.99

$

Usually ships in 3-6 days

0

29

White Outdoor 712-0413

Hex Jam Nut 5/8-18

$6.49

$

In Stock, only 1 left!

0

30

White Outdoor 736-0317

Bell Washer .63 I.D. x 1.25 O.D. x .18

$7.99

$

In Stock, Qty 20+

0

31

White Outdoor 781-0080

Standard Blade
(Superseded to 781-0080-0637)

Variations

White Outdoor 781-0080-0637

Edger Blade, 5/8 Hl - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

White Outdoor 781-0713

Cross-Cut Blade

$

$

Not available

White Outdoor 781-0748

Tri-Star Blade

Variations

White Outdoor 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

32

White Outdoor 712-0318

Hex Jam Nut 5/8-18

$3.49

$

In Stock, Qty 12

0

33

White Outdoor 750-1163

Spacer .628 x .875 x .545 Lg.

$

$

Not available

34

White Outdoor 710-0642

Hx Scr. w/Wash.: TT: 1/4-20 x .750 Lg.

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 781-0740

Blade Guide

Variations

White Outdoor 781-0740-0637

No Longer Available GUIDE BLADE - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 731-1942

Blade Guard

$

$

Not available

37

White Outdoor 741-0155

Ball Bearing .62 I.D. x 1.38 O.D. x .4
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

38

White Outdoor 750-1158

Spacer .628 x .875 x 1.818 Lg.

$

$

Not available

40

White Outdoor 731-1939

Belt Guard

$

$

Not available

41

719-0387

Spindle w/Insert

$

$

Not available

42

White Outdoor 732-0862

Compression Spring

$

$

Not available

43

White Outdoor 736-0342

Flat Washer .283 I.D. x .75 O.D. x .030

$7.49

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0116

Flat Washer .635 I.D. x .93 O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

45

White Outdoor 710-1241

Hex Screw w/Wash 1/4

$6.99

$

In Stock, Qty 16

0

46

White Outdoor 731-1929

Front Rod Handler

$

$

Not available

47

White Outdoor 756-0449

Pulley
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

48

White Outdoor 681-0140

Curb Whl Bracket Ass'y

Variations

White Outdoor 681-0140-0637

No Longer Available BRACKET ASM. CURB - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 731-1932

Curb Roller

$

$

Not available

50

White Outdoor 726-0100

Push Cap

$4.49

$

In Stock, Qty 18

0

51

White Outdoor 747-0991

Rod 5/16-24

$

$

Not available

52

White Outdoor 714-0104

Cotter Pin .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 711-1171

Ferrule 5/16-24 x .312

$

$

Not available

54

White Outdoor 731-1931

Black Bushing .515 Dia. x .62

$

$

Not available

55

White Outdoor 734-1869

Wheel 7 x 2

$

$

Not available

56

White Outdoor 710-1627

Hex Bolt 5/8-18 x 5.25 Lg.

$

$

Not available

57

White Outdoor 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

58

White Outdoor 710-0191

Hex Screw: 3/8-24 x 1.50 Lg.

$4.99

$

In Stock, Qty 9

0

59

White Outdoor 738-0481

Shoulder Screw .500 x 2.62: 3/8-16
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

60

White Outdoor 736-0320

Flat Washer .38 OD x 1.38 OD

$6.99

$

In Stock, Qty 7

0

61

White Outdoor 681-0141

Front Wheel Brkt Ass'y.

$

$

Not available

62

White Outdoor 731-1930

Rear Rod Handler

$

$

Not available

63

White Outdoor 731-1887

Hubcap: Spoke w/Hole Grey

$11.99

$

Usually ships in 3-6 days

0

64

White Outdoor 712-3020

Jam Lock Nut 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

65

White Outdoor 732-0867

Torsion Spring

$

$

Not available

66

White Outdoor 781-0747

Cable Keeper

Variations

White Outdoor 781-0747-0637

KEEPER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

67

White Outdoor 747-0993

Idler Rod

$

$

Not available

68

White Outdoor 756-0625

Cable Roller Pulley

$9.49

$

In Stock, Qty 14

0

69

White Outdoor 781-0745

Index Plate
(Superseded to 781-0783)

$

$

Not available

70

White Outdoor 781-0744

Pivot Arm

$

$

Not available

71

White Outdoor 732-0866

Spring Lever

$

$

Not available

72

White Outdoor 738-0507B

Shoulder Bolt .500 x .434 Lg.

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 736-0105

Bell Wash. .401 ID. x .870 OD. x .063

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 734-1978

Wheel 8 x 2

$48.99

$

Usually ships in 3-6 days

0

75

White Outdoor 736-0504

Wave Washer .510 I.D. x .750 O.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

76

White Outdoor 738-0102

Shoulder Bolt .498 x 1.445: 3/8-16

$9.99

$

In Stock, Qty 10

0

77

White Outdoor 731-0981A

Hubcap: Radial Spoke Grey
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

78

White Outdoor 781-0749

Tilt Bracket

$

$

Not available

79

White Outdoor 681-0139

Adj. Lever Ass'y

$

$

Not available

80

White Outdoor 715-0121

Pin 1/4 x 2.0" Lg.

$6.99

$

In Stock, Qty 8

0

81

White Outdoor 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

82

White Outdoor 711-1278

Curb Axle

$

$

Not available

83

White Outdoor 736-3068

Flat Wash. .531 I.D. x .875 O.D. x .06

$6.99

$

In Stock, only 2 left!

0

84

White Outdoor 749-1078

Lower Handle

Variations

White Outdoor 749-1078-0637

No Longer Available HANDLE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

86

White Outdoor 736-0211

Flat Wash. .285 ID x 1.25 OD x .06

$6.99

$

In Stock, only 3 left!

0

87

White Outdoor 736-3040

Flat Wash. .406 ID x 1.92 OD x .06

$6.49

$

In Stock, Qty 6

0

88

White Outdoor 712-3020

Hex Lock Nut 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

89

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75 Lg.

$5.49

$

In Stock, Qty 20+

0

90

White Outdoor 732-0188A

Torsion Spring

$12.99

$

In Stock, Qty 9

0

90

White Outdoor 720-0241

Wing Knob Nut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

91

White Outdoor 710-1237

Hex Scr. w/Wash.: T: #10-32 x .625 Lg.

$4.49

$

Usually ships in 3-6 days

0

White Outdoor 710-0871

Hex Scr. #10-32 x .38 Lg.

$

$

Not available

92

White Outdoor 751B213146

Clamp B&S Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

White Outdoor 7510007775

Clamp Tec. Throttle
(Superseded to TC-27793)

$1.99

$

In Stock, only 2 left!

0

94

White Outdoor 710-1637

Screw Std. 1/4-20 x .75 Lg.

$

$

Not available

95

White Outdoor 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

96

White Outdoor 781-0758A

Base Support

Variations

White Outdoor 781-0758A-0637

No Longer Available SUPPORT EDGER BASE - POWDER BLACK (0637)

$

$

Not available

$

$

97

White Outdoor 736-0258

Flat Washer

$4.49

$

In Stock, only 4 left!

0

98

White Outdoor 715-0143

Roll Pin

$4.99

$

In Stock, Qty 10

0

99

White Outdoor 736-0452

Bell Washer .396 ID x 1.14 OD

$4.99

$

In Stock, Qty 5

0

100

White Outdoor 750-1179

Spacer .520 ID x .860 Lg.

$

$

Not available

101

White Outdoor 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

102

White Outdoor 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

777D00299

WOP Hub Cap w/Icon

Note: Labels

$

$

Not available

777D02265

Edger Engine 560

Note: Labels

$

$

Not available

White Outdoor 777S30021

Blade Guard Cover

Note: Labels

$

$

Not available

777S30022

Belt Guard Cover

Note: Labels

$

$

Not available

777S30244

Blade Guard Danger

Note: Labels

$

$

Not available

White Outdoor 777I20102

Blade Depth Control

Note: Labels

$8.49

$

Usually ships in 3-6 days

0

White Outdoor 777I20103

Blade Tilt Control

Note: Labels

$

$

Not available

777I20122

Start Instructions / Model Plate

Note: Labels

$

$

Not available
