560 (190-560-100) - Cub Cadet Grass Catcher (1990) att Grass Catcher Parts Diagram

Grass Catcher

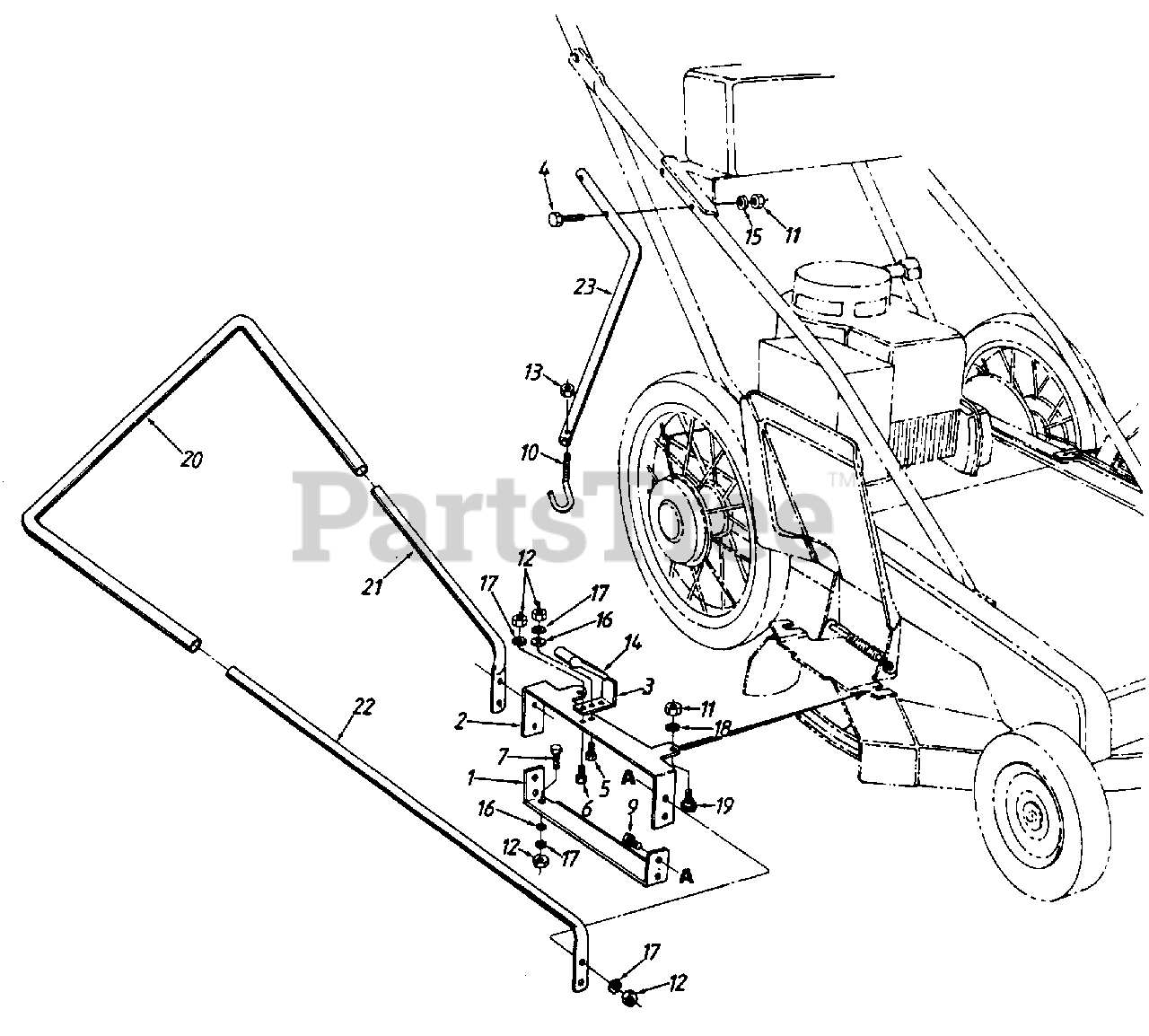

Grass Catcher Parts Diagram

  • Title

1

Cub Cadet 11702

SUPPORT-LOWER

$

$

Not available

2

Cub Cadet 11703

SUPPORT-UPPER

$

$

Not available

3

Cub Cadet 11707

BRACKET-HANDLE

$

$

Not available

4

Cub Cadet 710-0116

SCREW-HEX 5/16-18 X 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0252

SCREW-HEX 1/4-20 X .75
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0106

SCREW-HEX 1/4-20 X 1.25

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet 711-0576

HOOK-CHAIN

$

$

Not available

11

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.99

$

In Stock, Qty 16

0

14

Cub Cadet 720-0142

GRIP-FL BAR-END

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0222

WASHER-EXTERN L 1/4

$5.99

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0607

WASHER-EXTERN L 5/16

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-0141

SCREW-SHLD .437 DIA X .350
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

20

Cub Cadet 749-0728

FRAME-UPPER

$

$

Currently unavailable

21

Cub Cadet 749-0729

FRAME-LOWER

$

$

Not available

22

Cub Cadet 749-0730

FRAME-ARM-LOWER

$

$

Not available

23

Cub Cadet 749-0731

ARM-HOLDING

$

$

Not available

Cub Cadet 764-0241

BAG-GRASS

Note: (Not Shown)

$

$

Currently unavailable
