560 (190-560-100) - Cub Cadet Grass Catcher (1989) att Grass Catcher Parts Diagram

Grass Catcher

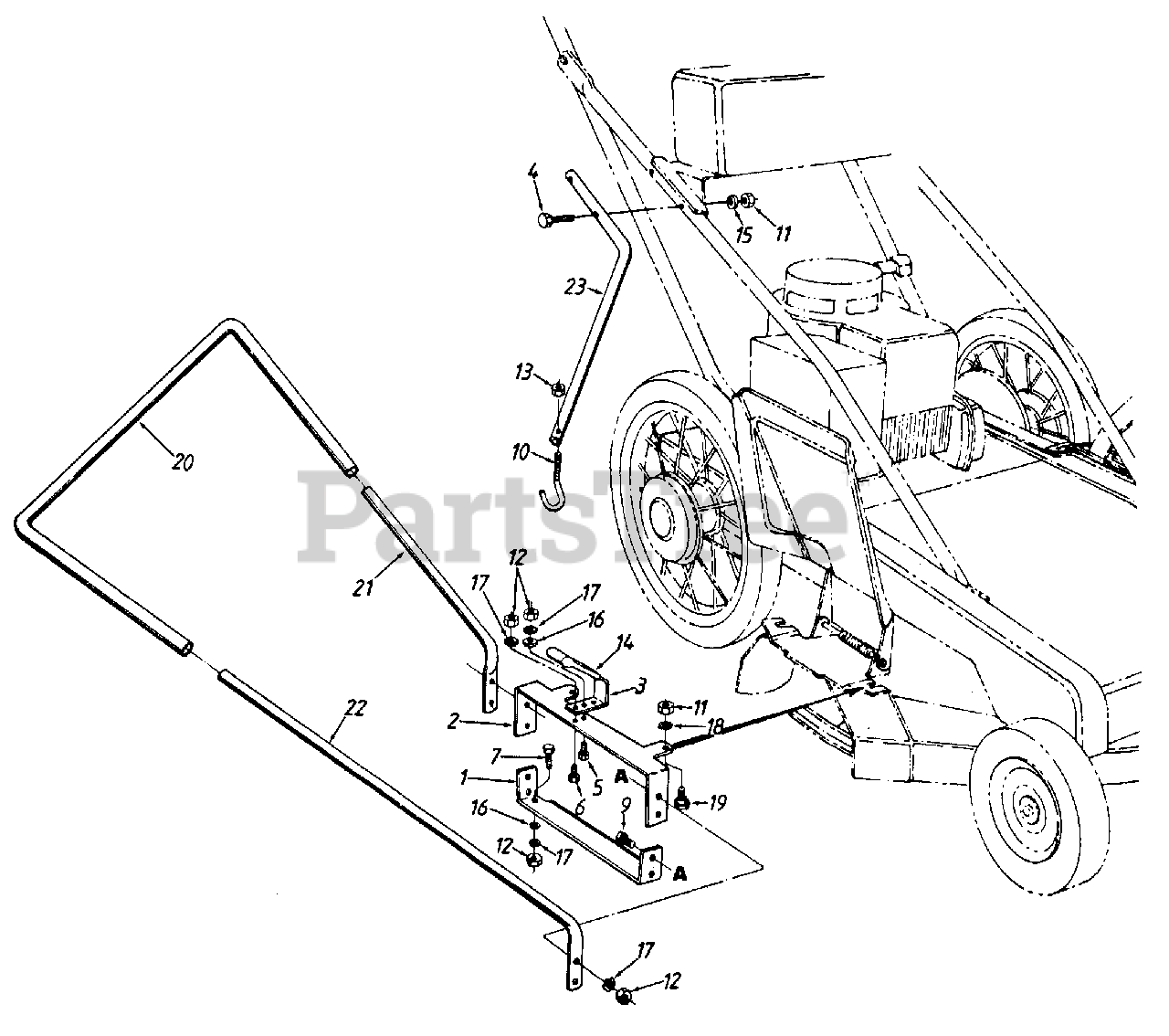

Grass Catcher Parts Diagram

  • Title

1

Cub Cadet 11702

Lower Opening Support

$

$

Not available

2

Cub Cadet 11703

Upper Opening Support

$

$

Not available

3

Cub Cadet 11707

Handle

$

$

Not available

4

Cub Cadet 710-0116

Hex Bolt 5/16-18 x 2" Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 711-0576

Hook

$

$

Not available

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0324

Hex Ins. Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

14

Cub Cadet 720-0142

Grip

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-0141

Shoulder Bolt
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

20

Cub Cadet 749-0728

Upper Frame

$

$

Currently unavailable

21

Cub Cadet 749-0729

Lower Frame

$

$

Not available

22

Cub Cadet 749-0730

Lower Frame Arm

$

$

Not available

23

Cub Cadet 749-0731

Holding Arm

$

$

Not available

Cub Cadet 764-0241

Grass Bag

Note: (Not Shown)

$

$

Currently unavailable
