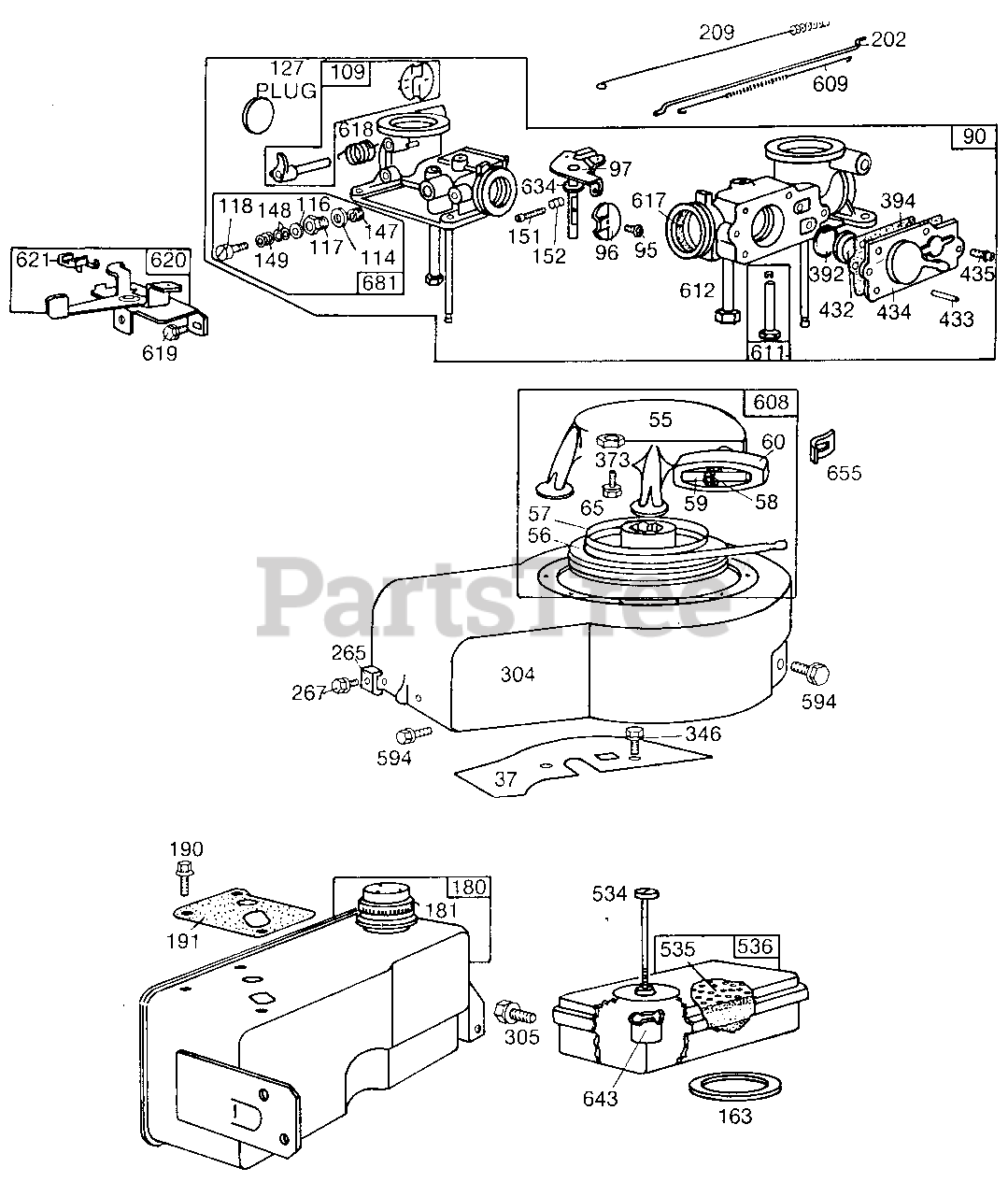

560 (127-560-100) - Cub Cadet Walk-Behind Mower Engine (1987) B&S 5.0 HP-130902-1224-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

B&S 5.0 HP-130902-1224-01 Part 2 Parts Diagram

  • Title
37

Cub Cadet BS-222443

Guard-Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley-Rewind Starter

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-294303

Spring-Rewind Starter
(Superseded to BS-490179)

$

$

Not available

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-230228

Pin-Starter Rope

$

$

Not available

60

Cub Cadet BS-66728

Grip-Starter Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 10

0

65

Cub Cadet BS-93067

Screw-Stamped Steel Rewind Starter Housing Mounting

$

$

Currently unavailable

90

Cub Cadet BS-396748

Carburetor Assembly

$

$

Currently unavailable

95

Cub Cadet BS-93499

Screw-Throttle Valve to Shaft Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-211237

Valve-Throttle

$

$

Currently unavailable

97

Cub Cadet BS-299692

Shaft and Lever-Throttle

$

$

Currently unavailable

109

Cub Cadet BS-396753

Shaft, Lever and Valve- Choke

$

$

Not available

114

Cub Cadet BS-66594

Gasket-Needle Valve Nut

$

$

Currently unavailable

116

Cub Cadet BS-65978

Packing-Needle Valve

$5.99

$

In Stock, only 3 left!

0

117

Cub Cadet BS-230590

Nut-Needle Valve

$

$

Not available

118

Cub Cadet BS-23433

Valve-Needle

$

$

Not available

127

Cub Cadet BS-22831

Plug-Welch

$

$

Not available

147

Cub Cadet BS-230591

Seat-Needle Valve

$

$

Not available

148

Cub Cadet BS-22235

Washer-Needle Valve

$

$

Not available

149

Cub Cadet BS-26336

Spring-Needle Valve

$

$

Not available

151

Cub Cadet BS-93527

Screw-Machine, Rd.Hd.- 5-40 x 5/8"

$

$

Not available

152

Cub Cadet BS-260575

Spring-Throttle Adjustment

$

$

Currently unavailable

163

Cub Cadet BS-271139

Gasket-Air Cleaner

$

$

Not available

180

Cub Cadet BS-297257

Tank Assembly-Fuel

$

$

Not available

181

Cub Cadet BS-394818

Cap-Fuel Tank
(Superseded to BS-394818S)

$33.99

$

In Stock, only 1 left!

0

190

Cub Cadet BS-93440

Screw-Fuel Tank Mounting

$

$

Not available

191

Cub Cadet BS-270073

Gasket-Fuel Tank Mounting

Note: (Included in Gasket Set-Part No. 297616)

$4.99

$

In Stock, only 3 left!

0

202

Cub Cadet BS-260654

Link-Throttle

$

$

Not available

209

Cub Cadet BS-260711

Spring-Governor

$11.99

$

In Stock, only 2 left!

0

265

Cub Cadet BS-22372

Clamp-Casing

$4.49

$

In Stock, only 4 left!

0

267

Cub Cadet BS-93469

Screw-Clamp Mounting

$

$

Not available

304

Cub Cadet BS-392277

Housing-Blower

$

$

Not available

305

Cub Cadet BS-93158

Screw-Tank Bracket Mounting Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw-Hex Hd.
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

373

Cub Cadet BS-92987

Nut-Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

392

Cub Cadet BS-260455

Spring-Fuel Pump Diaphragm

$4.49

$

In Stock, Qty 7

0

394

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap-Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin-Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-210959

Cover-Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw-Diaphragm Cover

$

$

Not available

534

Cub Cadet BS-94071

Screw-Air Cleaner

$

$

Not available

535

Cub Cadet BS-270447

Element-Air Cleaner

$11.99

$

In Stock, Qty 8

0

536

Cub Cadet BS-397182

Cleaner Assembly-Air

$

$

Currently unavailable

594

Cub Cadet BS-93559

Screw-Blower Housing Mounting Sem

$

$

Not available

608

Cub Cadet BS-390463

Starter Assembly-Rewind

$

$

Not available

609

Cub Cadet BS-260029

Spring-Throttle Link

$11.99

$

Usually ships in 2-12 days

0

611

Cub Cadet BS-391813

Fuel Pipe and Clip Assembly

$

$

Not available

612

Cub Cadet BS-296811

Pipe-Fuel (Plastic)

$

$

Not available

617

Cub Cadet BS-280393

Seal-Intake Elbow Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-260648

Spring-Choke Return

$8.99

$

Usually ships in 2-12 days

0

619

Cub Cadet BS-93380

Screw-Control Plate Mounting

$

$

Currently unavailable

620

Cub Cadet BS-391091

Plate Assembly Remote Carburetor Control

$36.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Cub Cadet BS-271853

Washer-Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

643

Cub Cadet BS-280374

Cup-Air Cleaner

$7.49

$

Usually ships in 2-12 days

0

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

681

Cub Cadet BS-299060

Needle Valve Kit

$21.99

$

In Stock, only 2 left!

0
